Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

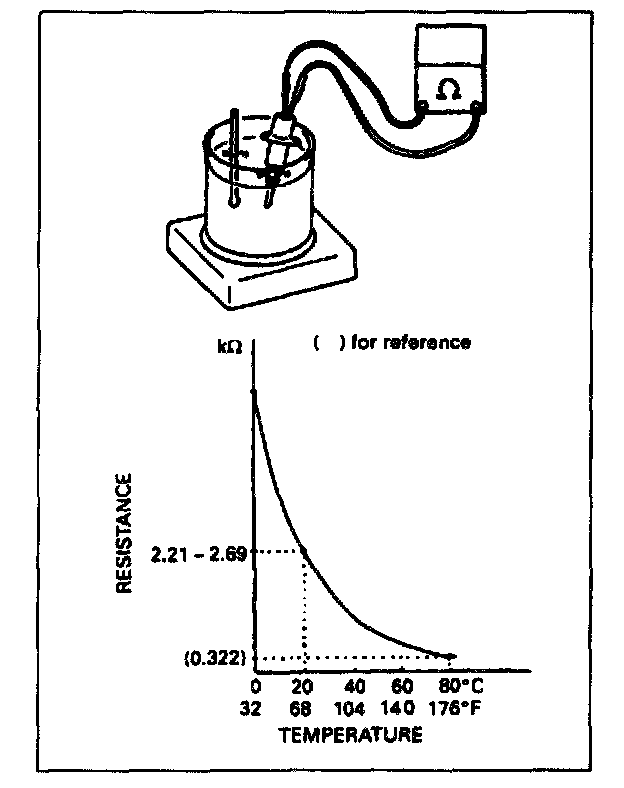

INTAKE AIR TEMPERATURE (IAT SENSOR)INSPECTIONImmerse temperature sensing part of IAT sensor in water (or ice) and measure resistance between sensor terminals while heating water gradually.
If measured resistance doesn't show such characteristic as shown in figure, replace IAT sensor.
