Engine Basic Check

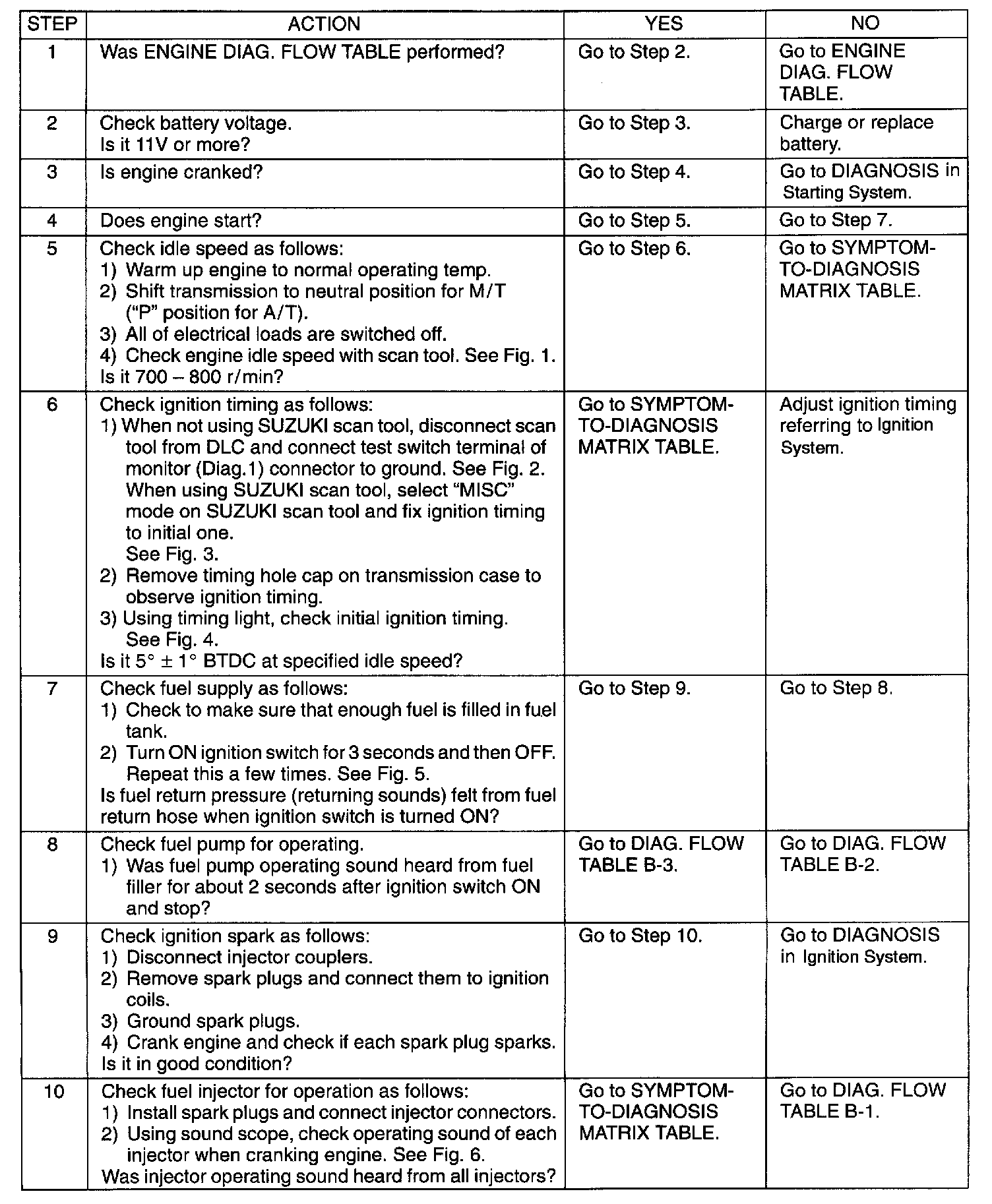

Step 1 - 10:

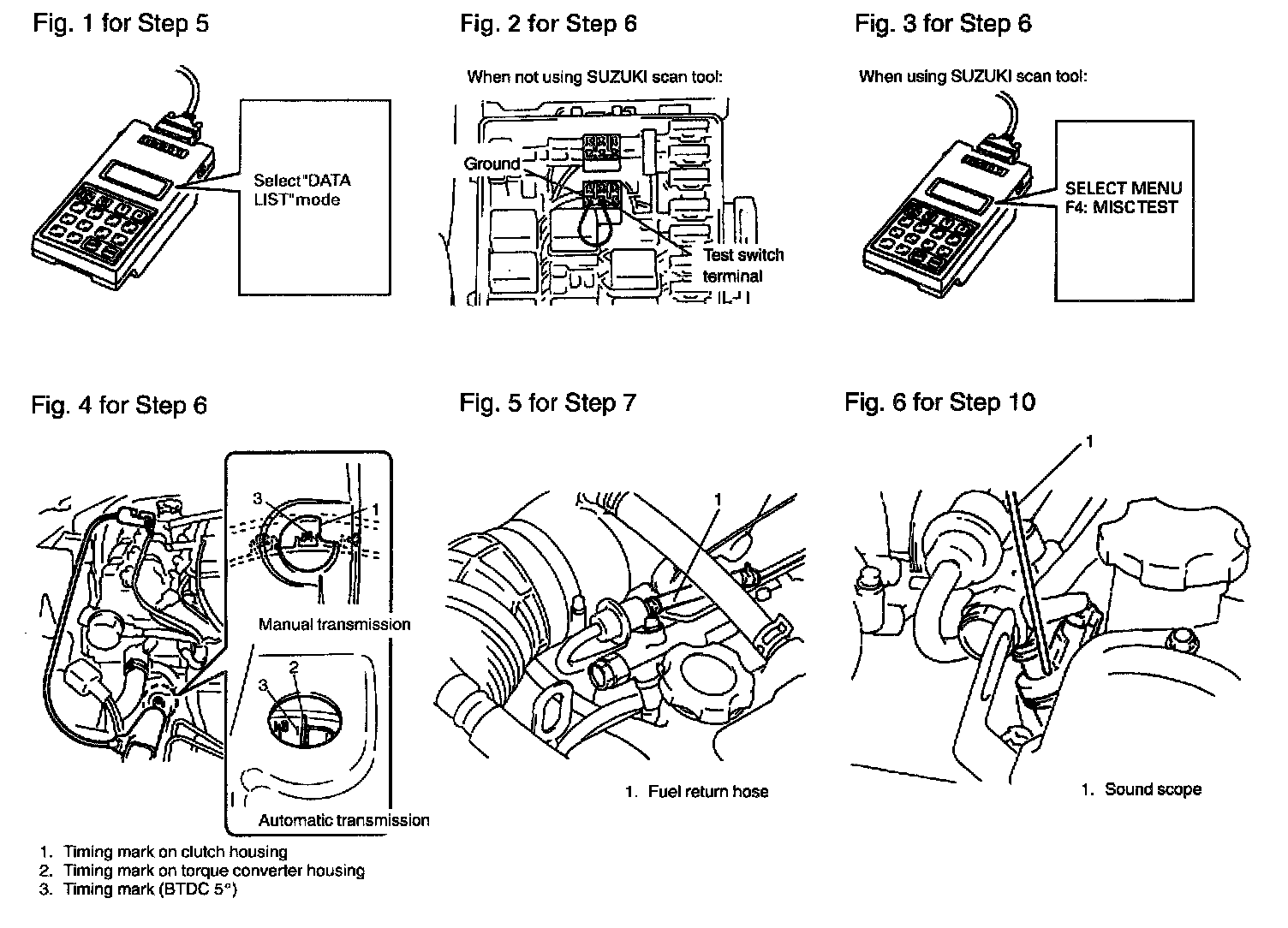

Figure 1, 2, 3, 4, 5, 6 For Steps 5, 6, 7 And 10:

This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in visual inspection.

Follow the flow table carefully.
