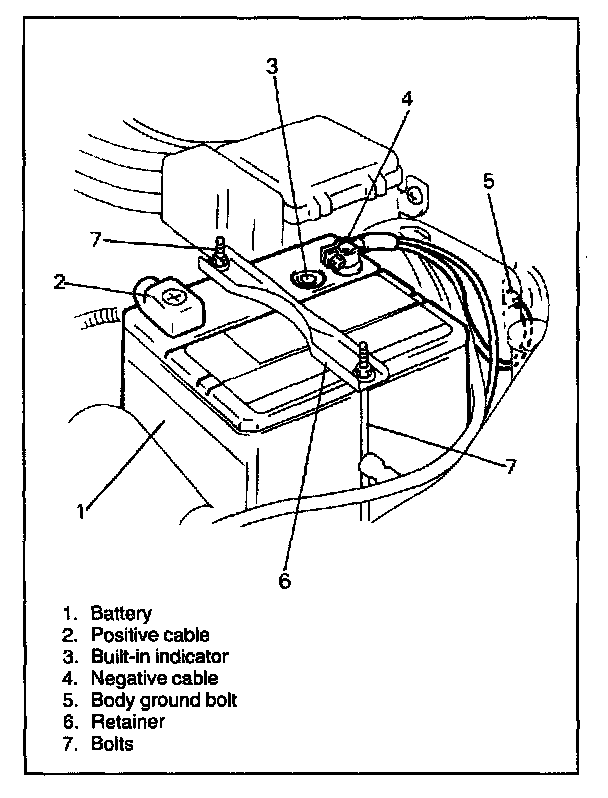

Removal and Installation
DISMOUNTING 1.
Disconnect negative cable.
2.
Disconnect positive cable.
3.
Remove retainer.
4.
Remove battery.
REMOUNTING 1.
Reverse removal procedure.
2.
Torque battery cables to specification.
NOTE: Check to be sure that ground cable has enough clearance to hood panel by terminal.

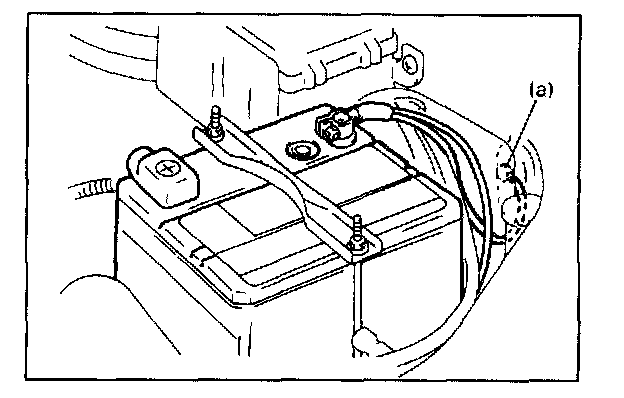

Tightening Torque
a:
8 N.m (0.8 kg-m, 6.0 lb-ft)
