Removal and Installation
REMOVAL 1.

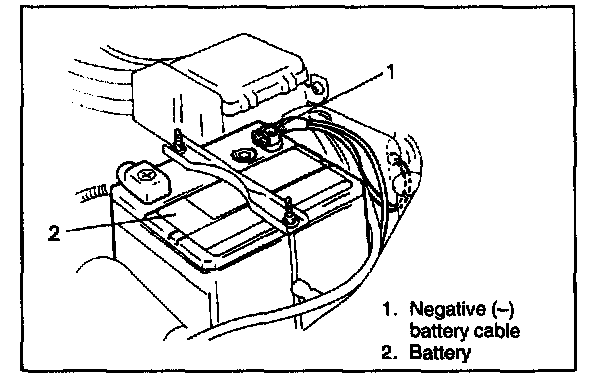

Disconnect negative (-) battery lead at battery.
2.

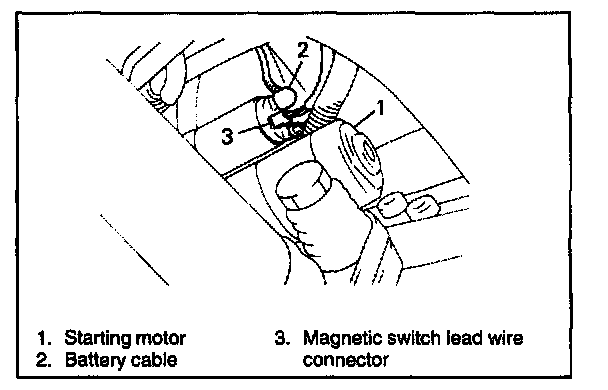

Disconnect magnetic switch lead wire and battery cable from starting motor terminals.
3.

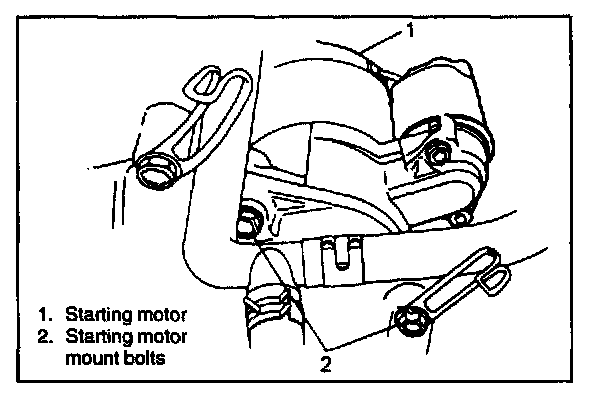

Remove 2 starting motor mount bolts.
4.
Remove starting motor.
INSTALLATIONReverse the dismounting procedure.

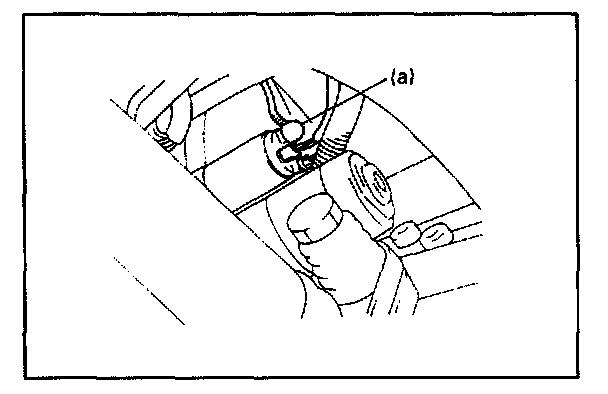

Tightening Torque
a:
10 N.m (1.0 kg-m, 7.5 lb-ft)
