Transmission Case
REMOVAL 1.

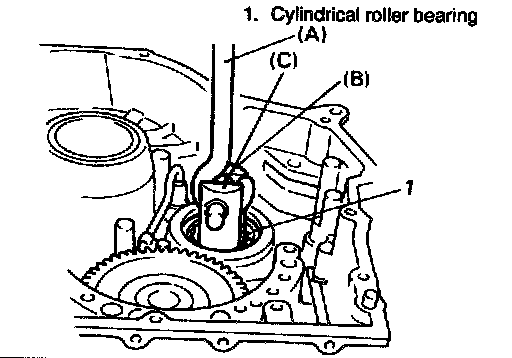

Remove cylindrical roller bearing, using special tools.
Special Tools
(A): 09942-15510
(B): 09941-54911 (remover)
(C): 09921-26010 (collar)
NOTE: Never reuse removed bearing.
INSTALLATION 1.
Apply A/T fluid to outer surface of cylindrical roller bearing.
2.

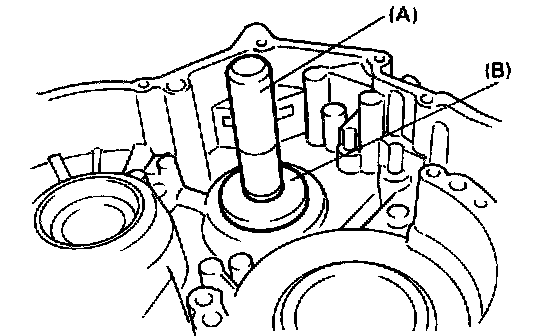

Tap cylindrical roller bearing, using special tools.
Special Tools
(A): 09924-74510
(B): 09944-88210
