Scan Tool Testing and Procedures

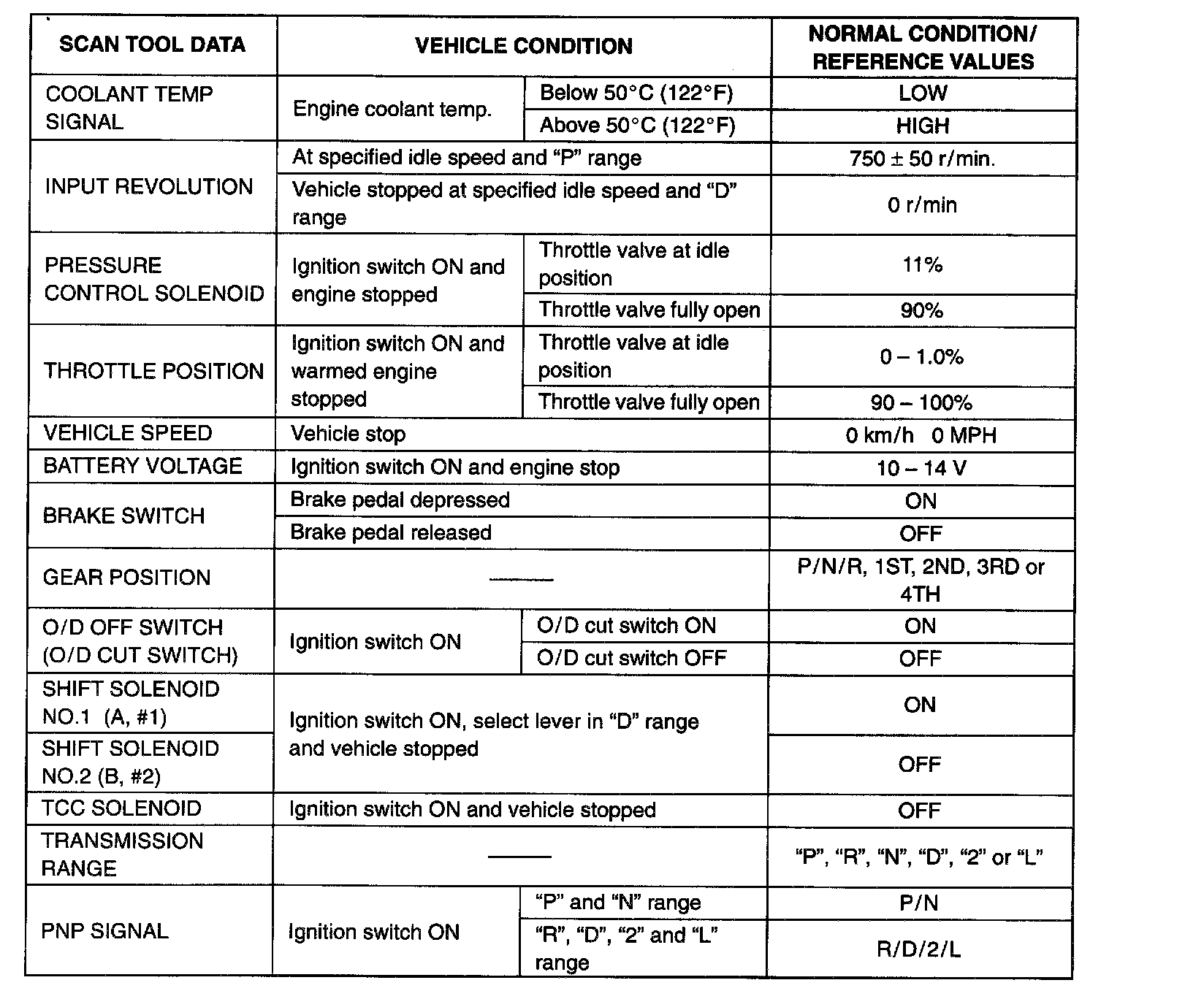

SCAN TOOL DATA





As the data values given are standard values estimated on the basis of values obtained from the normally operating vehicles using a scan tool, use them as reference values. Even when the vehicle is in good condition, there may be cases where the checked value does not fall within each specified data range. Therefore, judgment as abnormal should not be made by checking with these data alone.

SCAN TOOL DATA DEFINITIONS
Refer to BCM application operator's manual in mass storage cartridge operator's manual.
