Stop Lamp Switch (With Pedal Position Switch) Circuits Check
Stop Lamp Switch (With Pedal Position Switch) Circuits Check

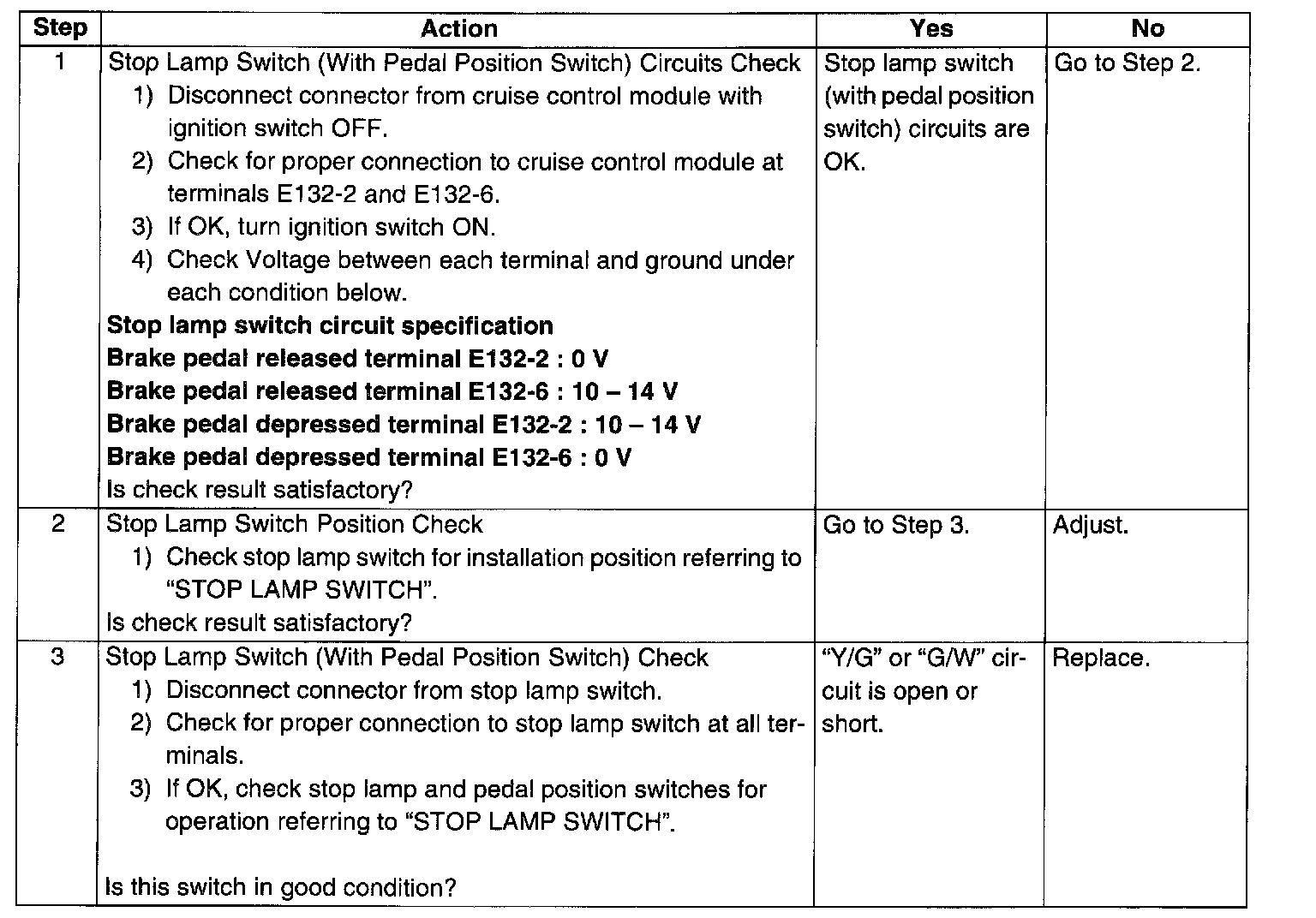

Stop Lamp Switch (With Pedal Position Switch) Circuit Check (Step 1 -3):

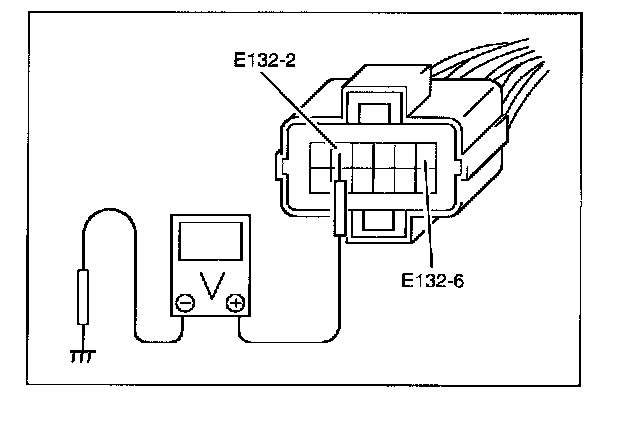

Stop Lamp Circuit Check (Fig. For Step 1):
