Heater Control Lever Assembly

REMOVAL
1. Disconnect negative (-) cable at battery.
2. Disable air bag system. Refer to "DISABLING AIR BAG SYSTEM".
3. Remove heater mode control switch, refer to "HEATER MODE CONTROL SWITCH".
4. Remove glove box.

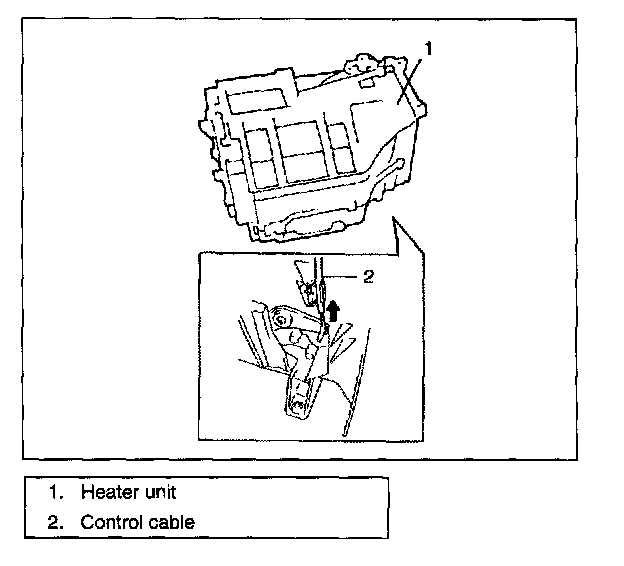

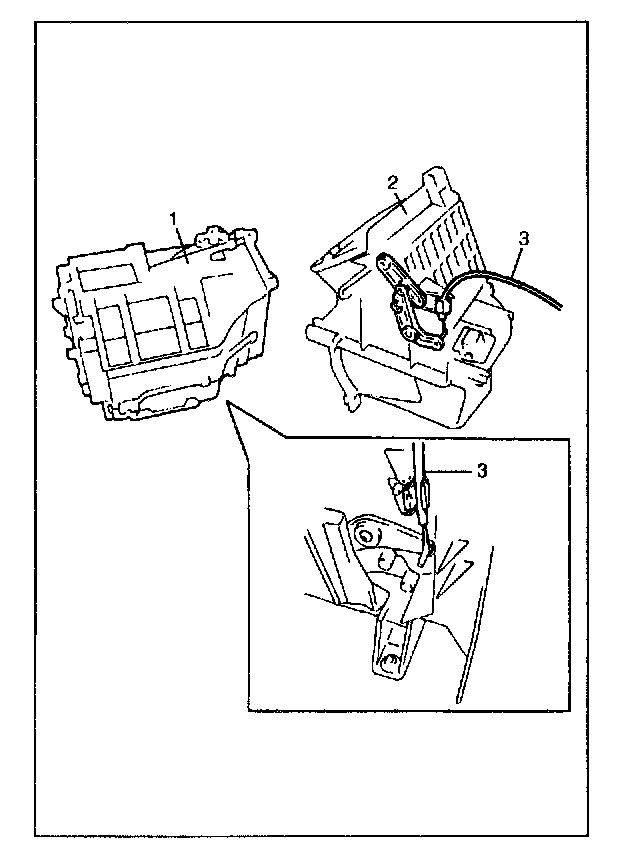

5. Disconnect control cables (3) from blower motor unit (2) and heater unit (1).




6. Disconnect blower motor switch (1) connector at coupler.
7. Remove heater control lever assembly (2).

INSTALLATION




1. Install in reverse order of removal procedure, adjustment the following items.

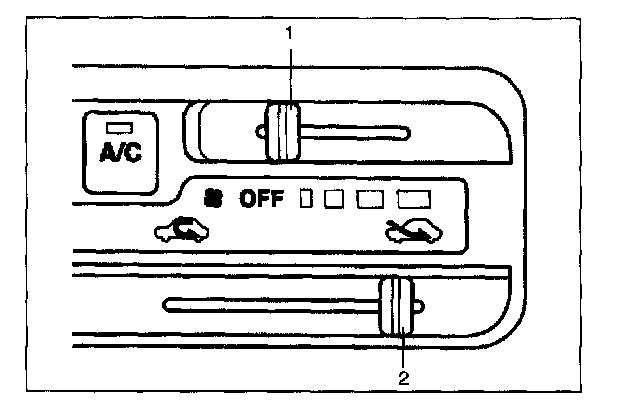

- Move control lever (1) to FRESH position (2).

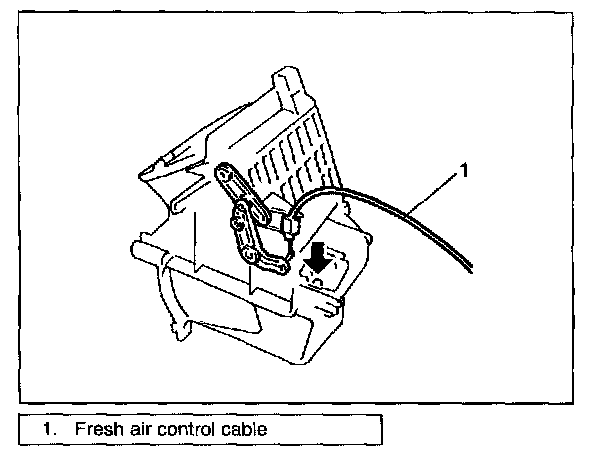

- Push heater lever fully in arrow direction and fix cable with clamp in position as shown in the figure.




- Push blower lever fully in arrow direction and fix cable with clamp in position as shown in the figure.

NOTE: After installing control cables, be sure that control levers move smoothly and stop at proper position.

2. Enable air bag system. Refer to "ENABLING AIR BAG SYSTEM".
