Control Assembly: Testing and Inspection

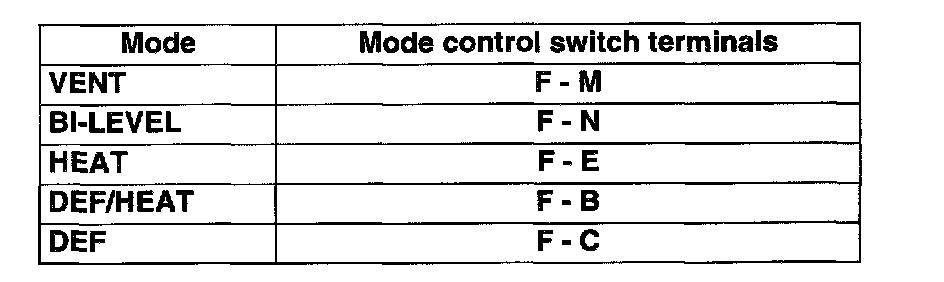

Mode control switch specification::

- Check if continuity exists between each pair of terminals listed when mode control button is pressed.
- With battery voltage (+) connected to terminal "I" and (-) to terminal "F", press each mode control button and check if indicator lamp (3) lights.
- With battery voltage (+) connected to terminal "A" and (-) to terminal "H", check if illumination lamp lights.
