Heater Control Valve Cable: Testing and Inspection

Heater Control Cables:

REMOVAL




1. Remove heater control lever assembly. Refer to "CONTROL ASSEMBLY/ HEATER CONTROL LEVER ASSEMBLY".

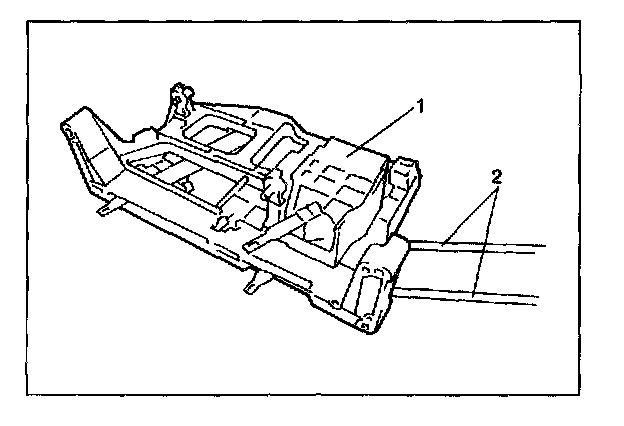

2. Disconnect control cables (2) from control lever assembly (1).

INSTALLATION
Install control cables by reversing removal procedure, noting the following point.
- After installing control cables, be sure that control levers move smoothly and stop at proper position.

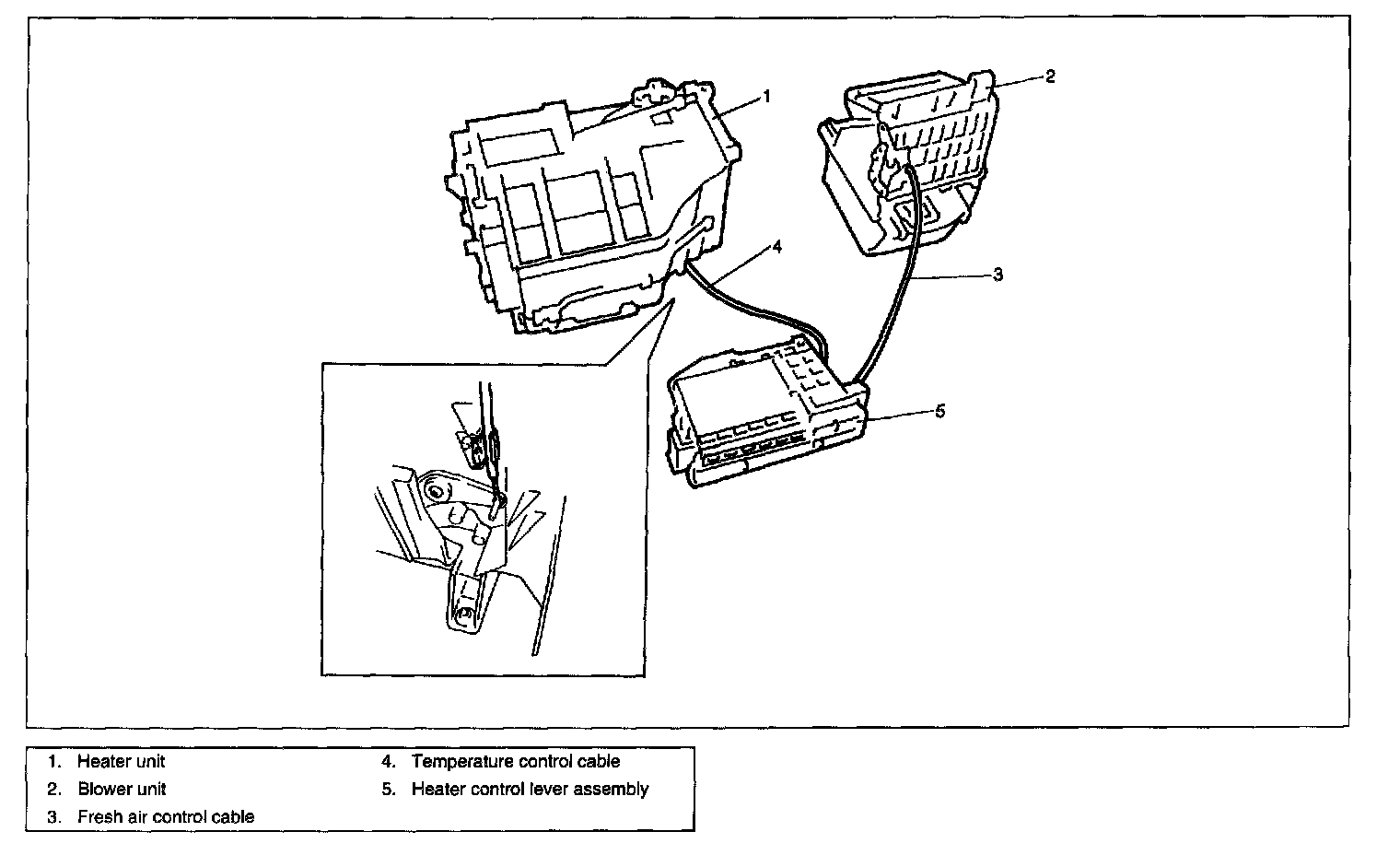

- Move control lever (1) to FRESH position (2), then push lever fully in arrow direction (4) and fix cable (3) with clamp in position as shown in the figure.
