Exhaust Gas Recirculation: Service and Repair

REMOVAL
1. Disconnect negative (-) cable at battery.
2. Disconnect EGR valve coupler.

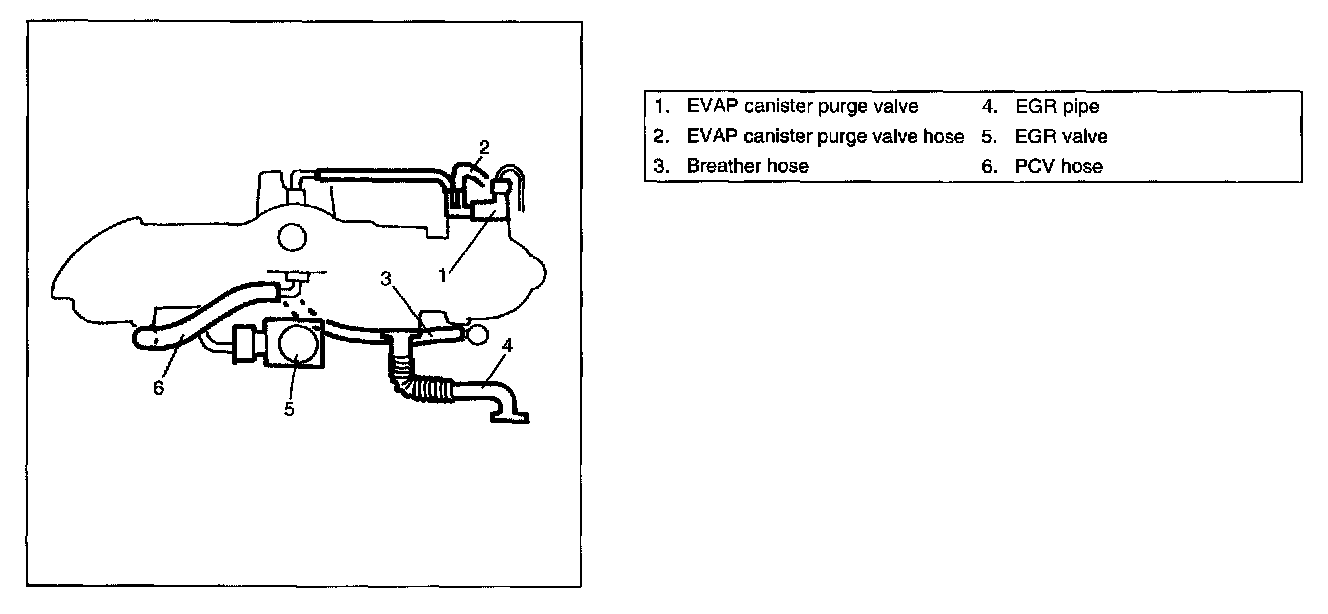

3. Remove EGR valve (5) and gasket from intake collector.

INSTALLATION
Reverse removal procedure noting the followings.
- Clean mating surface of valve and intake manifold.
- Use new gasket.
