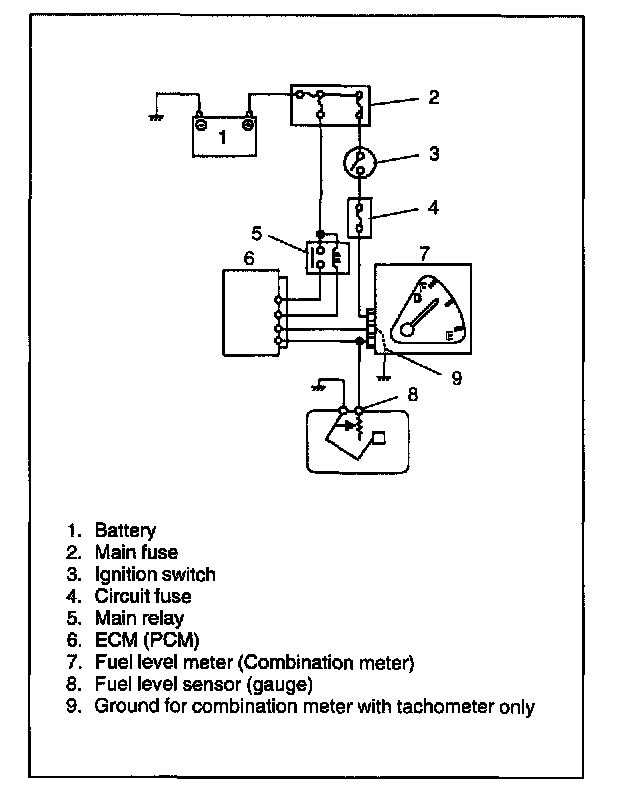

Fuel Level Signal: Description and Operation
This signal is sent from the
fuel level sensor (gauge) installed in the
fuel tank.
ECM (PCM) uses this signal as one of the monitoring conditions for detecting diagnostic trouble code (DTC) and ECM (PCM) also uses this signal to control tank pressure control solenoid valve.
