Connector Locations
Engine Harness (Connectors "C"):

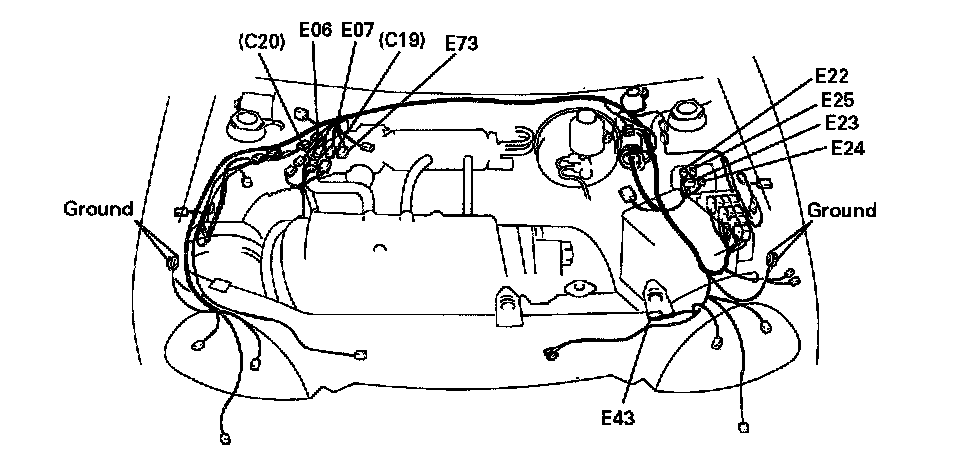

Main Harness (Connectors "E"):
Engine And Main Harness (Connectors "C" And "E"):

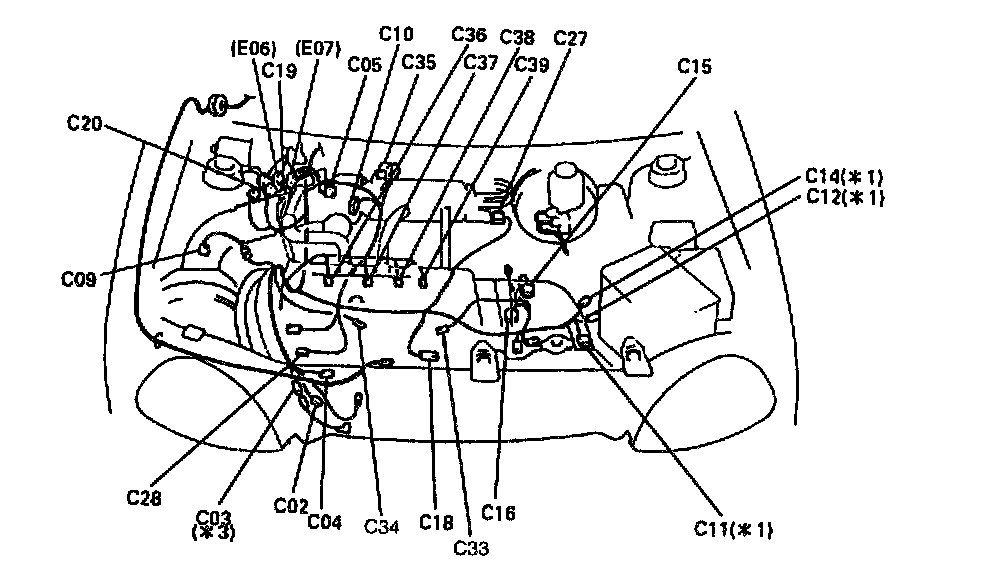

Engine Harness Connectors "C":

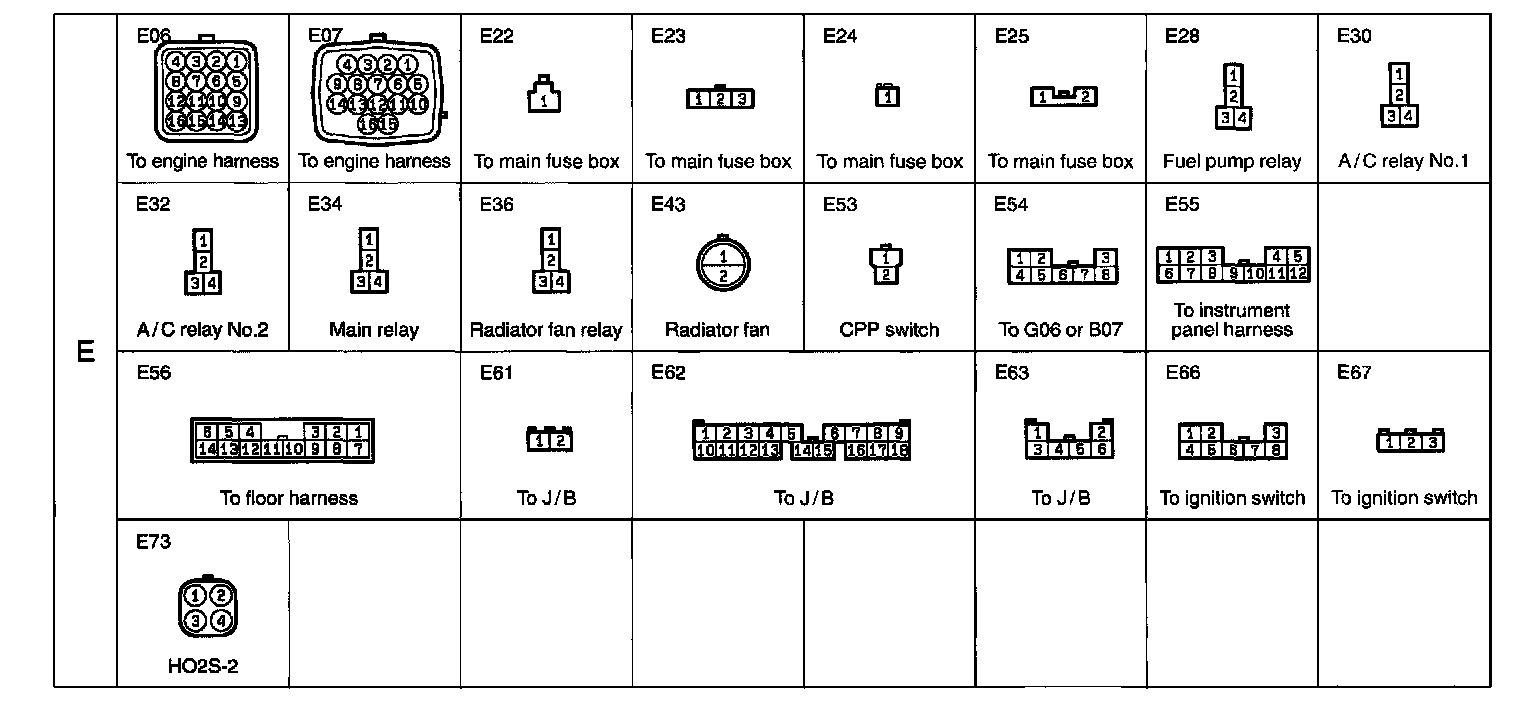

Main Harness Connectors "E":

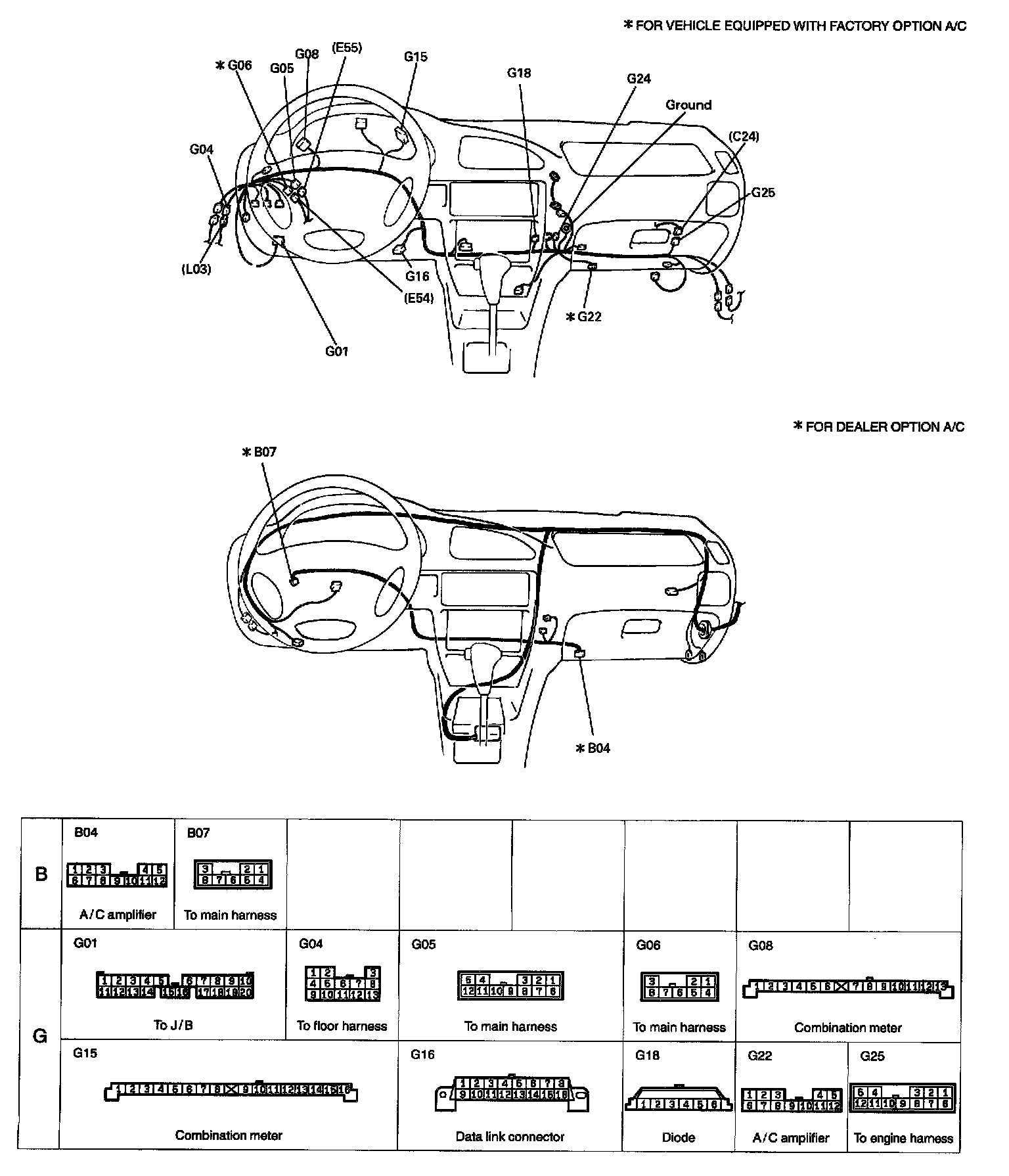

Instrument Panel Harness And Connectors "G" And "B":

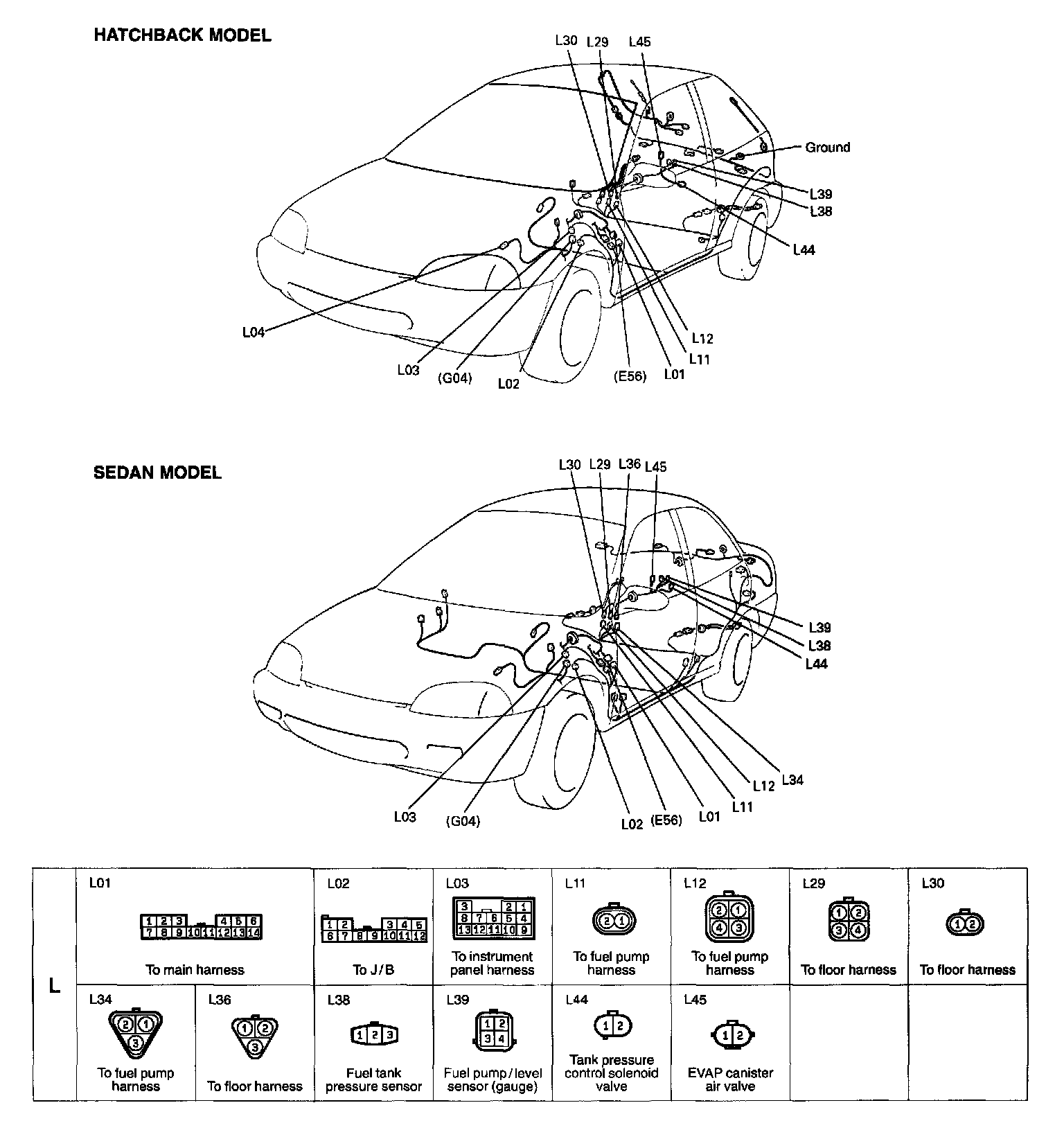

Floor/Fuel Pump Harness And Connectors "L":
WIRE HARNESS AND CONNECTORSTerminal assignment on each connector indicates viewed from terminal side.
