Electronic Brake Control Module: Service and Repair

ELECTRONIC BRAKE CONTROL MODULE (EBCM)

CAUTION: As EBCM consists of precision parts, be careful not to expose it to excessive shock.

REMOVAL
1. Disconnect negative cable at battery

2. Remove steering column hole cover, knee bolster absorber and knee bolster panel.
3. Remove junction/fuse block.
4. Remove EBCM from vehicle.

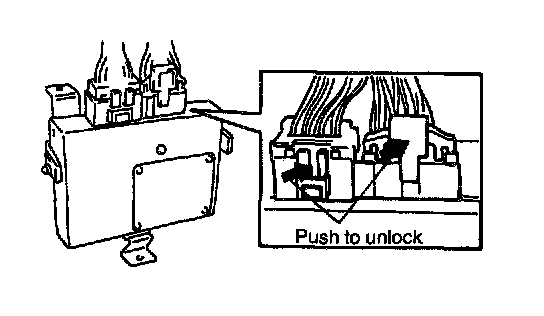

5. Disconnect couplers from EBCM.

INSTALLATION

Install parts in reverse order of REMOVAL procedure.
