Ignition Switch: Testing and Inspection
IGNITION (Main) SWITCH 1.
Disconnect negative (-) cable at battery.
2.
Disable air bag system.
3.
Disconnect main switch lead wire connectors from junction/fuse block and air bag harness.

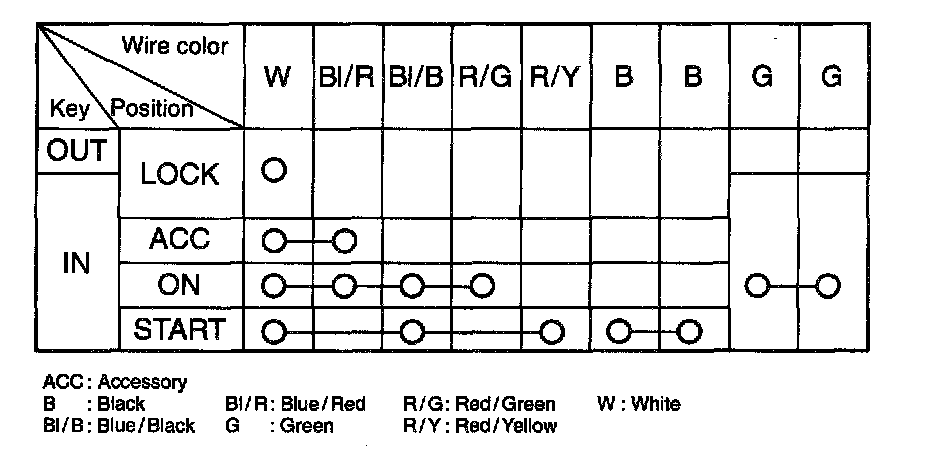

Checking continuity between terminalsUse a circuit tester to check the continuity at each switch position.
If any continuity is not obtained, replace main switch.
