Floor
Floor

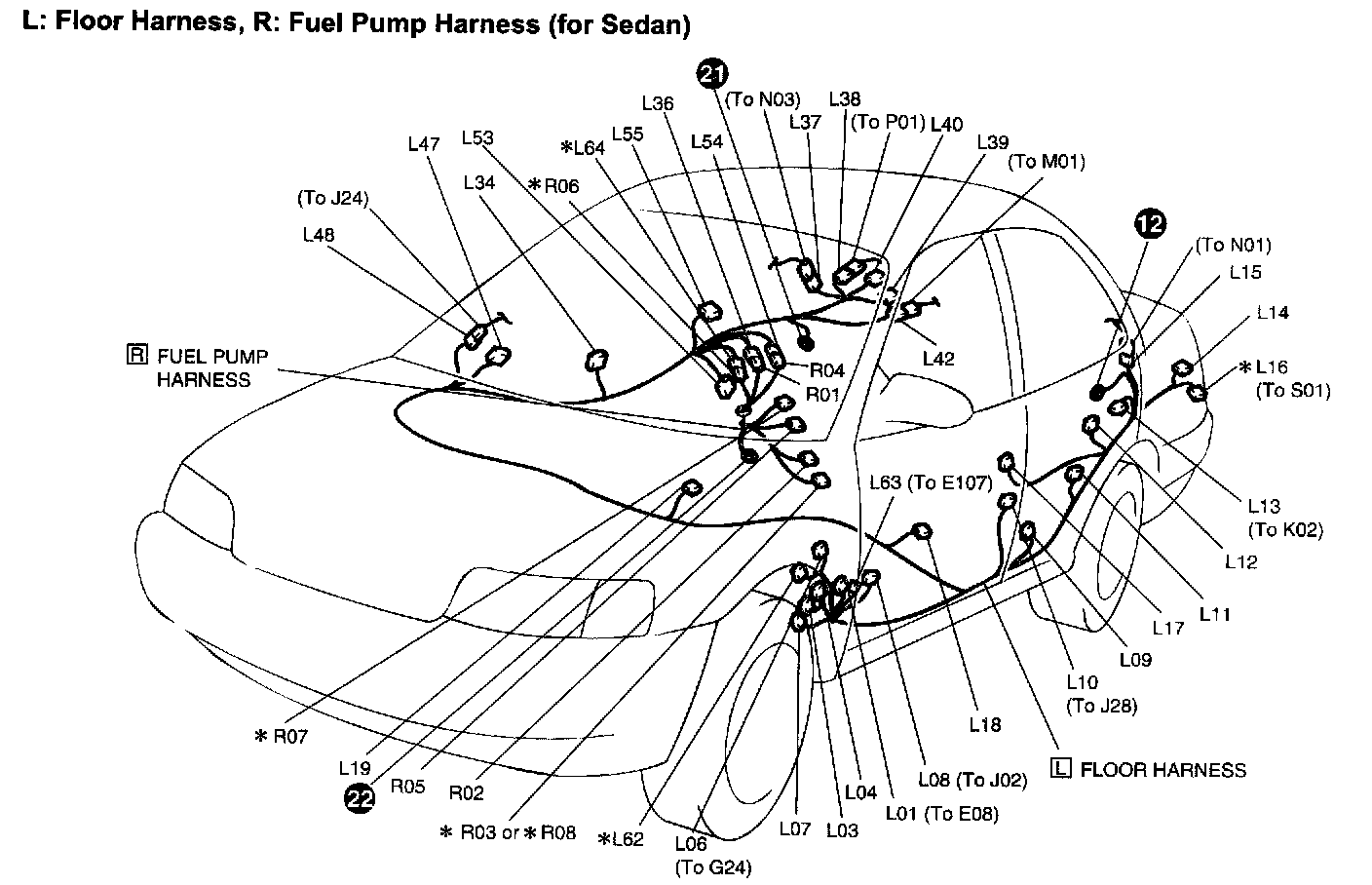

L: Floor Harness, R: Fuel Pump Harness (For Sedan):

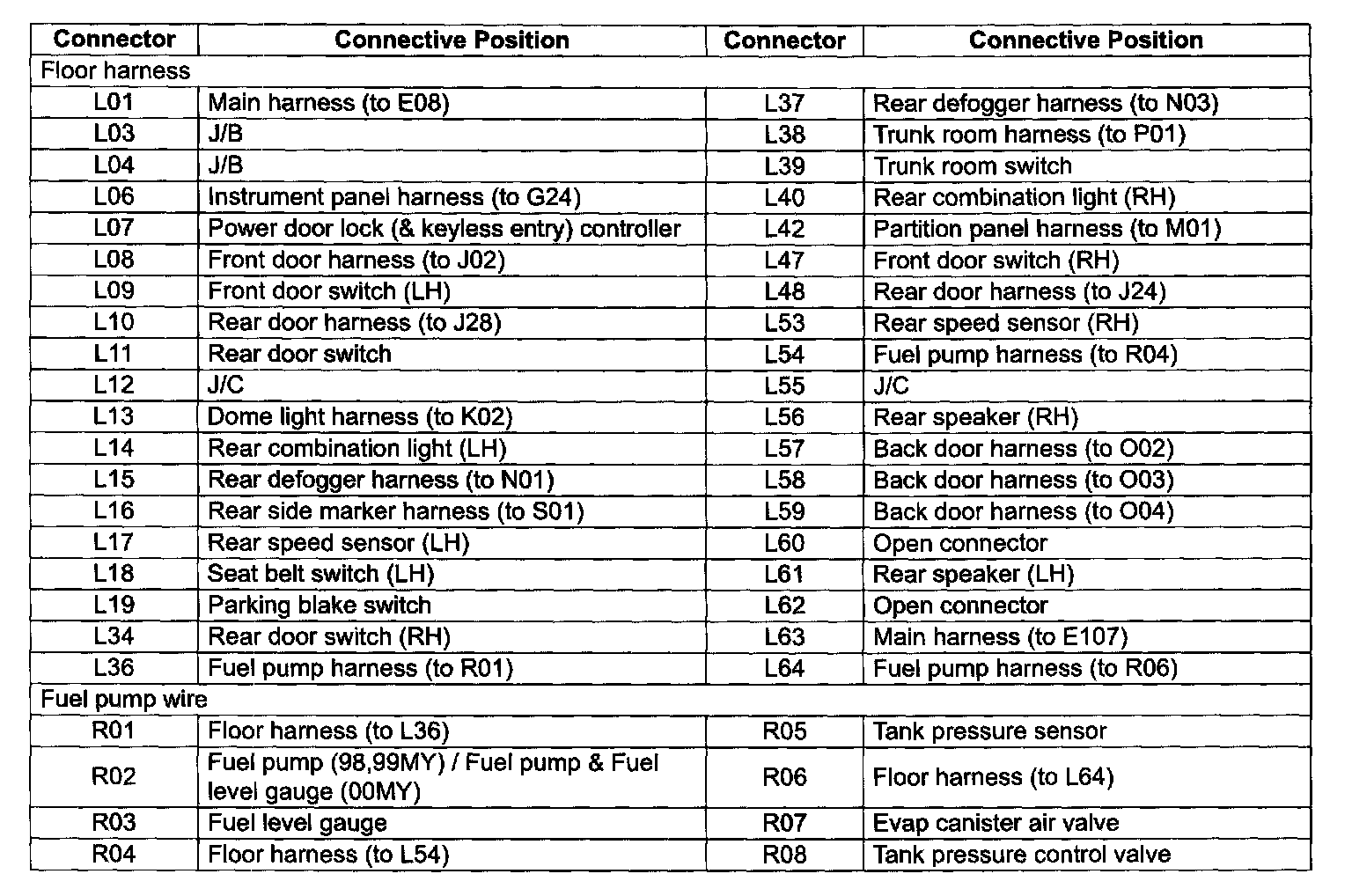

L: Floor Harness R: Fuel Pump Harness (For Sedan, Wagon) Connective Position:
