Condenser Fan: Testing and Inspection

A/C Condenser Fan Assembly

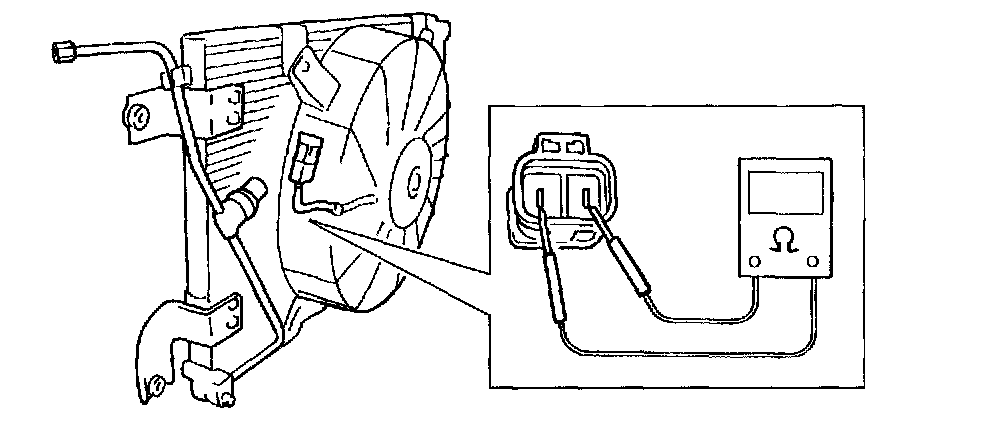

- Check continuity between terminal to terminal as shown in figure.
If check results are continuity, proceed to next operation check. If not, replace.
- Connect battery to condenser fan motor as shown, then check that the condenser fan motor operates smoothly.




Reference current for A/C condenser fan 8 - 12 A at 12 V
