Receiver Dryer: Service and Repair

Desiccant

Removal

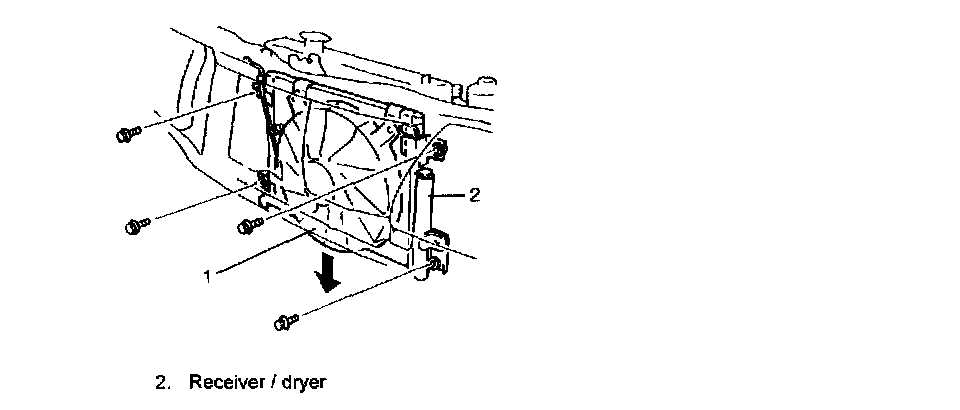

1. Remove condenser assembly (1) from vehicle referring to "A/C Condenser Assembly Removal and Installation:".
2. Remove the cap using a hexagon wrench.




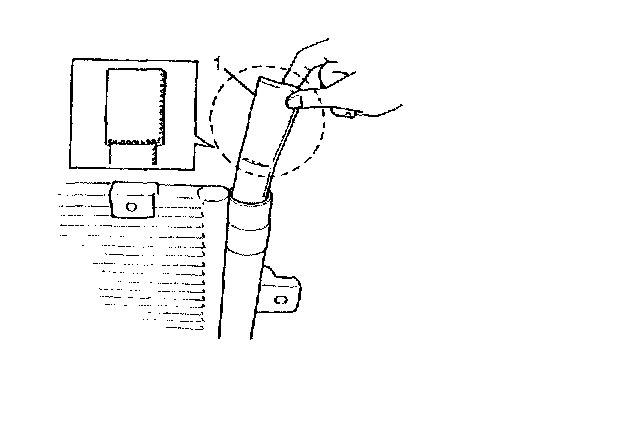

3. Remove the filter (1) from receiver/dryer (2).

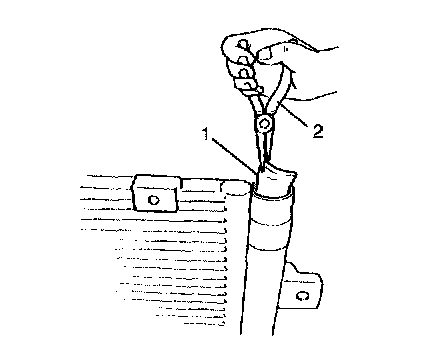

4. Remove desiccant (1) using pliers (2).

Installation
Reverse removal sequence to install desiccant, according to instruction manual with supply parts.

NOTE:
- When replacing desiccant, add 40 cc of refrigerating oil the same as compressor oil.
- Do not remove desiccant from the plastic bag until just before inserting it into receiver / dryer.
- Install the desiccant (1) with its double-layer portion facing the bottom of receiver / dryer.
- If desiccant cap installing is bolt type, tighten specified torque for its bolt.






Tightening torque
Cap: 12.5 N.m (1.25 kg-m, 9 ± 1.8 lb-ft)
