Engine Control Module

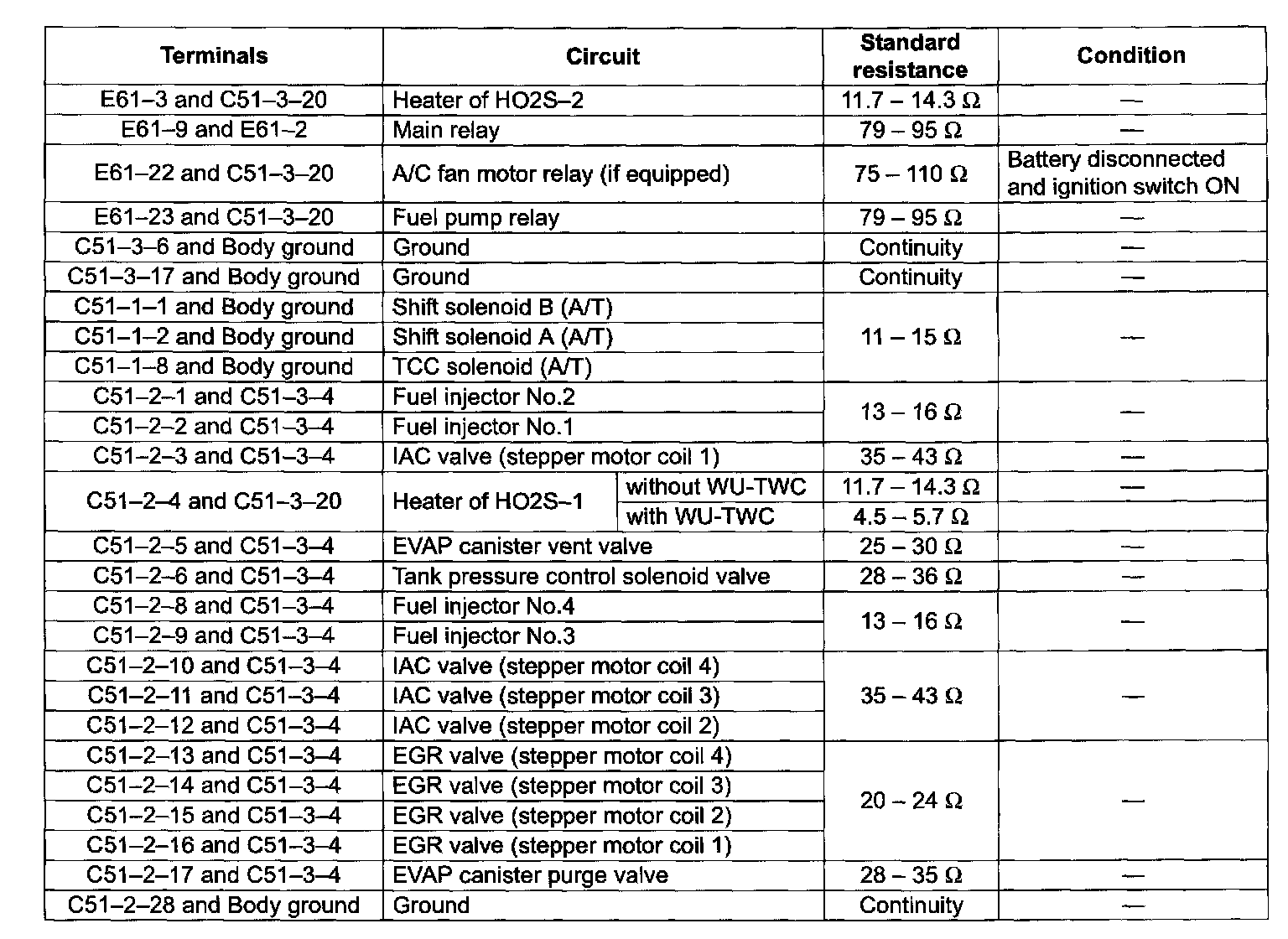

ECM / PCM Pinouts:

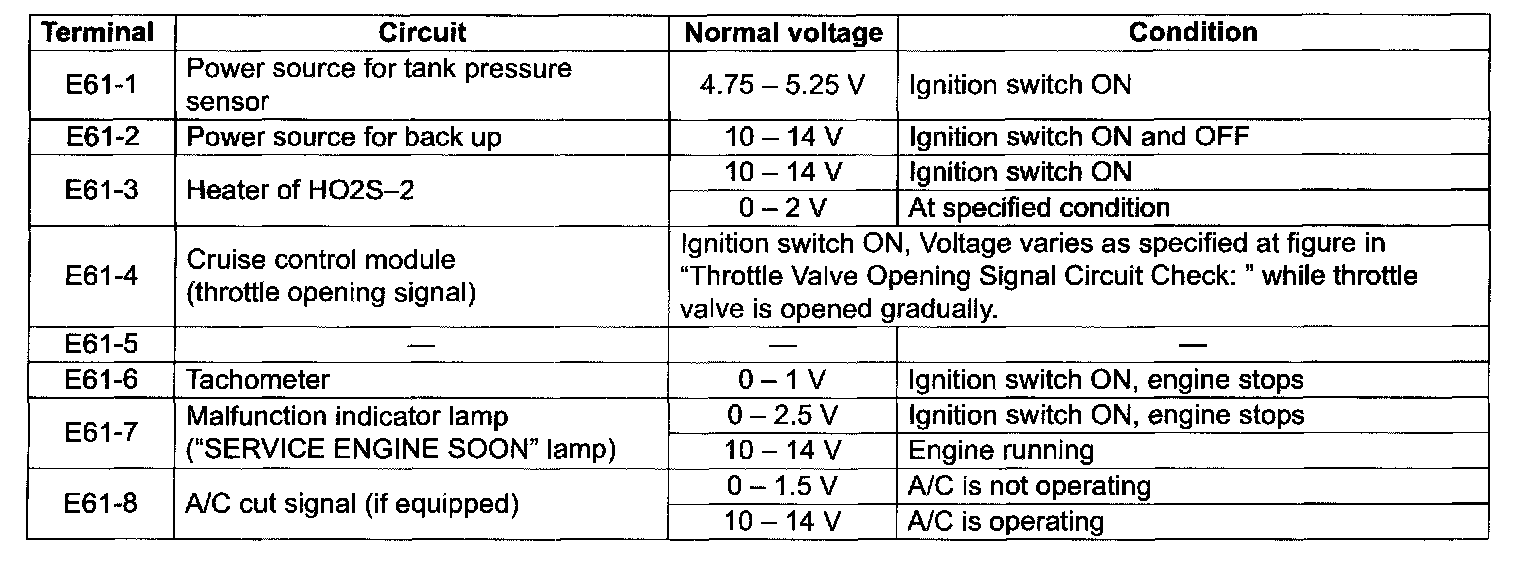

Terminal E61-1 - E61-8:

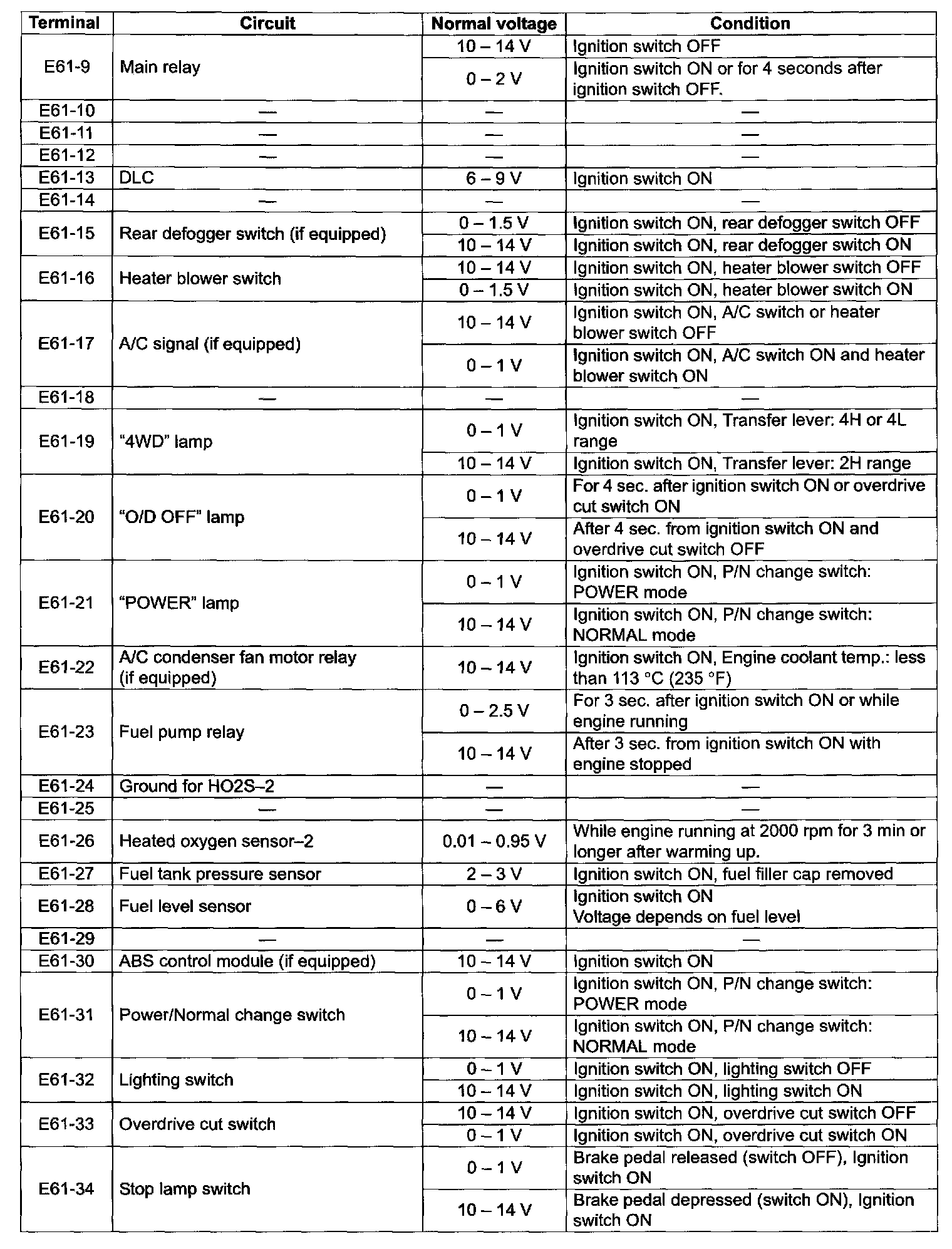

Terminal E61-9 - E61-34:

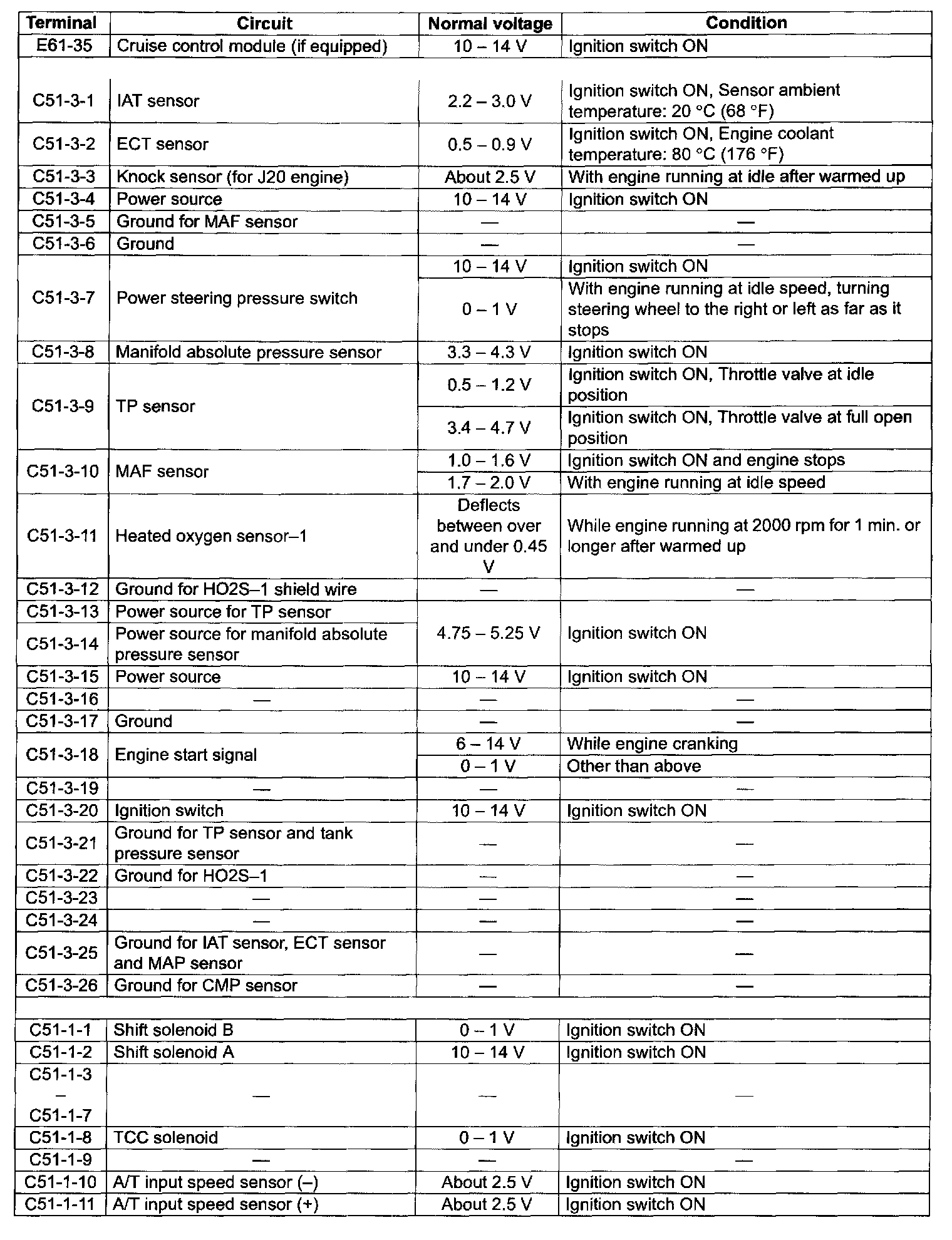

Terminal E61-35 - C51-1-11:

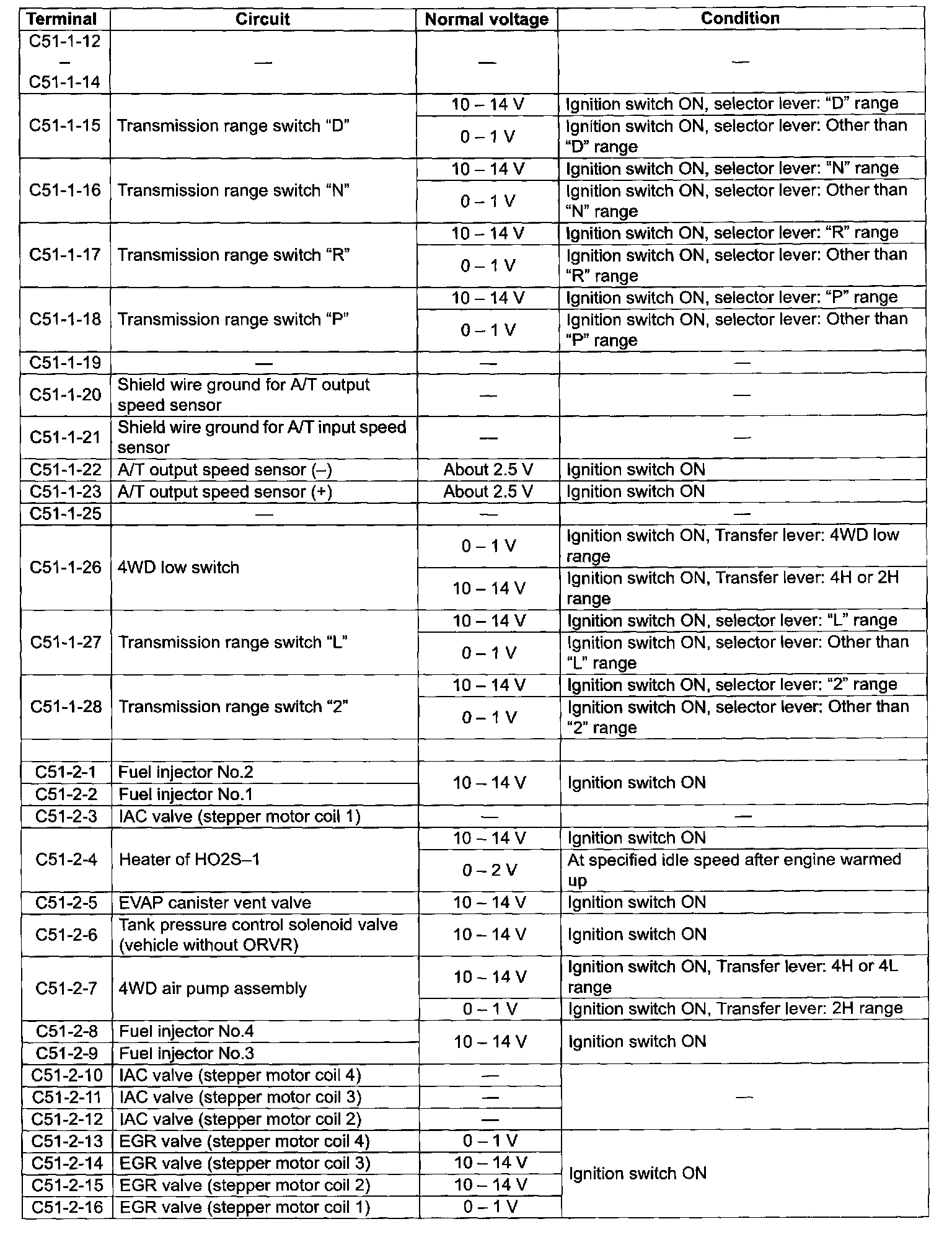

Terminal C51-1-12 - C51-2-16:

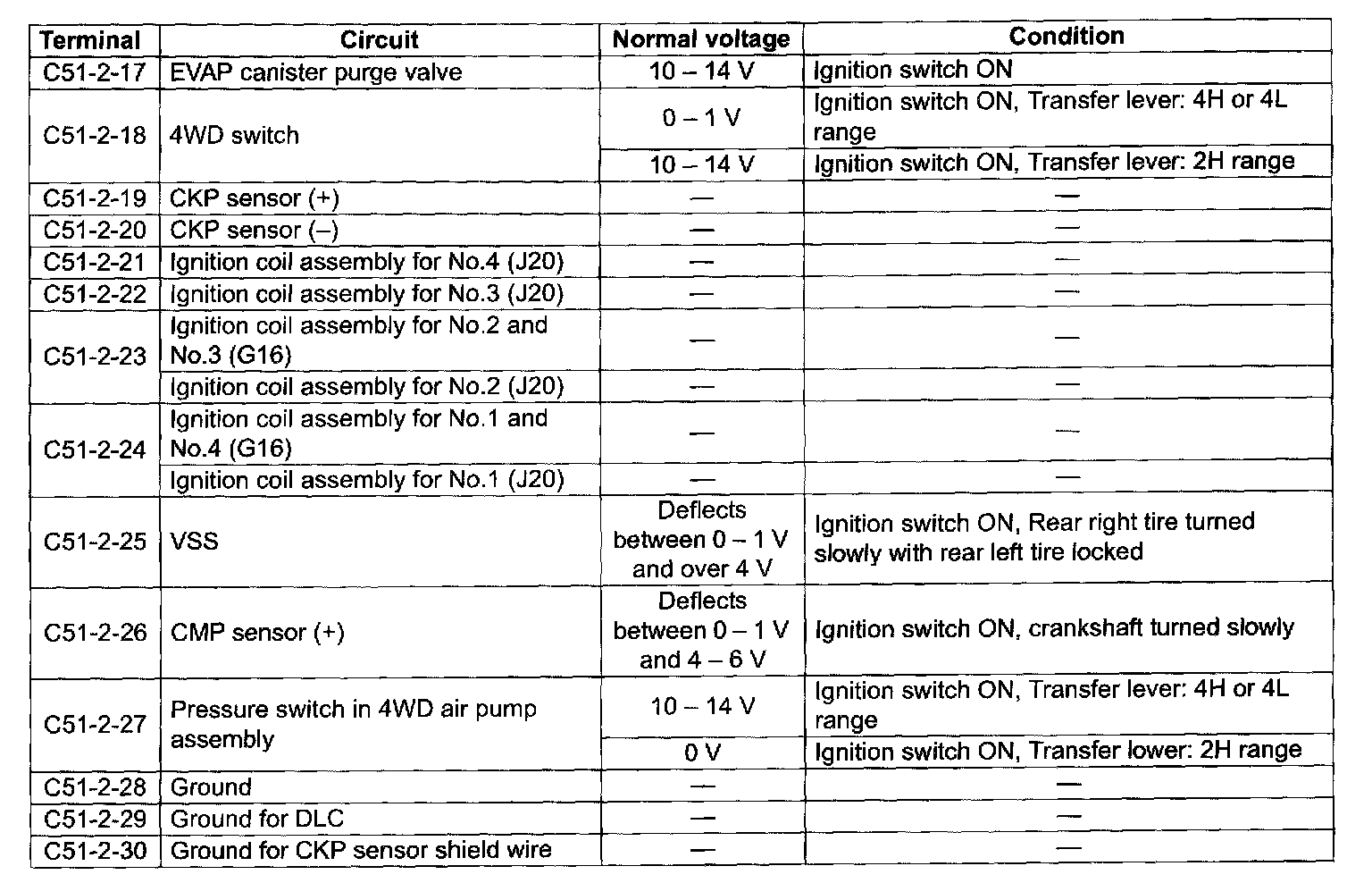

Terminal C51-2-17 - C51-2-30:
