Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2002
>>
Vitara JLS (4Dr) 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Vehicle With Cruise Control Module
Vehicle With Cruise Control Module

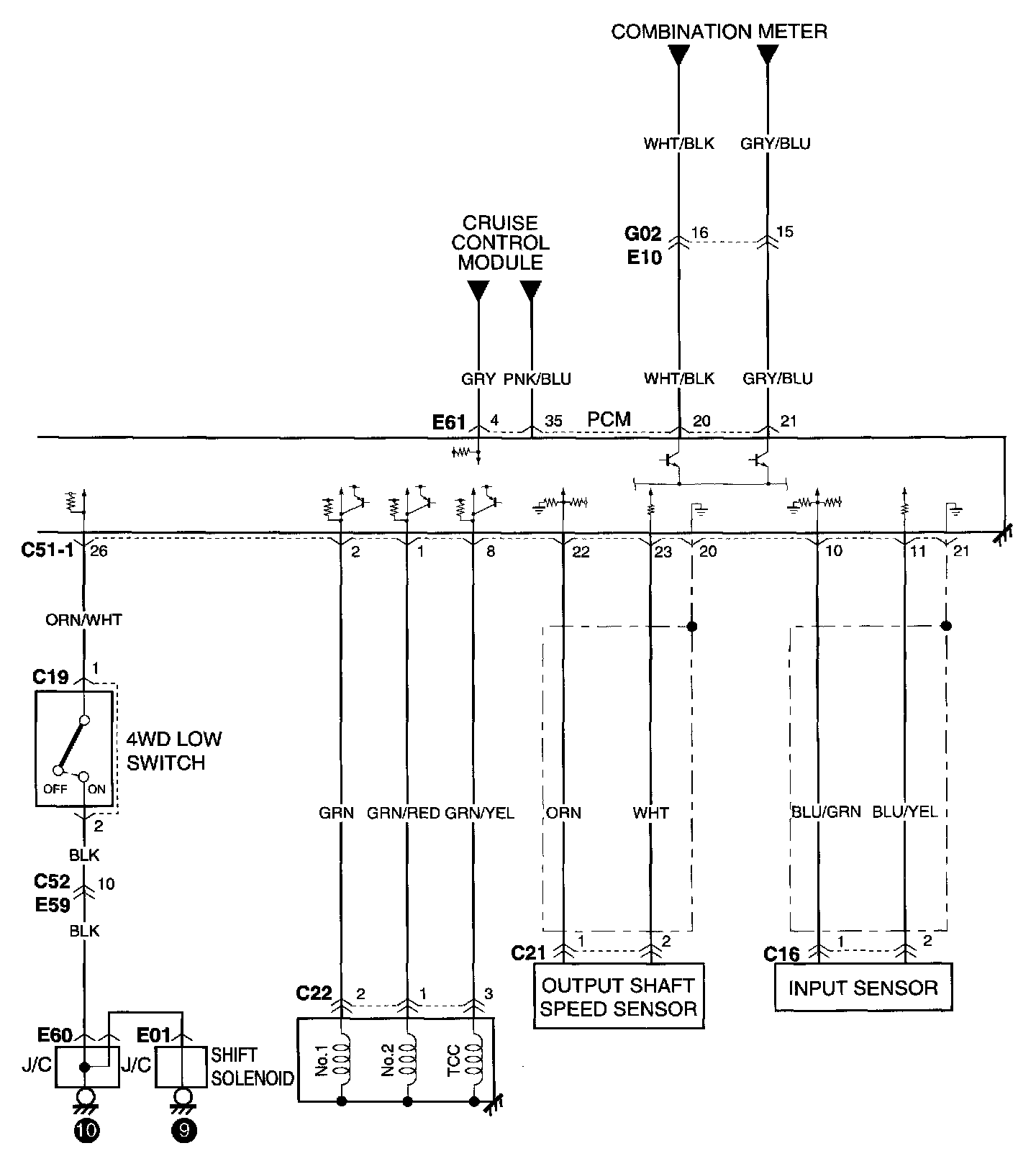

A/T Control System Circuit Diagram-Vehicle With Cruise Control Module 1:

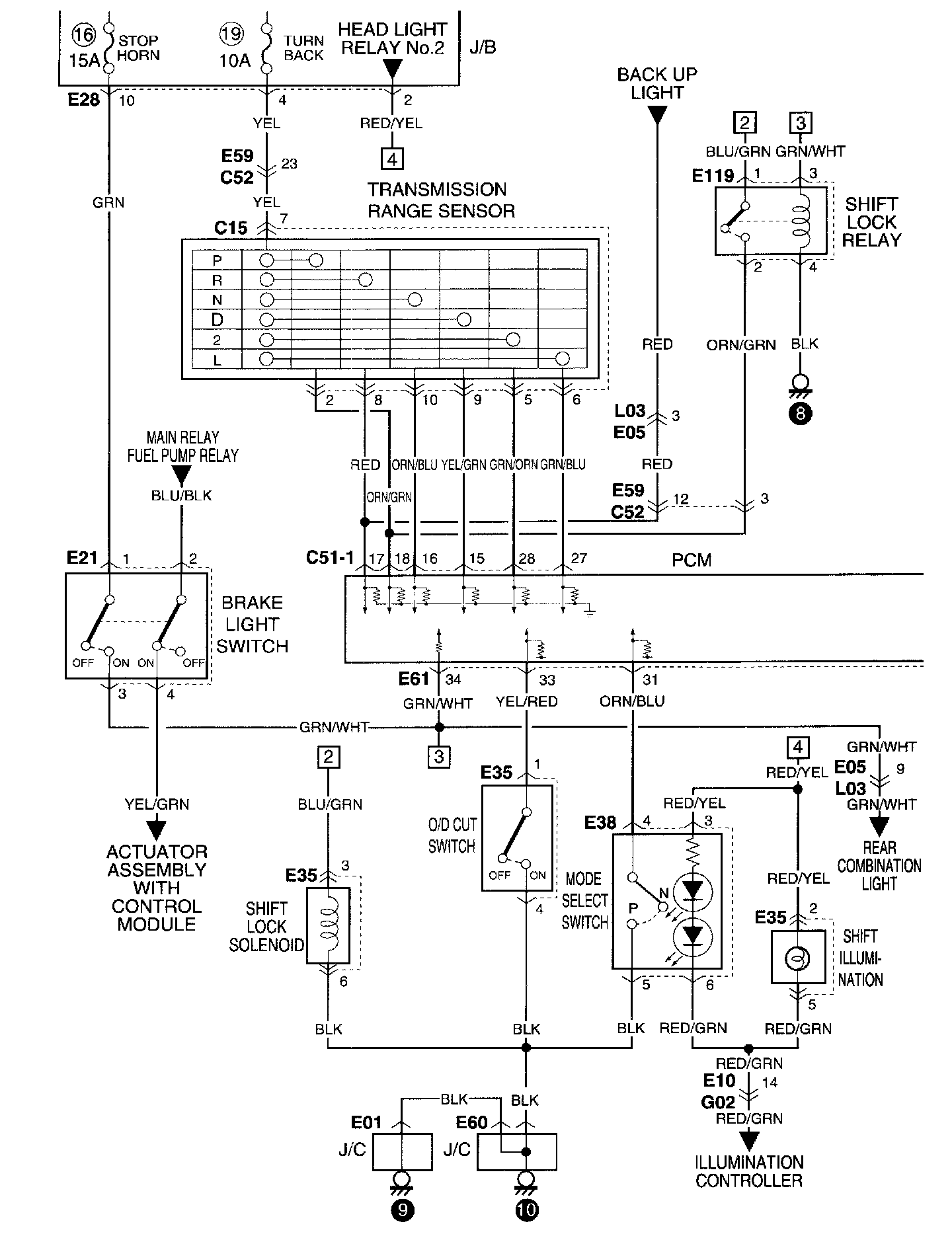

A/T Control System Circuit Diagram-Vehicle With Cruise Control Module 2:
