Brake Rotor/Disc: Service and Repair

Removal
1. Hoist vehicle and remove wheel.

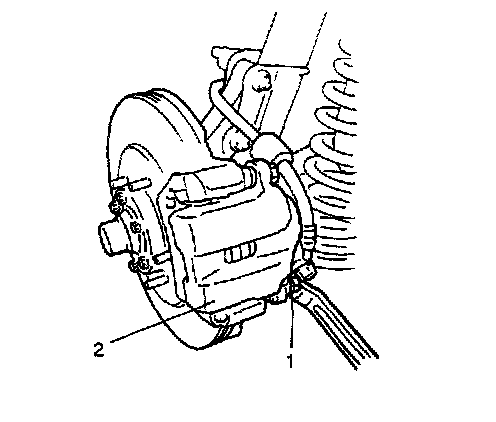

2. Remove caliper assembly (2) by loosening carrier bolts (1) (2 pcs).

CAUTION: During removal, be careful not to damage brake flexible hose and not to depress brake pedal.

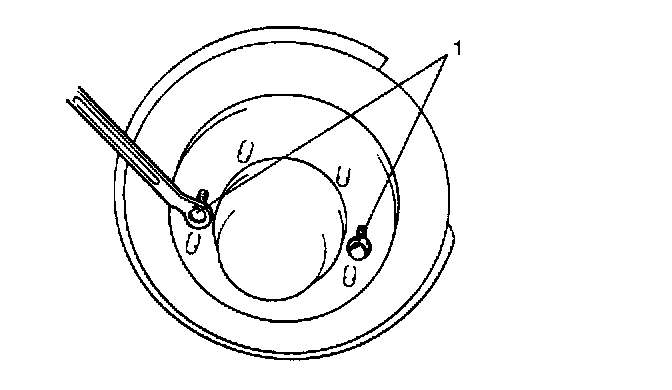

3. Remove disc by using 8 mm bolts (1) (2 pcs).

Installation
1. Install disc to wheel hub.
2. Install caliper assembly to steering knuckle.

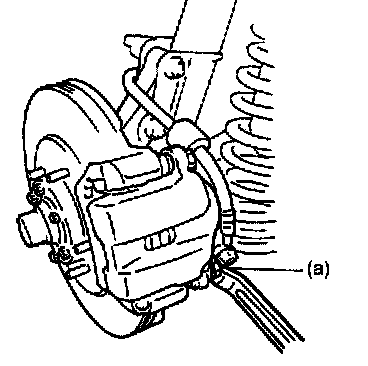

3. Torque caliper carrier bolts to specification.
Tightening torque
Caliper carrier bolt (a): 85 Nm (8.5 kgf-m, 61.5 ft. lbs.)

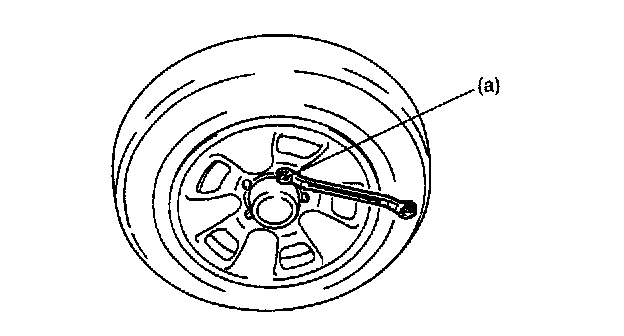

4. Torque front wheel nuts to specifications.
Tightening torque
Wheel nut (a): 100 Nm (10.0 kgf-m, 72.5 ft. lbs.)
5. Upon completion of installation, perform brake test.

Inspection
Inspect front brake disc.
