Suzuki
>>
2002
>>
XL-7 Plus 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C Connectors
C Connectors
NOTE:
The illustrations below show the harness side connectors, but not the component side connectors.
C03 - C15:

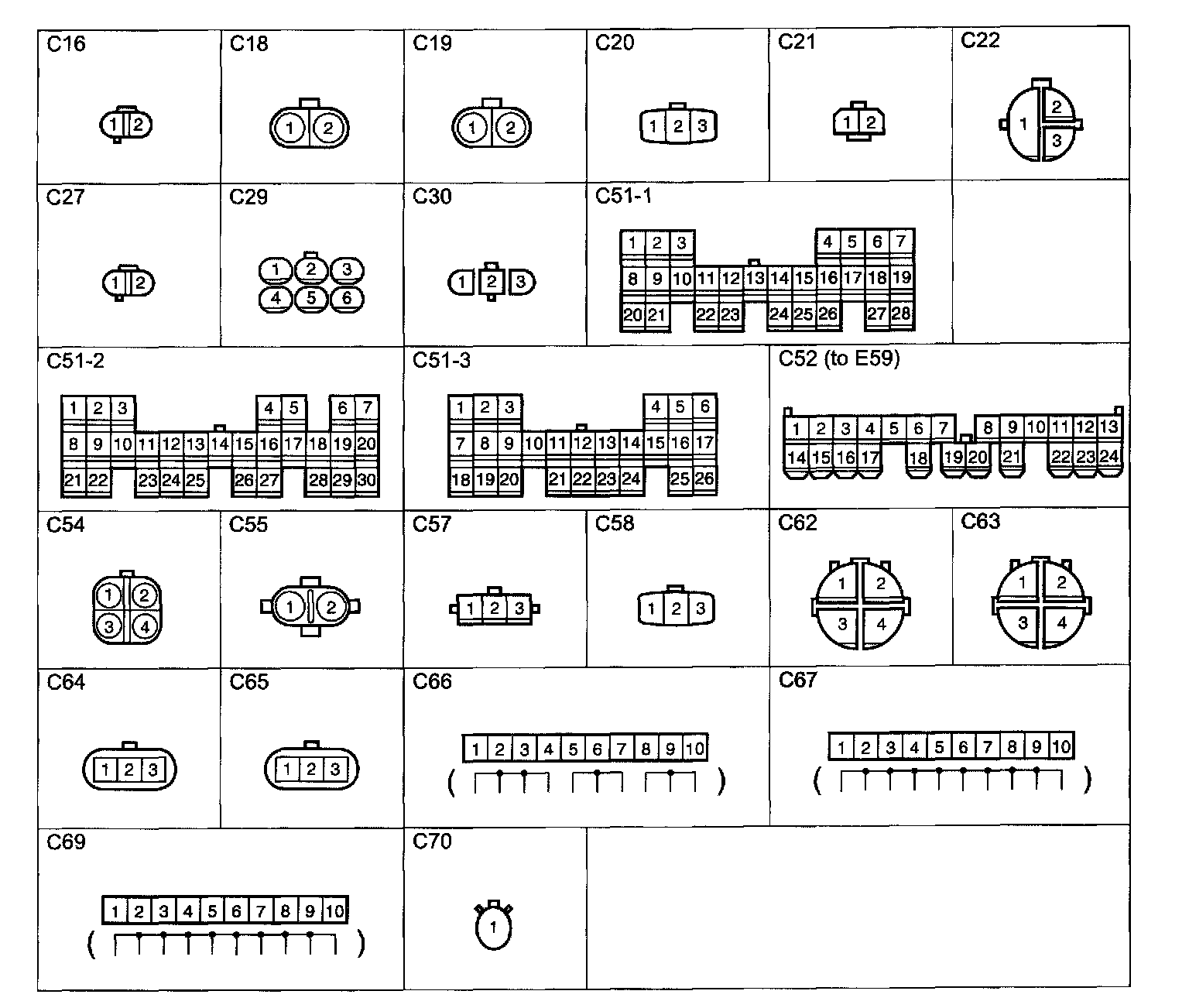

C16 - C70:
