Rear A/C Evaporator Temperature Controller

Removal
1. Remove rear A/C unit referring to "Rear A/C Unit (Rear A/C Evaporator) Removal and Installation:".

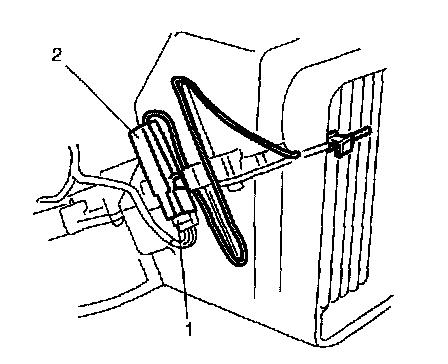

2. Disconnect rear A/C evaporator temperature controller connector (1).
3. Remove rear A/C evaporator temperature controller (2) from rear A/C unit.

Installation
Reverse removal procedure to install rear A/C evaporator temperature controller noting the following instruction.
- When the rear A/C evaporator thermistor (temperature sensor) removed, it should be reinstalled in original position.
