Heater Control Lever Assembly
Heater Control Lever Assembly

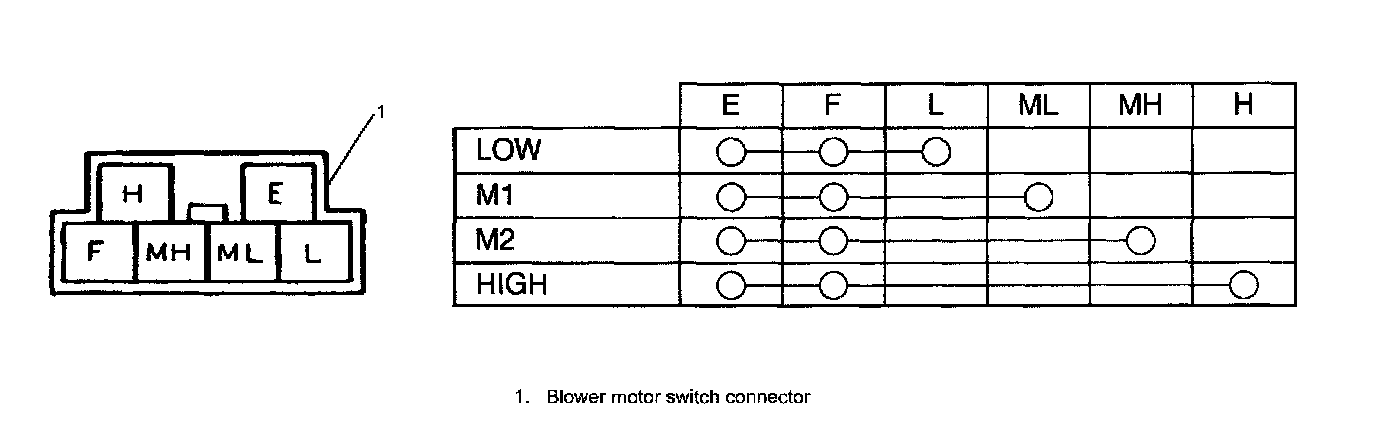

Check heater blower motor switch for each terminal-to-terminal continuity. For the detail refer to "Heater and Ventilation Wiring Circuit Diagram:".
