Dimmer Switch: Testing and Inspection

Illumination Controller Inspection

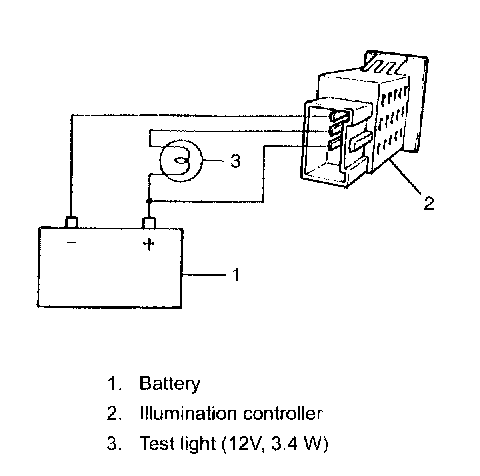

1. Connect a bulb (test light) to wire as illustrated.

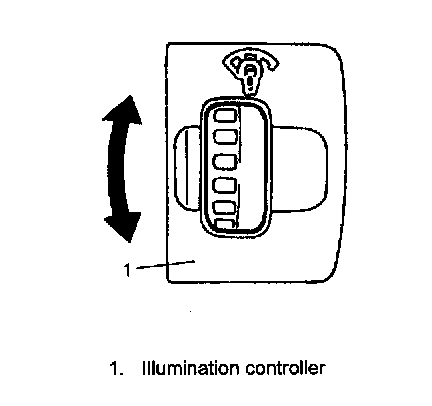

2. Make sure that illumination controller knob is turned up to brighten test light and down to darken it.
