Suzuki
>>
2002
>>
XL-7 Plus 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Locations
>>
Fuse and Fusible Link Locations
Fuse and Fusible Link Locations
Fuse

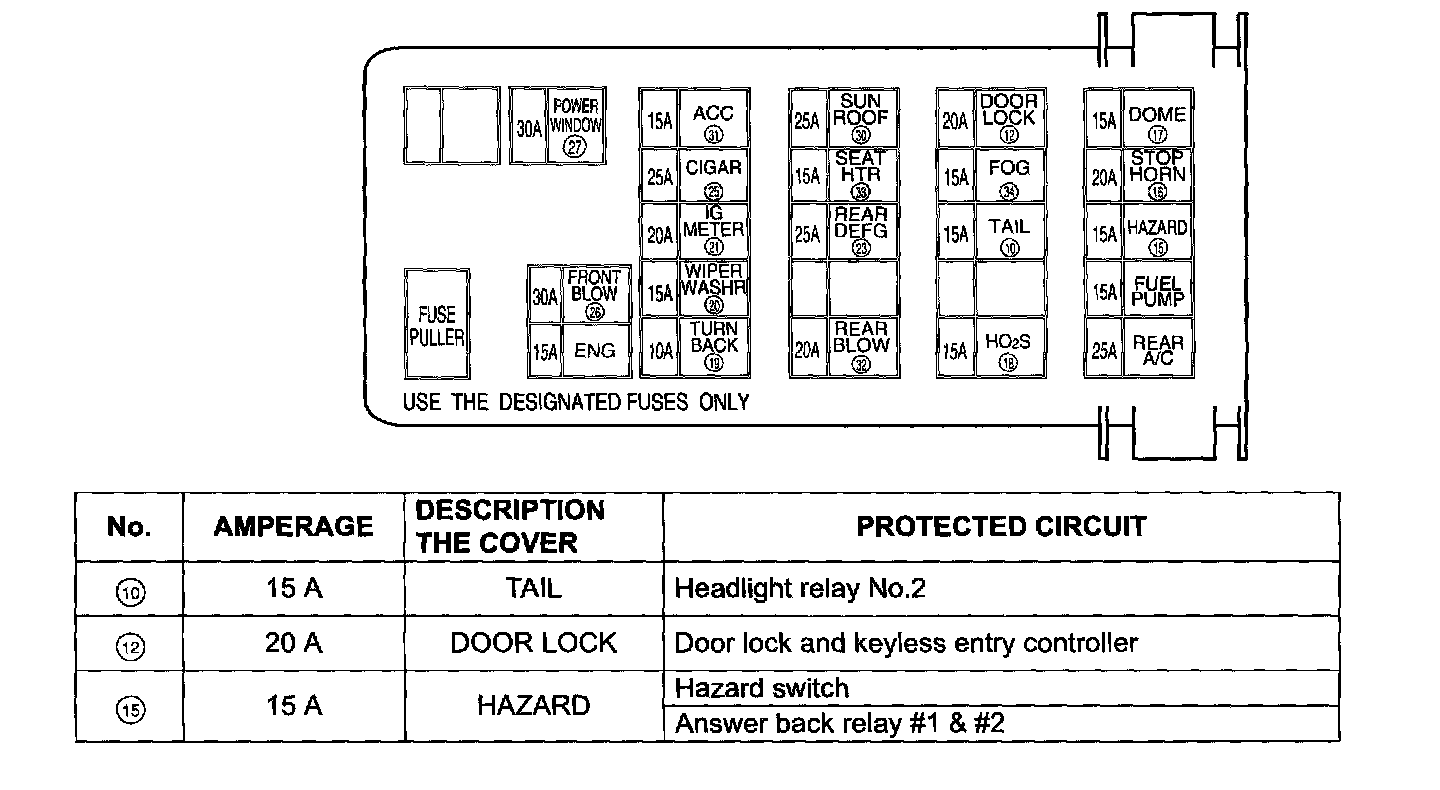

The chart below shows the circuits protected by each fuse.
Fuses No. 1 - 8:
Fuse No. 10 - 15:
Fuse No. 16 - 28:
Fuse No. 27 - 34:

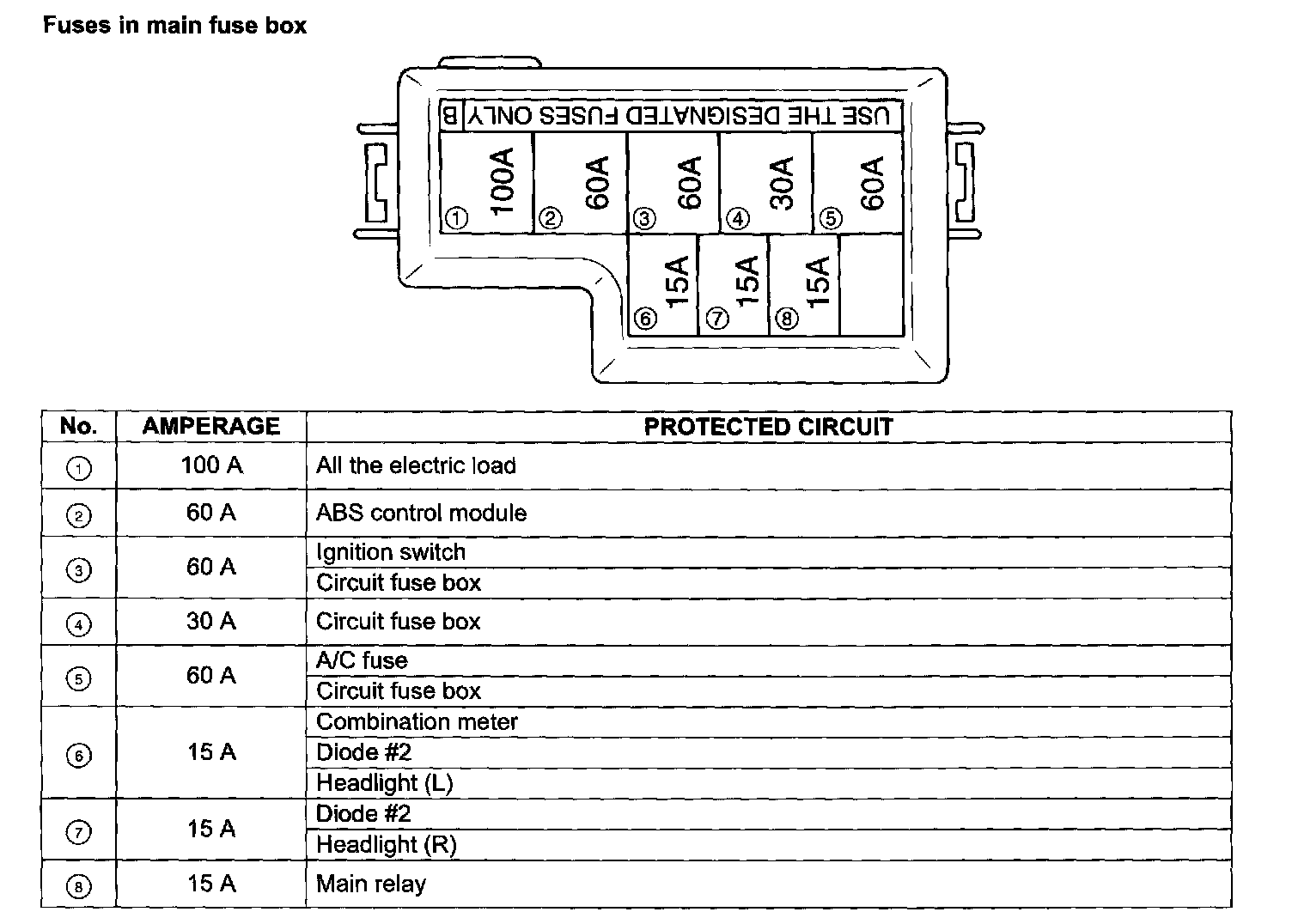

Fuses in main fuse box
