Suzuki
>>
2002
>>
XL-7 Plus 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Door
Door

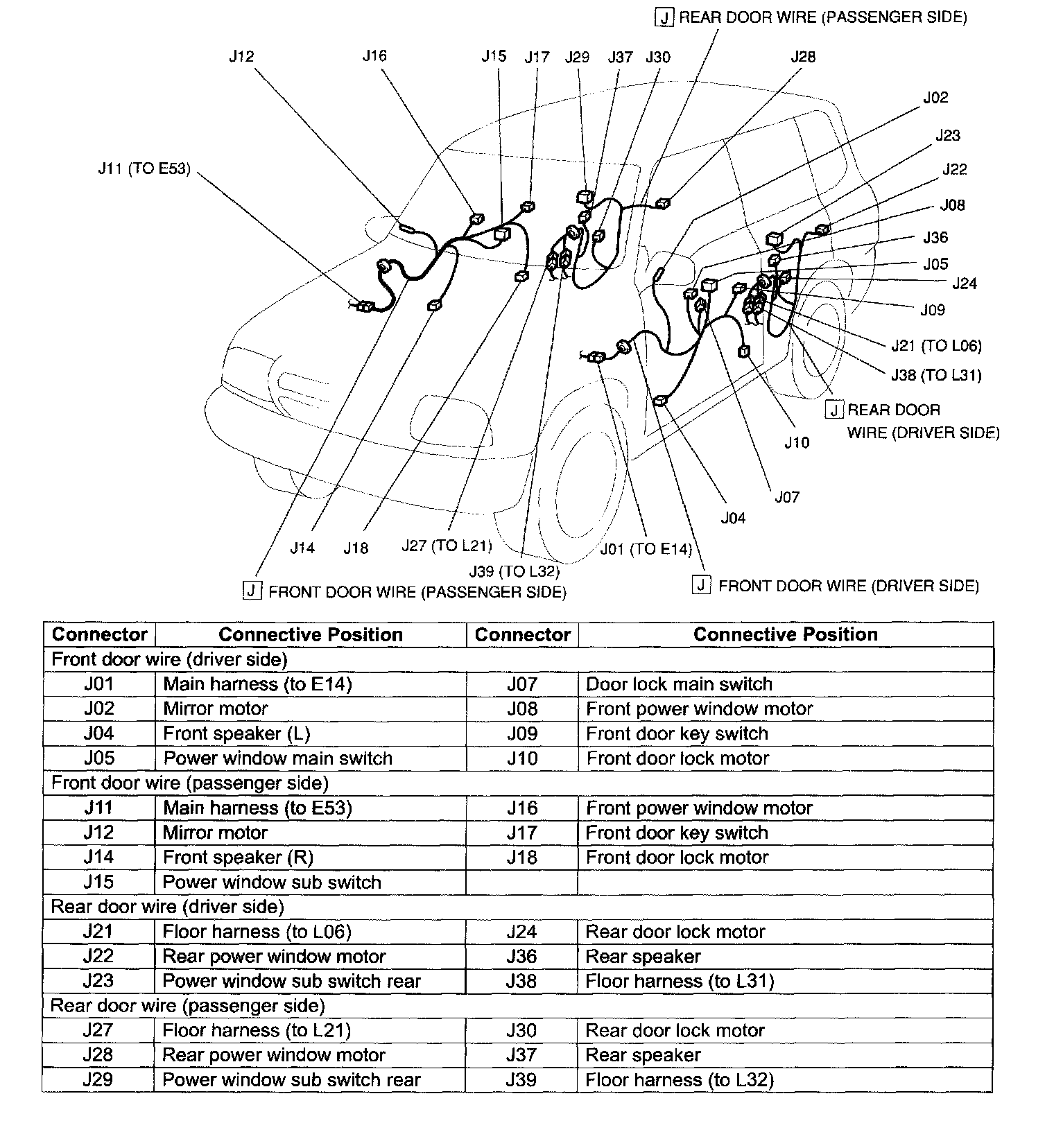

J: Front Door Wire, Rear Door Wire View / Connector Index - Connective Position:
