Engine Room

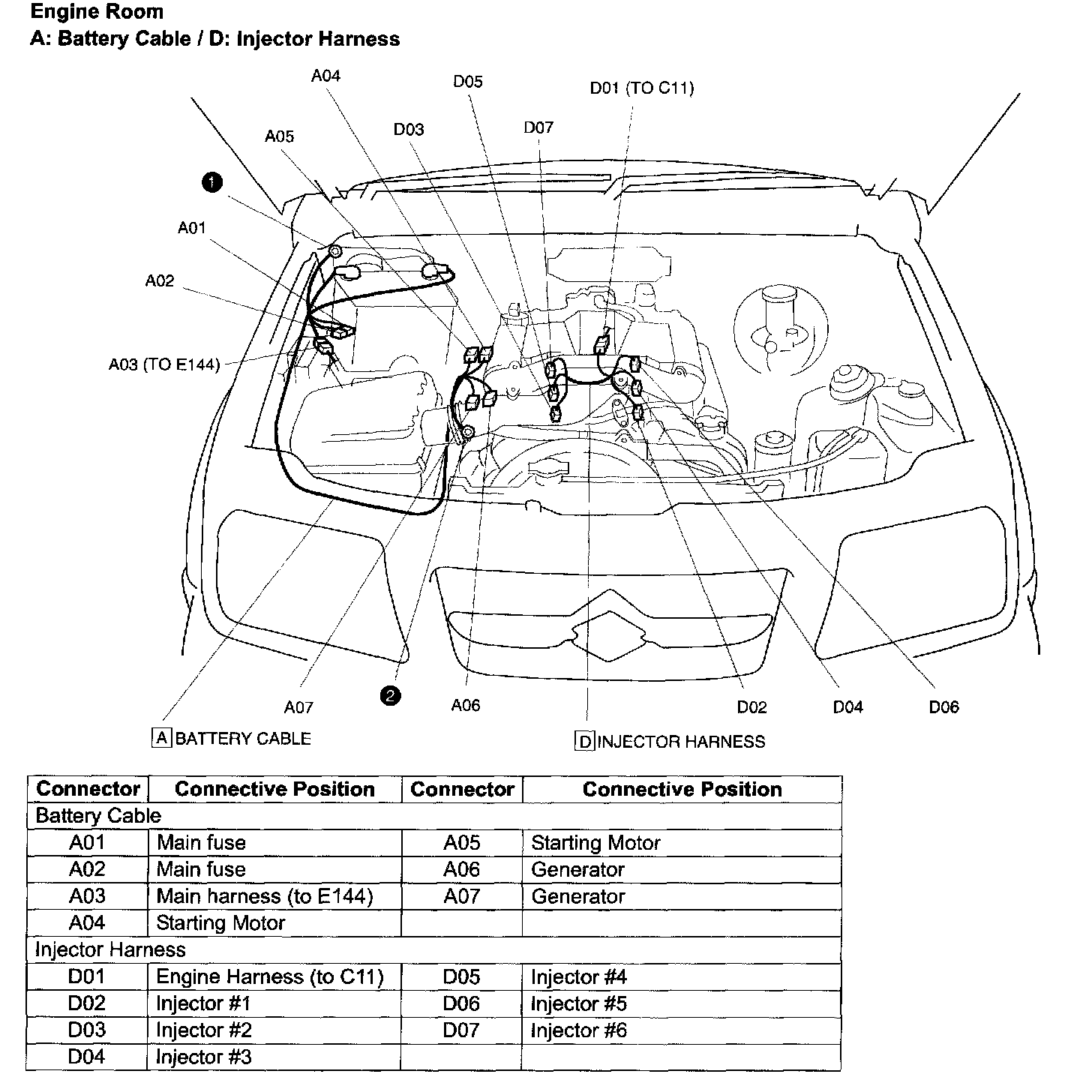

A: Battery Cable / D: Injector Harness - Connective Position:

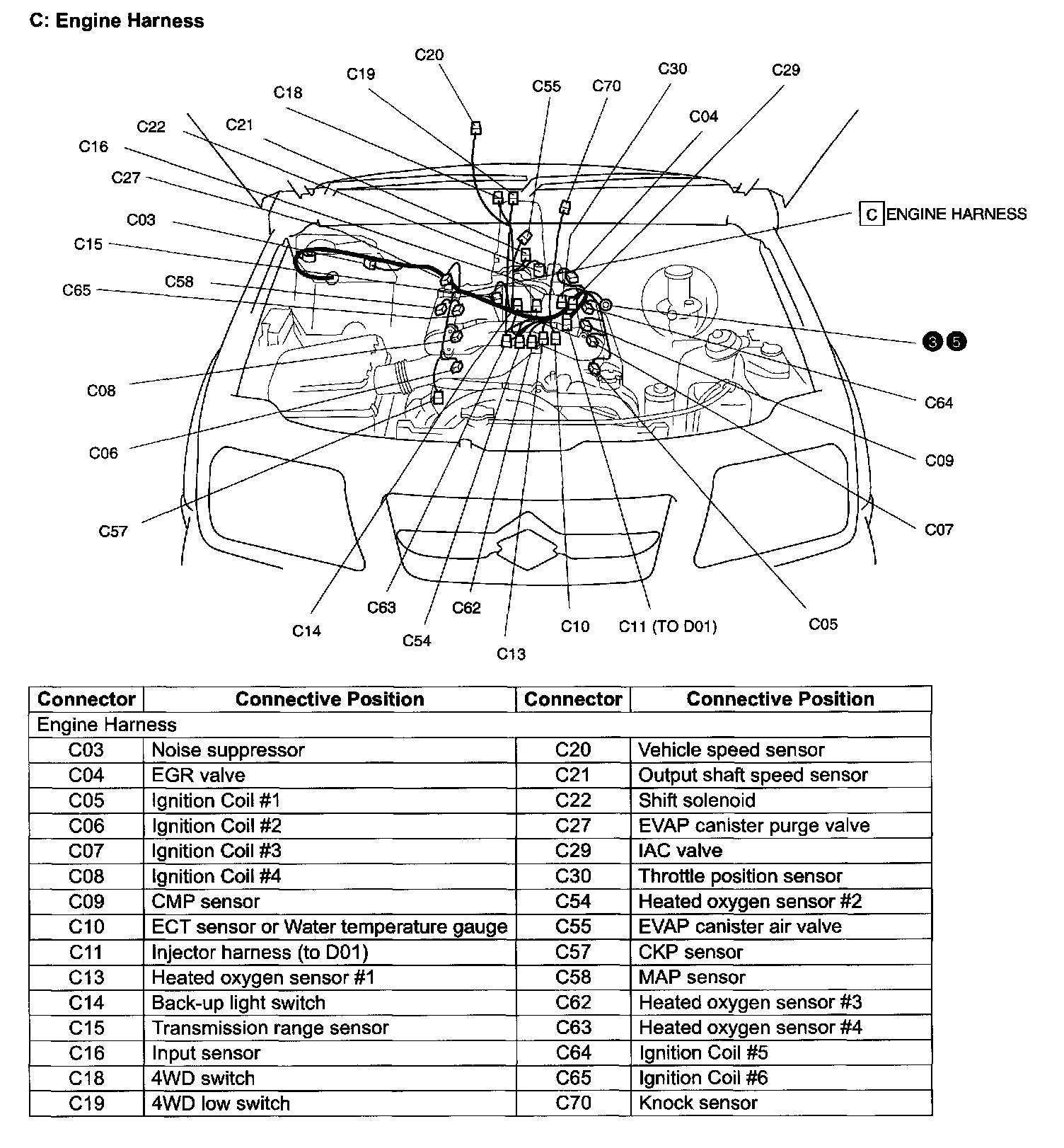

C: Engine Harness - Connective Position:

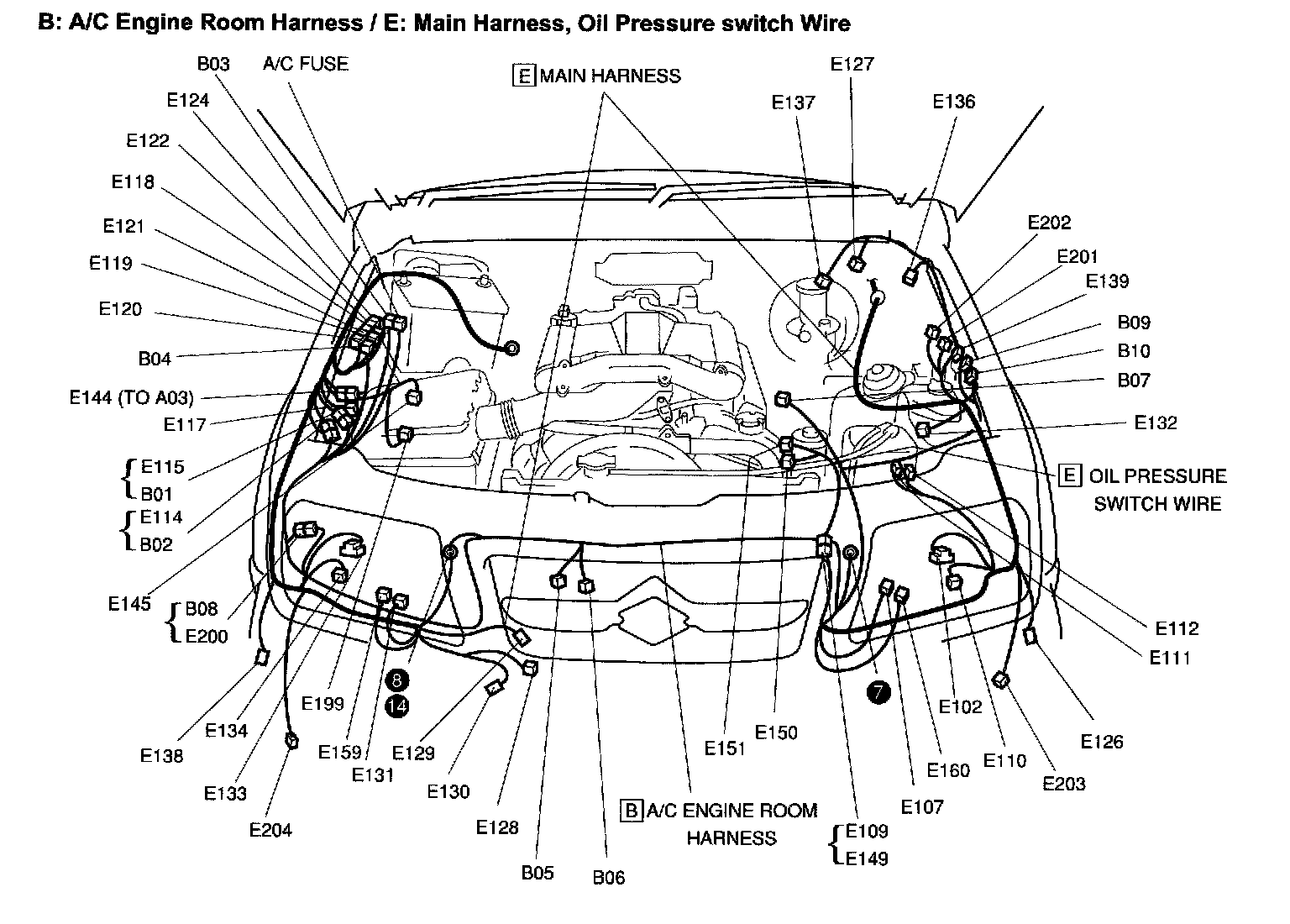

B: A/C Engine Room Harness / E: Main Harness, Oil Pressure Switch Wire (Connector View) - Connective Position:

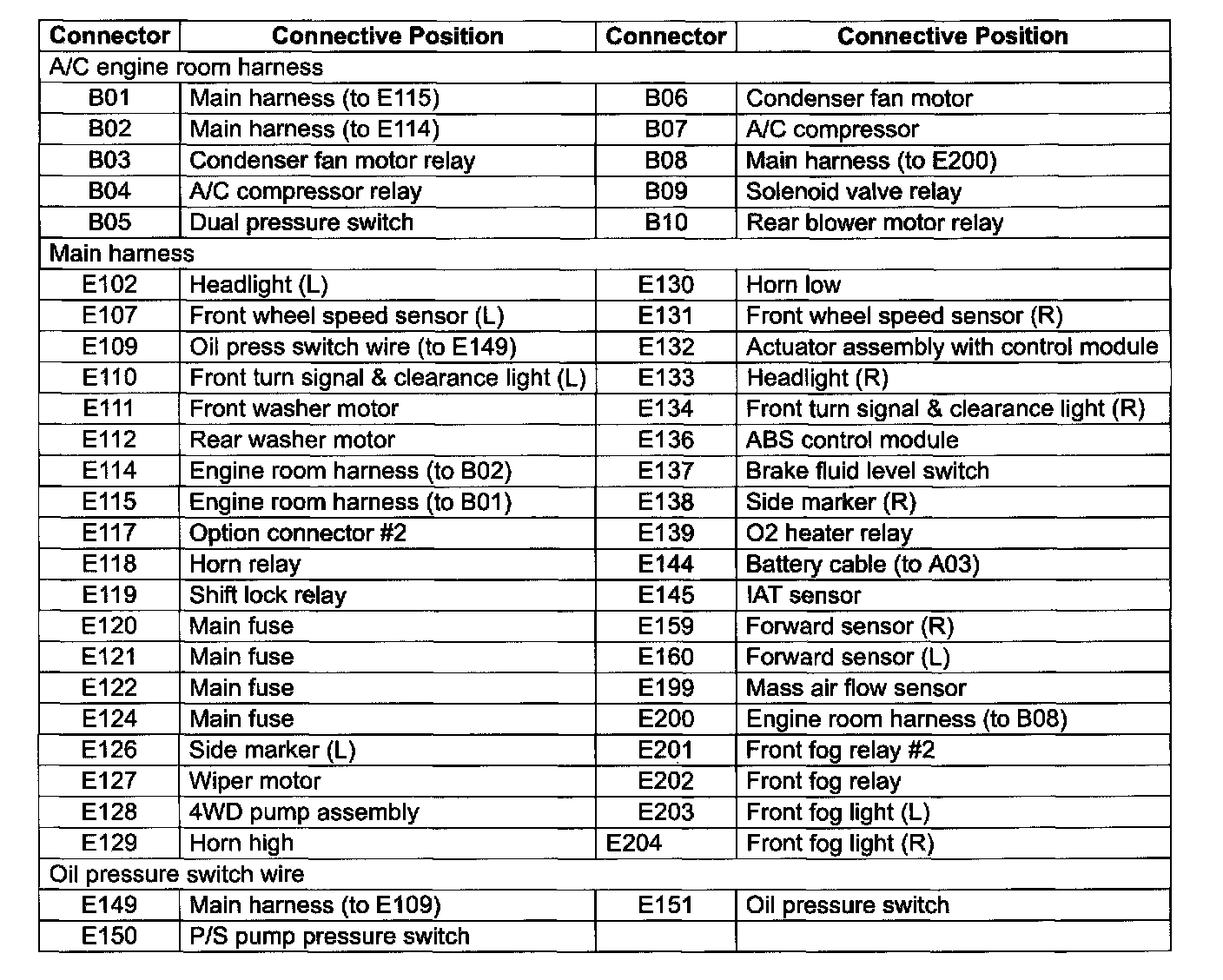

B: A/C Engine Room / E: Main Harness, Oil Pressure Switch Wire (Connector Index) - Connective Position:
