Locations
>>
Harness Locations
>>
Floor
Floor

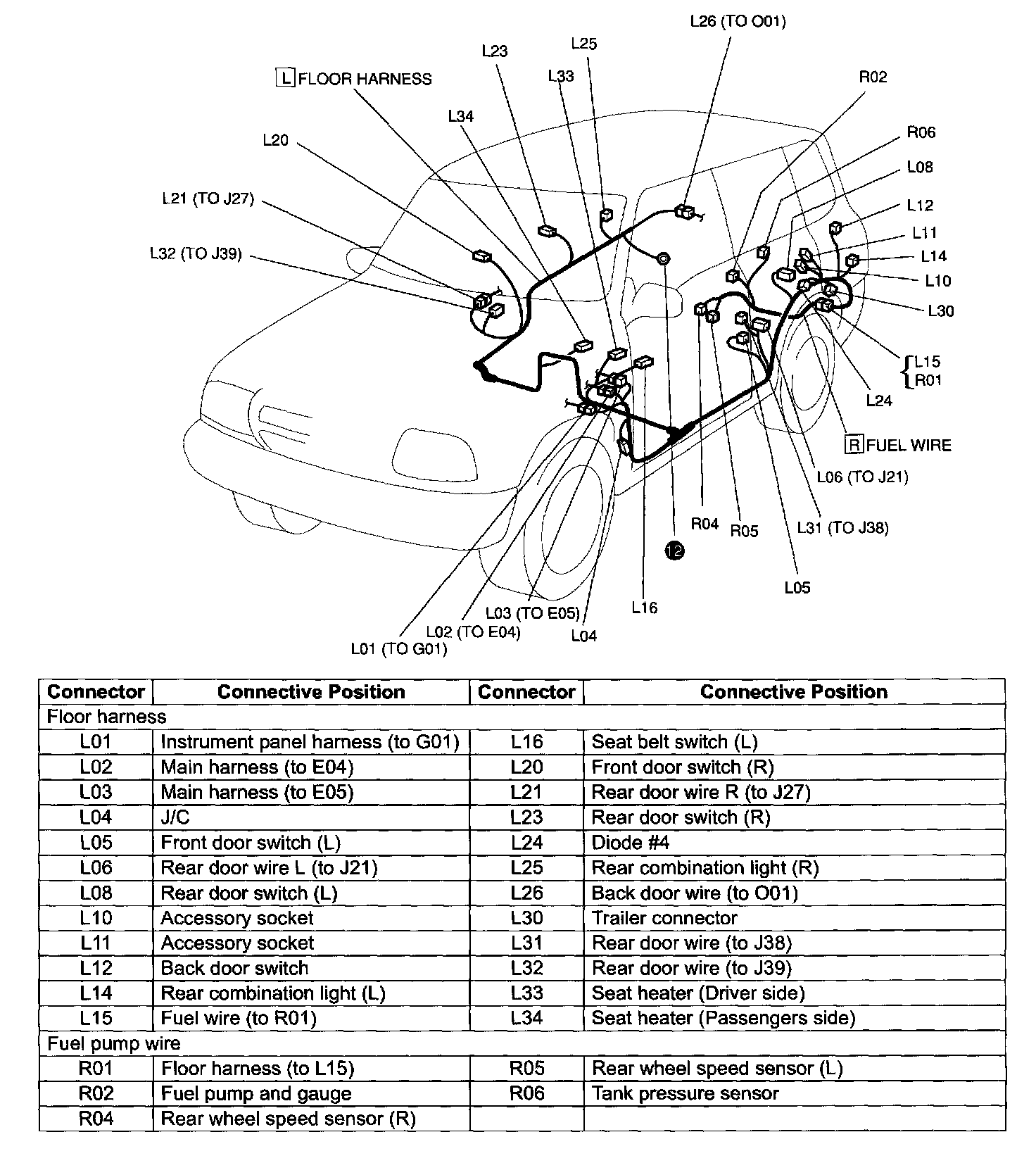

L: Floor Harness / R: Fuel Pump Wire3 View / Connector Index - Connective Position:
