Cabin Air Filter / Purifier: Service and Repair

A/C System Air Filter Element Removal and Installation

Removal

1. Disconnect negative cable at battery.
2. For vehicle with air bag system, disable air bag system. Refer to "Disabling Air Bag System:".

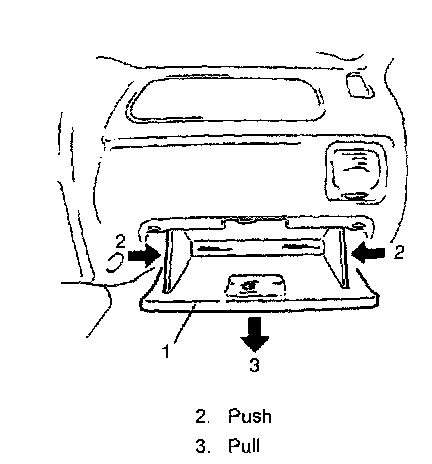

3. Pull down glove box (1).

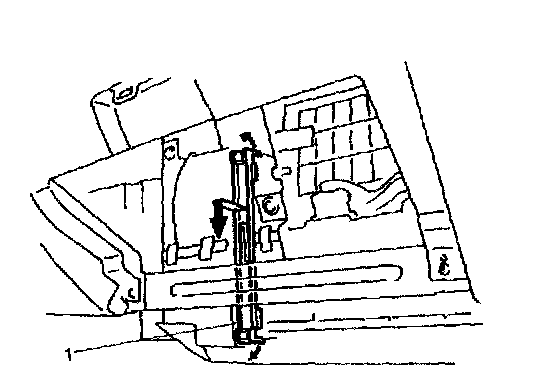

4. Remove filter cover (1).

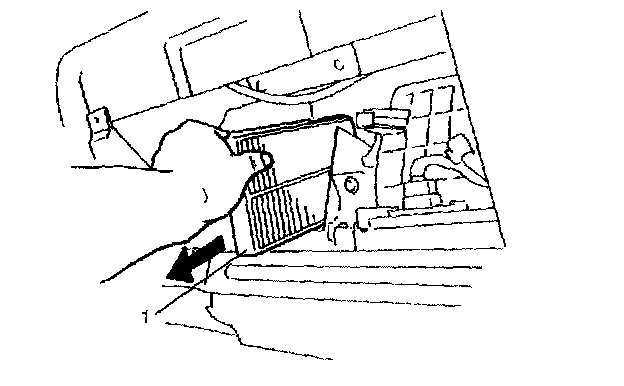

5. Pull out filter element (1). Pull out upper filter first then the lower one.




Installation
Reverse removal procedure for installation noting the followings:

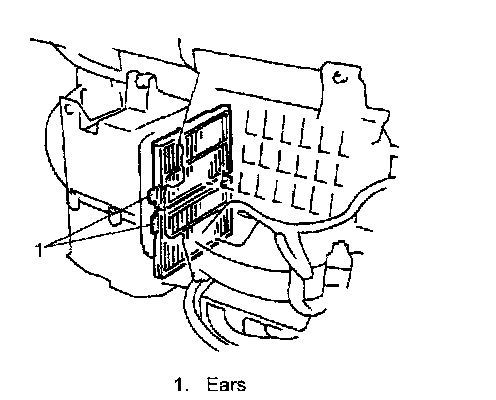

- Install filter into cooling unit directing arrow mark (2) on its end face to heater unit.
- Enable air bag system after installation. Refer to "Enabling Air Bag System:".




A/C System Air Filter Element Cleaning

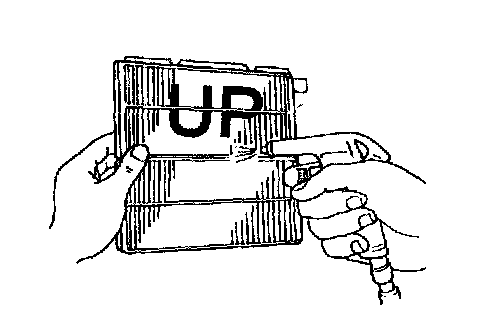

Blow off dust by compressed air from air outlet side of the filter element.
