Power and Ground Distribution: Testing and Inspection

Power Supply and Grounding Circuit
1. Disconnect negative (-) cable at battery.
2. Disconnect coupler of power door lock and keyless entry controller, and connect negative (-) cable at battery.
3. Check that the voltage and resistance between the following terminals are specifications. If check result is satisfactory, this circuit is OK.

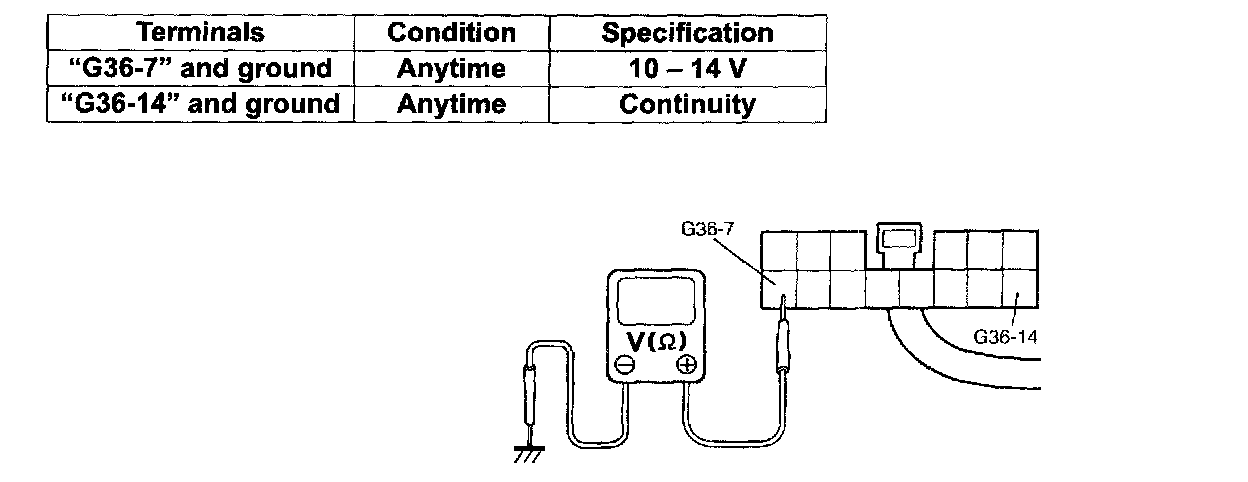

Power supply an grounding circuit (for keyless entry controller) specification
