Symptom Charts

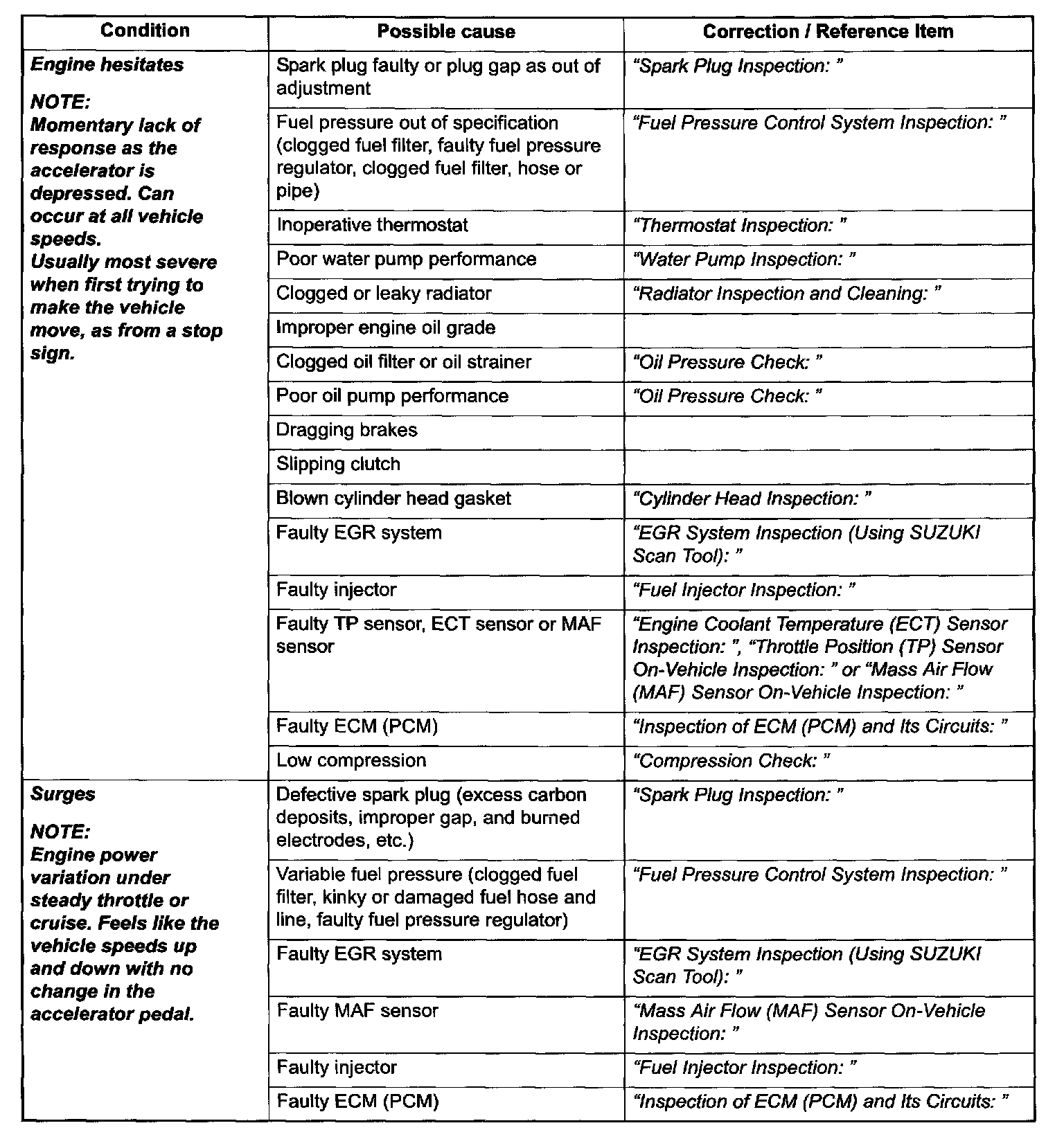

Condition / Possible Cause Part 1:

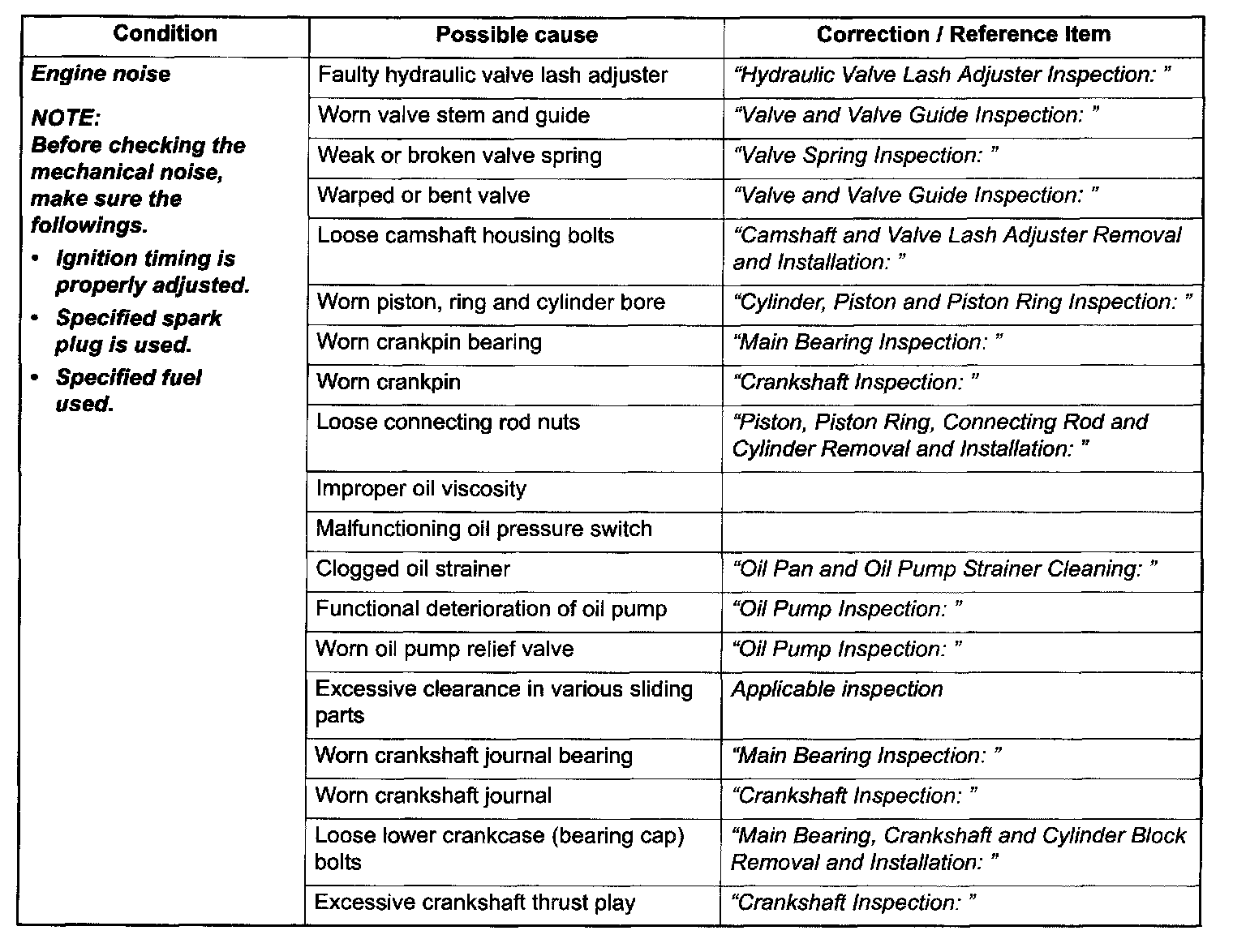

Condition / Possible Cause Part 2:

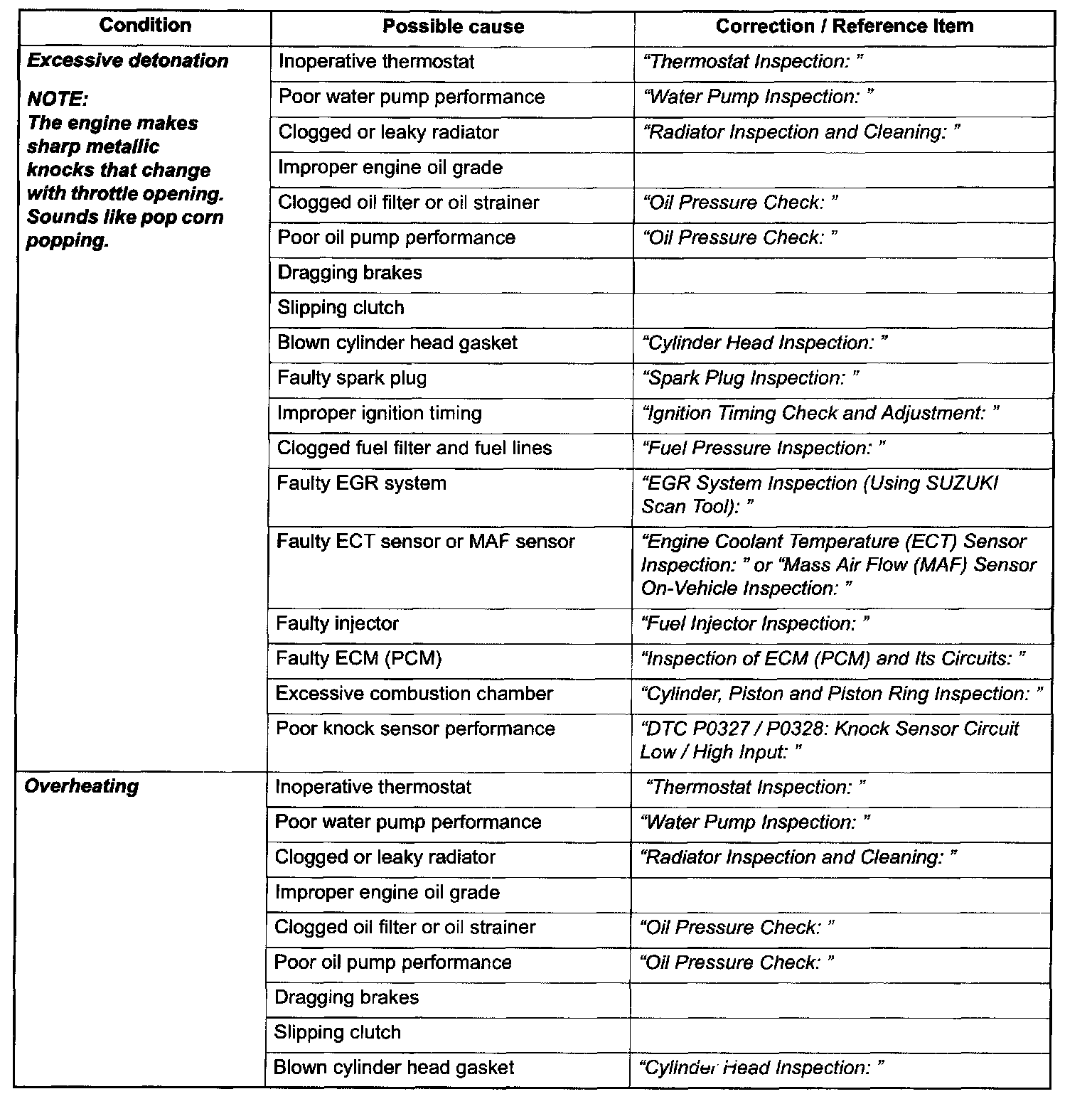

Condition / Possible Cause Part 3:

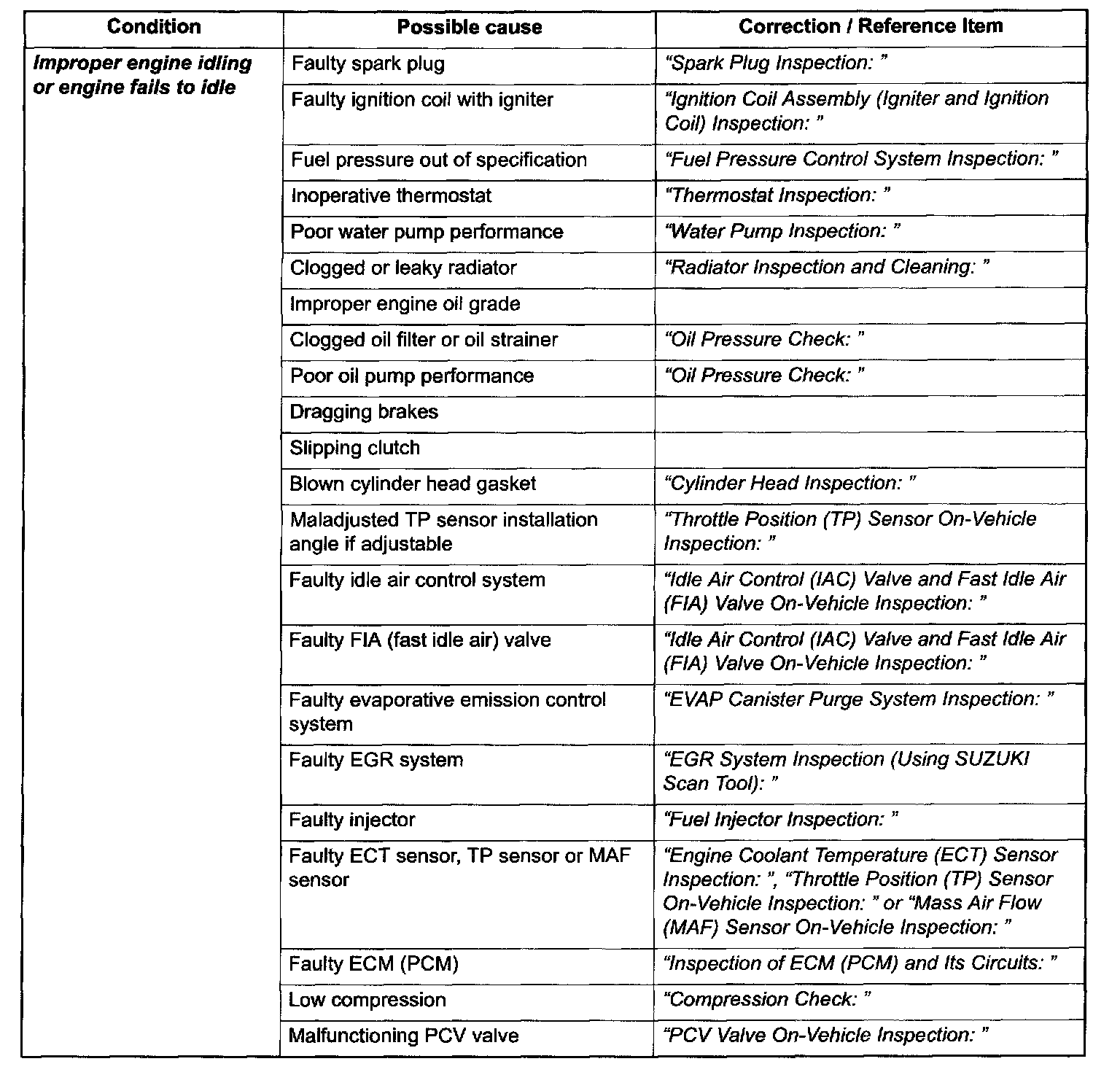

Condition / Possible Cause Part 4:

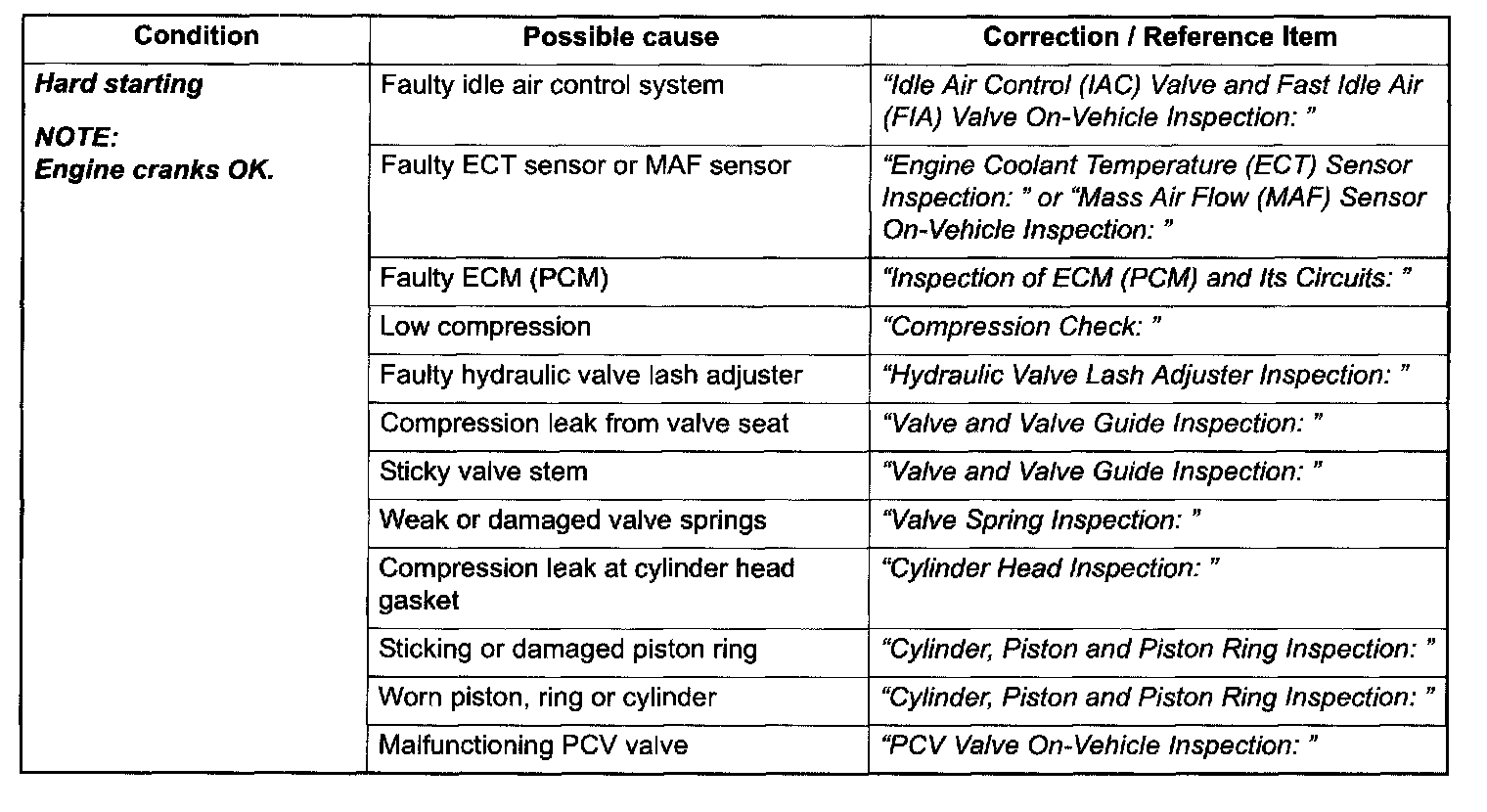

Condition / Possible Cause Part 5:

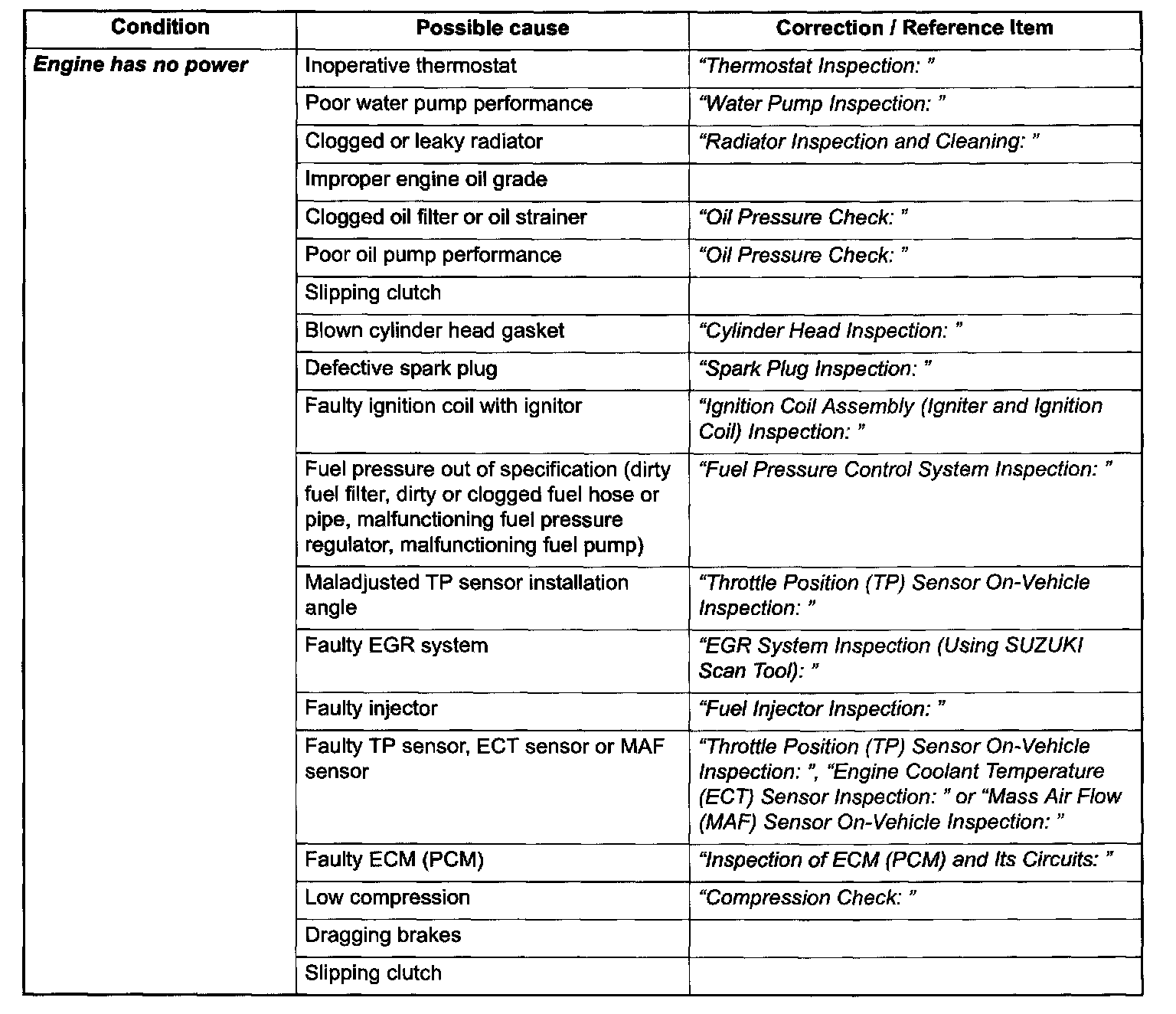

Condition / Possible Cause Part 6:

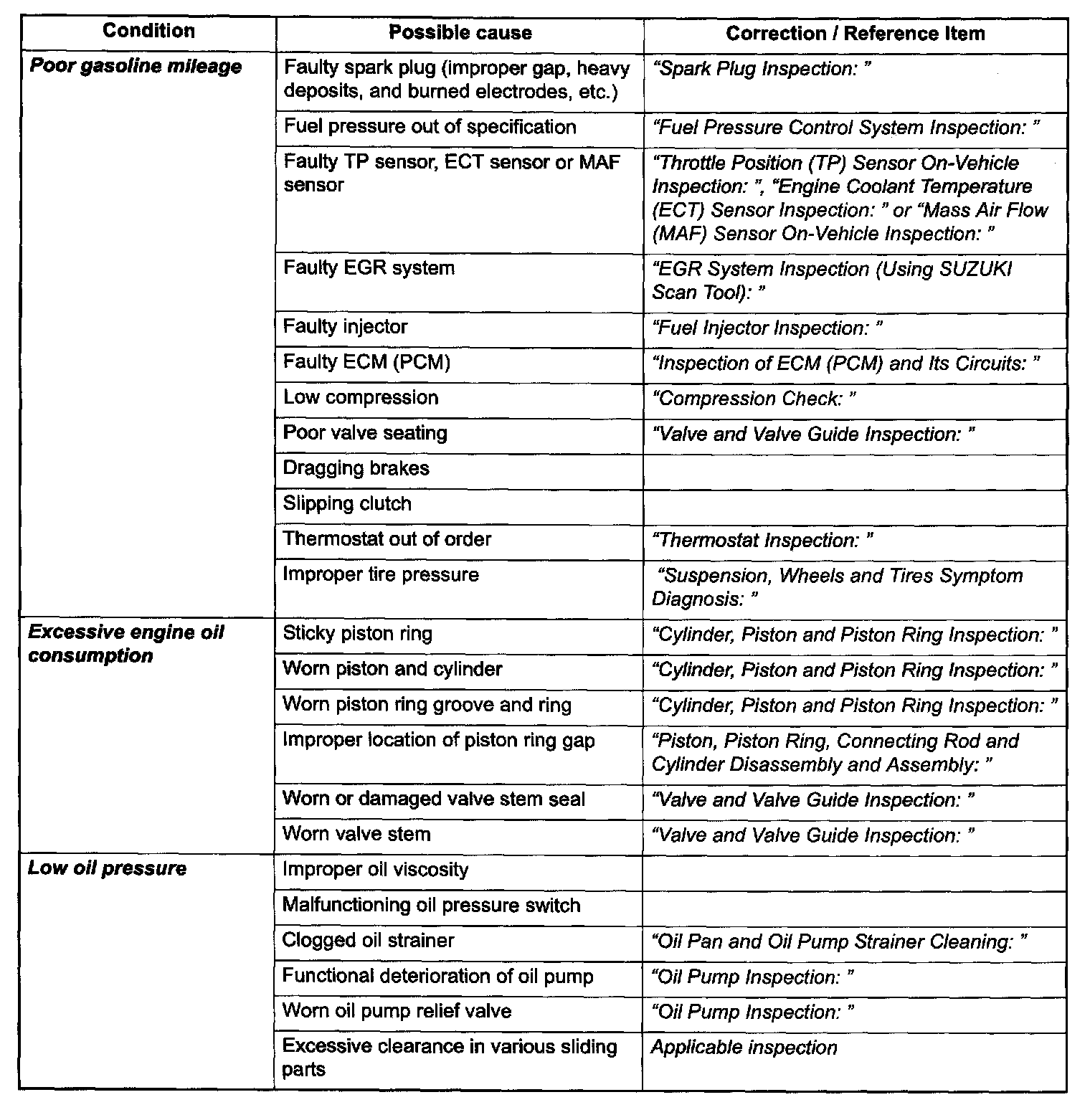

Condition / Possible Cause Part 7:

Perform troubleshooting when ECM (PCM) has detected no DTC and no abnormality has been found in Visual Inspection: "and "Engine Basic Inspection:".
