Indicator Check
Indicator Check

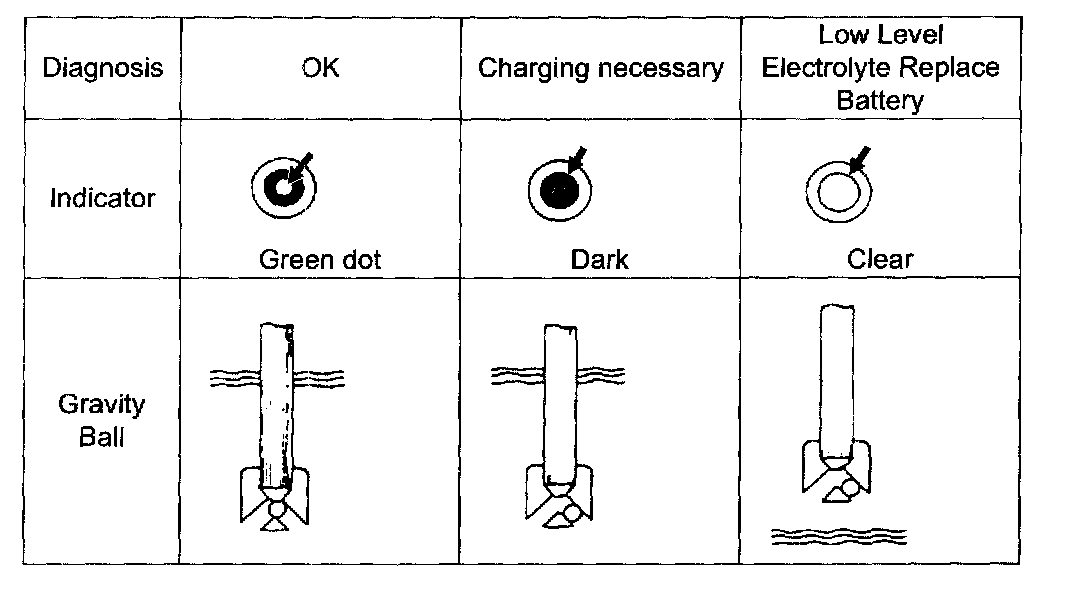

Check the state of indicator.
-
Green Dot: Proceed to load test.
-
Dark: Charge battery as outlined in "Battery Charging Procedures: " and proceed to load test.
-
Clear or Light Yellow: The battery must be replaced.
