Differential Assembly: Tools and Equipment

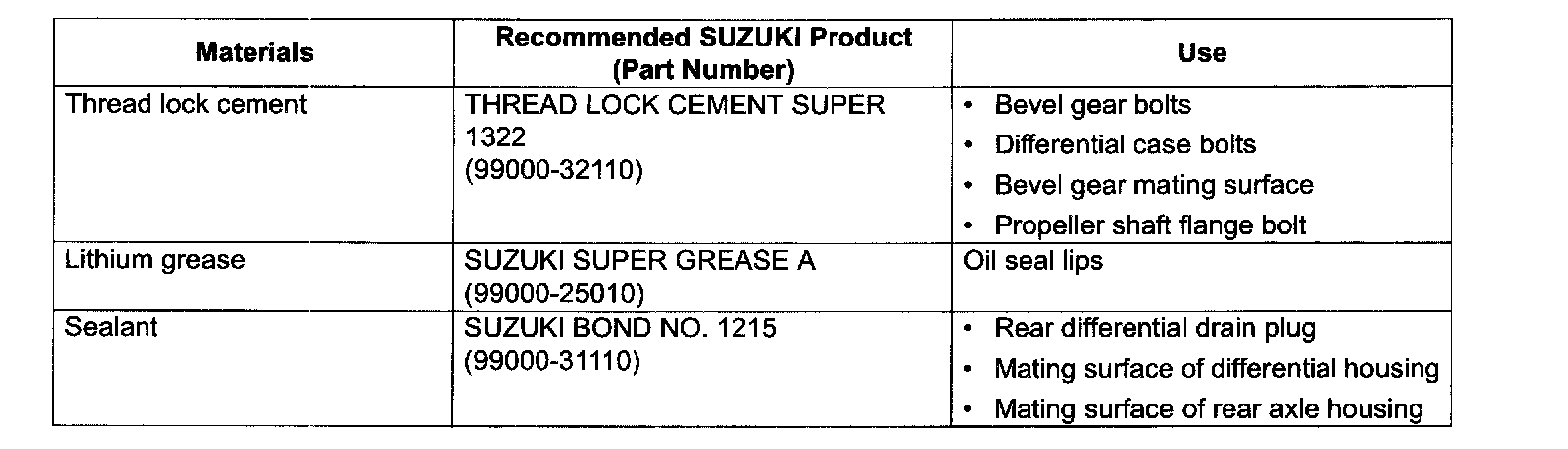

Required Service Material

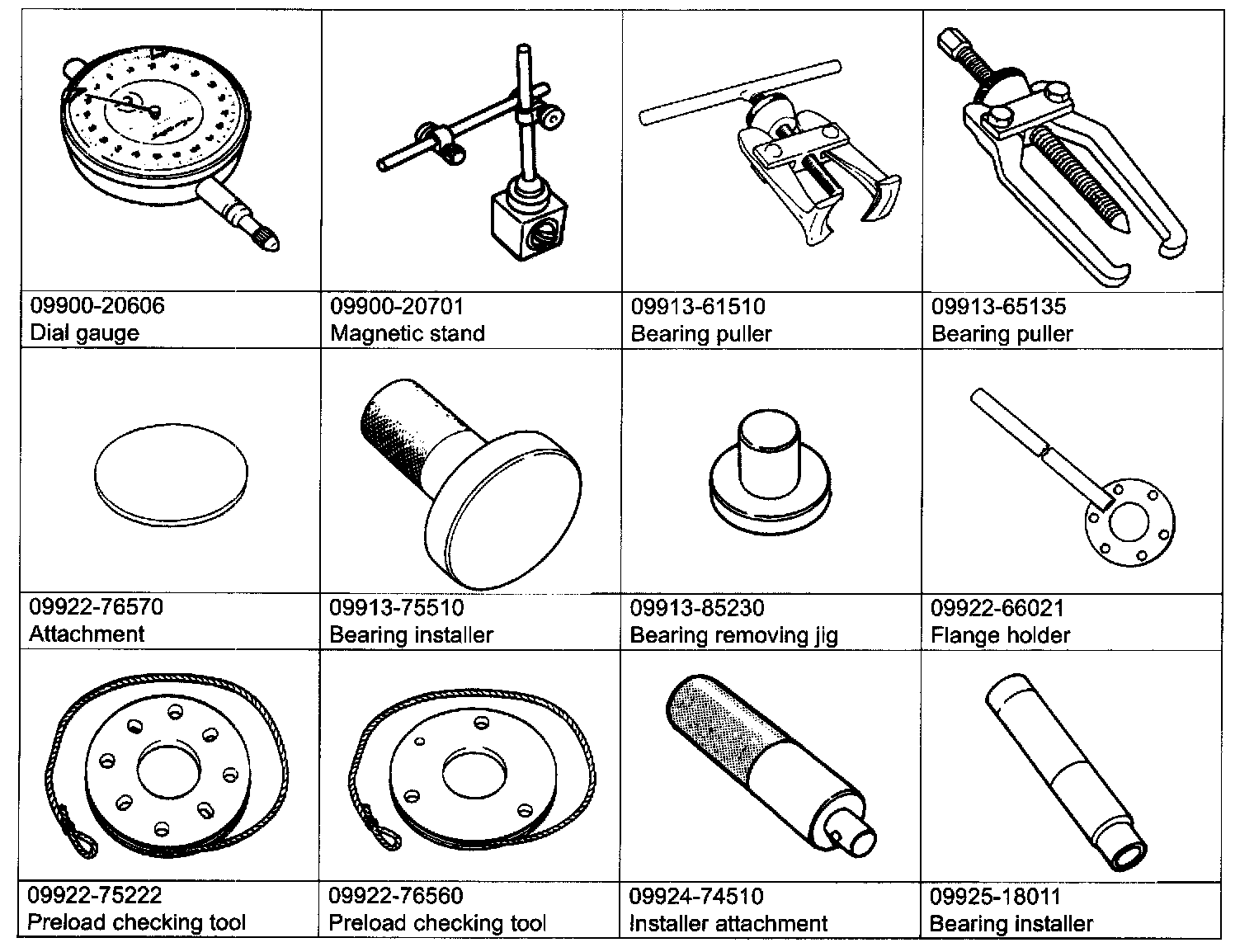

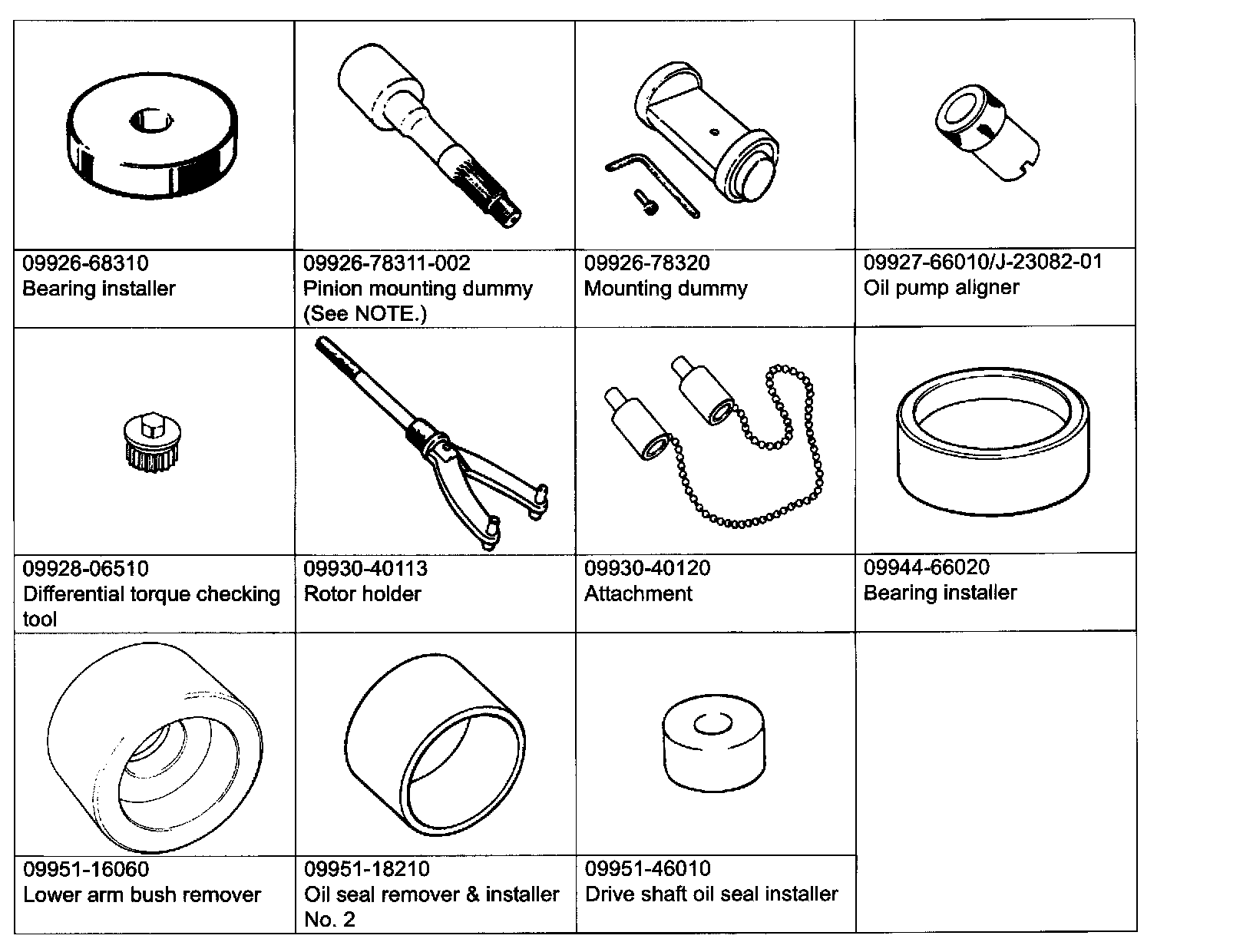

Special Tool








NOTE: This tool is constituent of tools with 09926-78311
