Defogger Switch
Defogger Switch

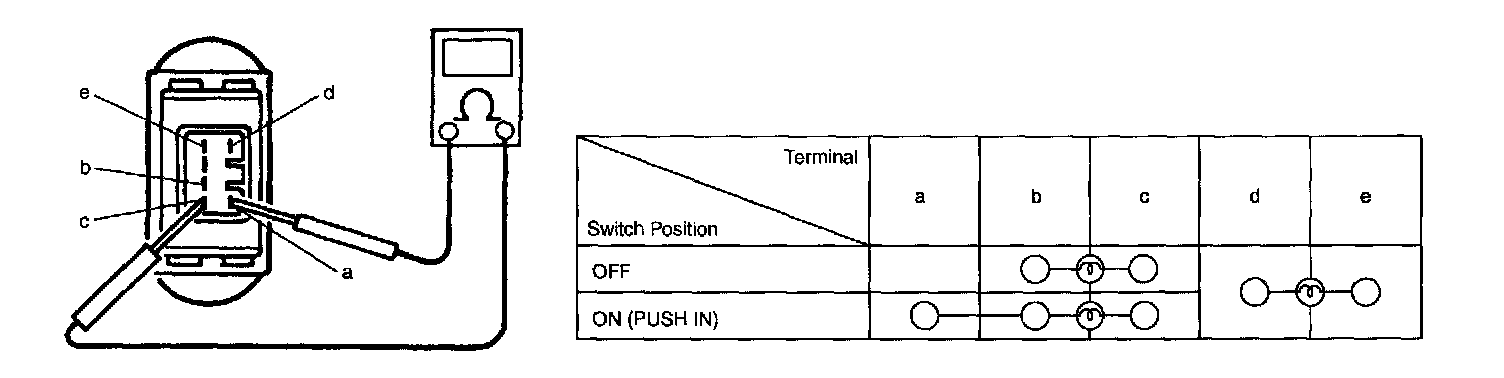

Defogger Switch Inspection
Use a circuit tester to check defogger switch for continuity. If switch has no continuity between terminals, replace.
