Windshield Washer Pump: Testing and Inspection

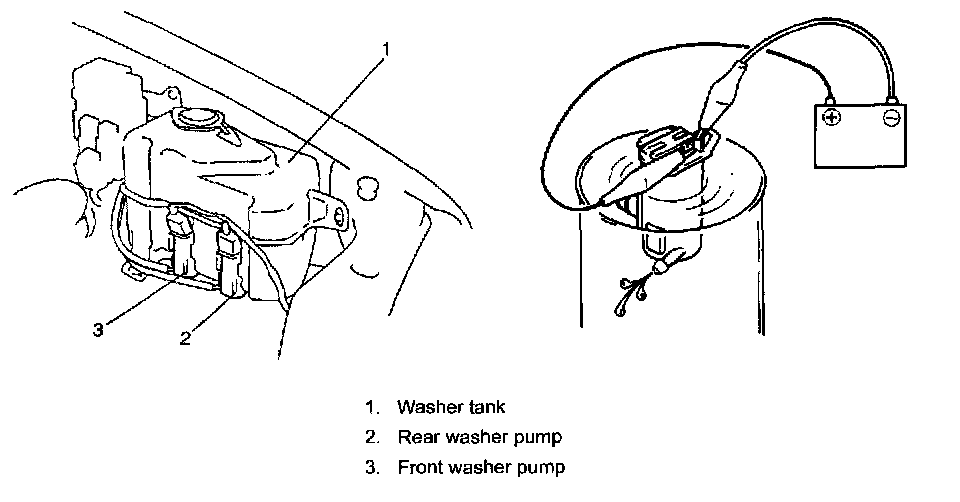

Washer Pump Inspection (Front and Rear)
Connect battery (+) and (-) terminals to pump (+) and (-) terminals respectively to check pumping rate.

Check for both front and rear washer pump.




Washer pump pumping rate
Front: More than 1.2 L/min. (2)5 US pt./min., 2.1 Imp pt./min.).
Rear: More than 1.0 L/min. (2)1 US pt./min., 1.8 Imp pt./min.).
