Brake Fluid Level Sensor/Switch: Testing and Inspection

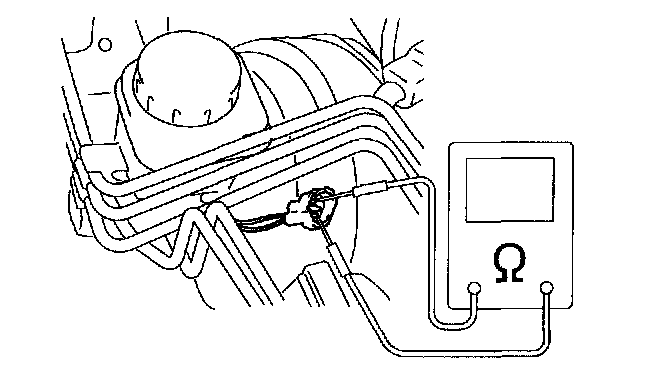

Brake Fluid Level Switch On-Vehicle Inspection
Use an ohmmeter to check switch for continuity.
If found defective, replace switch (reservoir).




Brake fluid level switch specification
OFF position (float up): No continuity
ON position (float down): Continuity
