Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2002
>>
XL-7 Plus 4WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
E Connectors
E Connectors
NOTE:

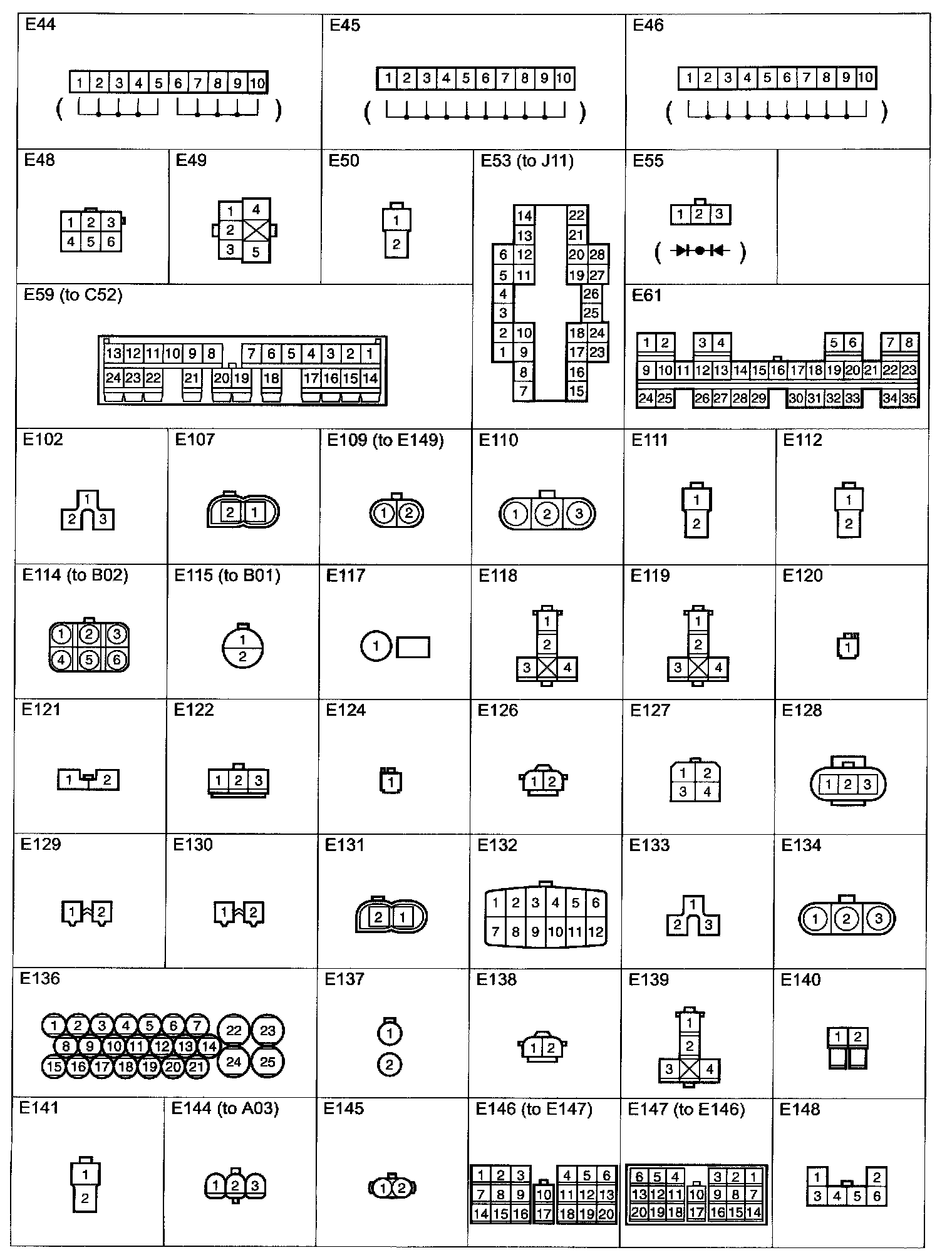

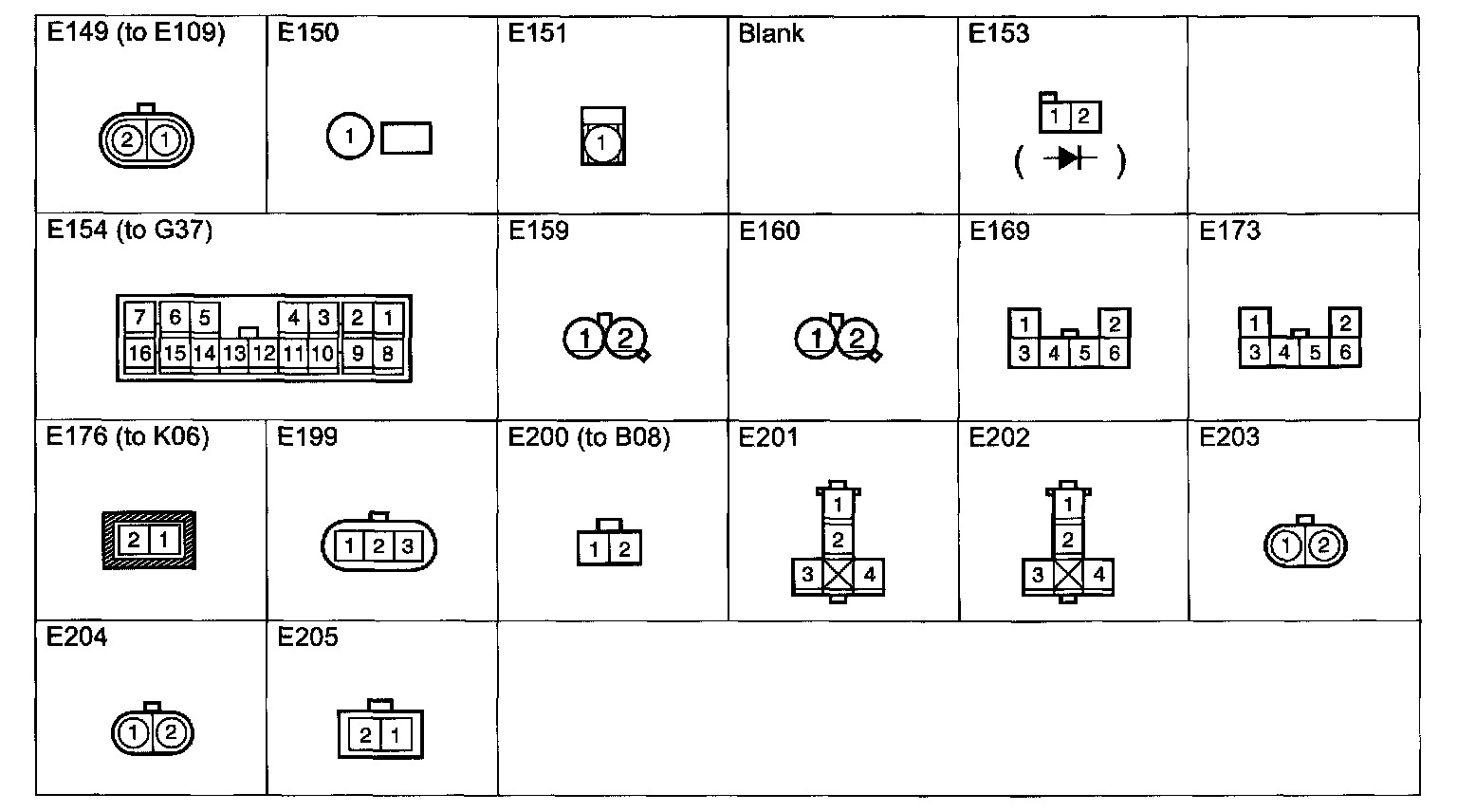

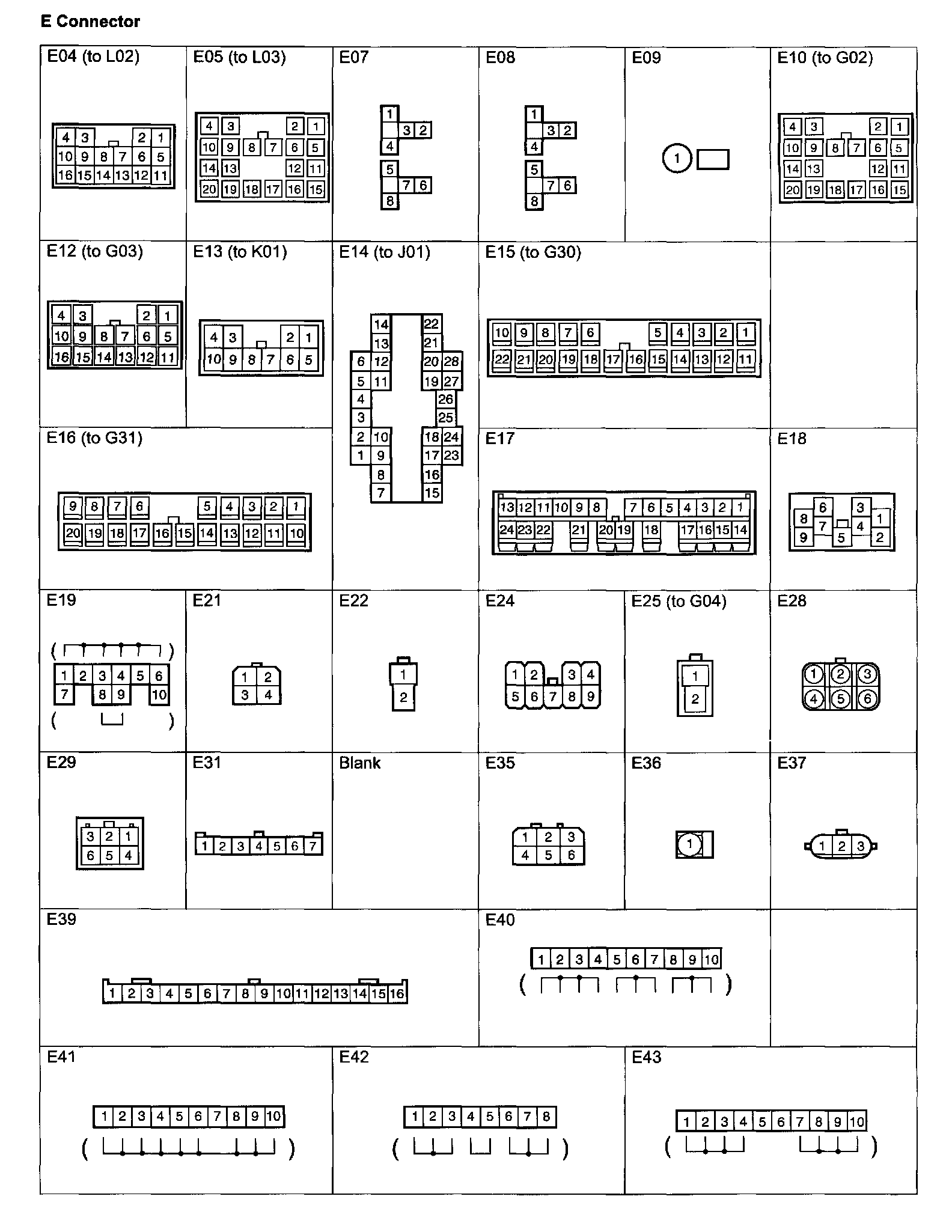

The illustrations below show the harness side connectors, but not the component side connectors.
��AE04 - E43:
E44 - E148:
E149 - E205:
