G Connectors
NOTE:
The illustrations below show the harness side connectors, but not the component side connectors.

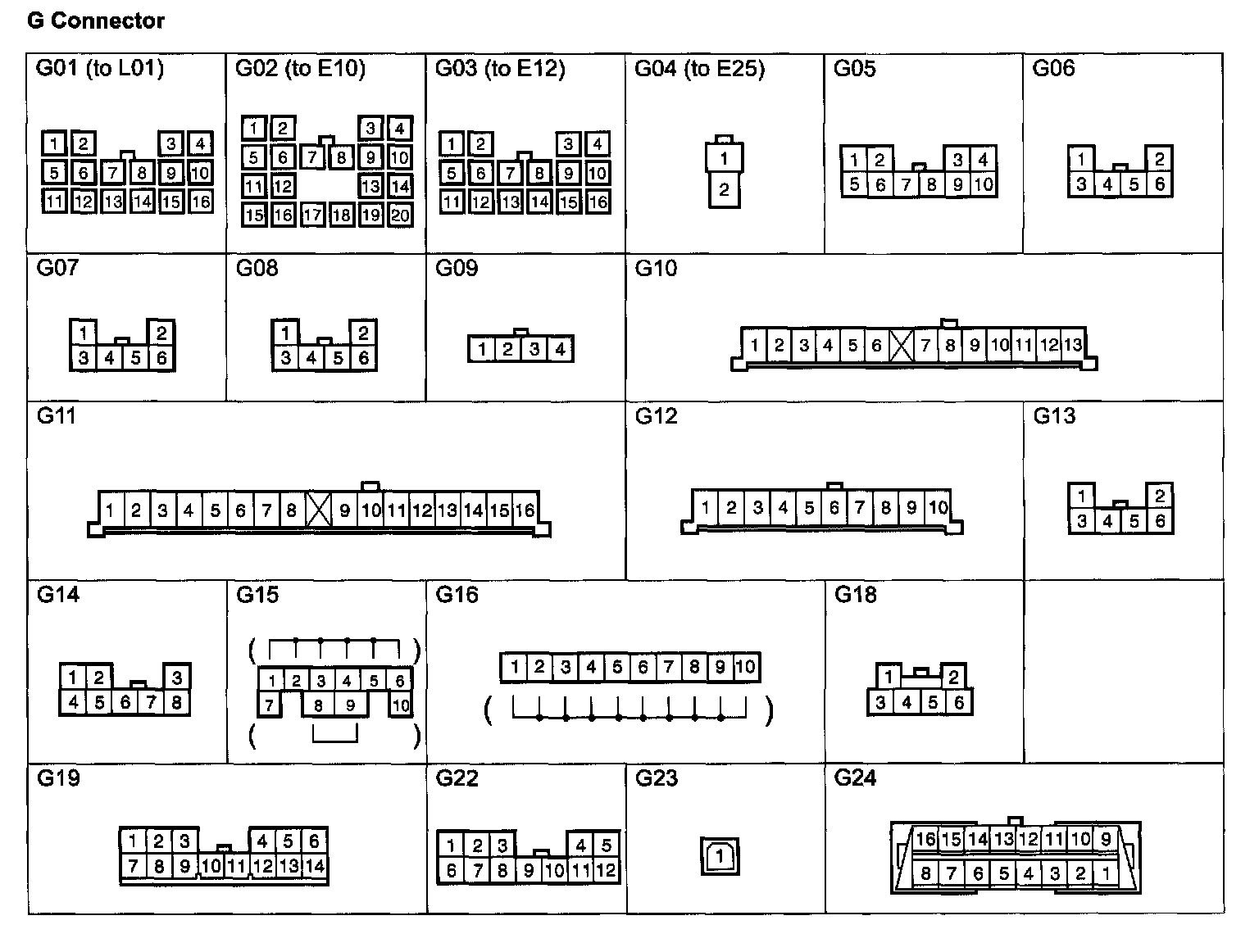

G01 - G24:

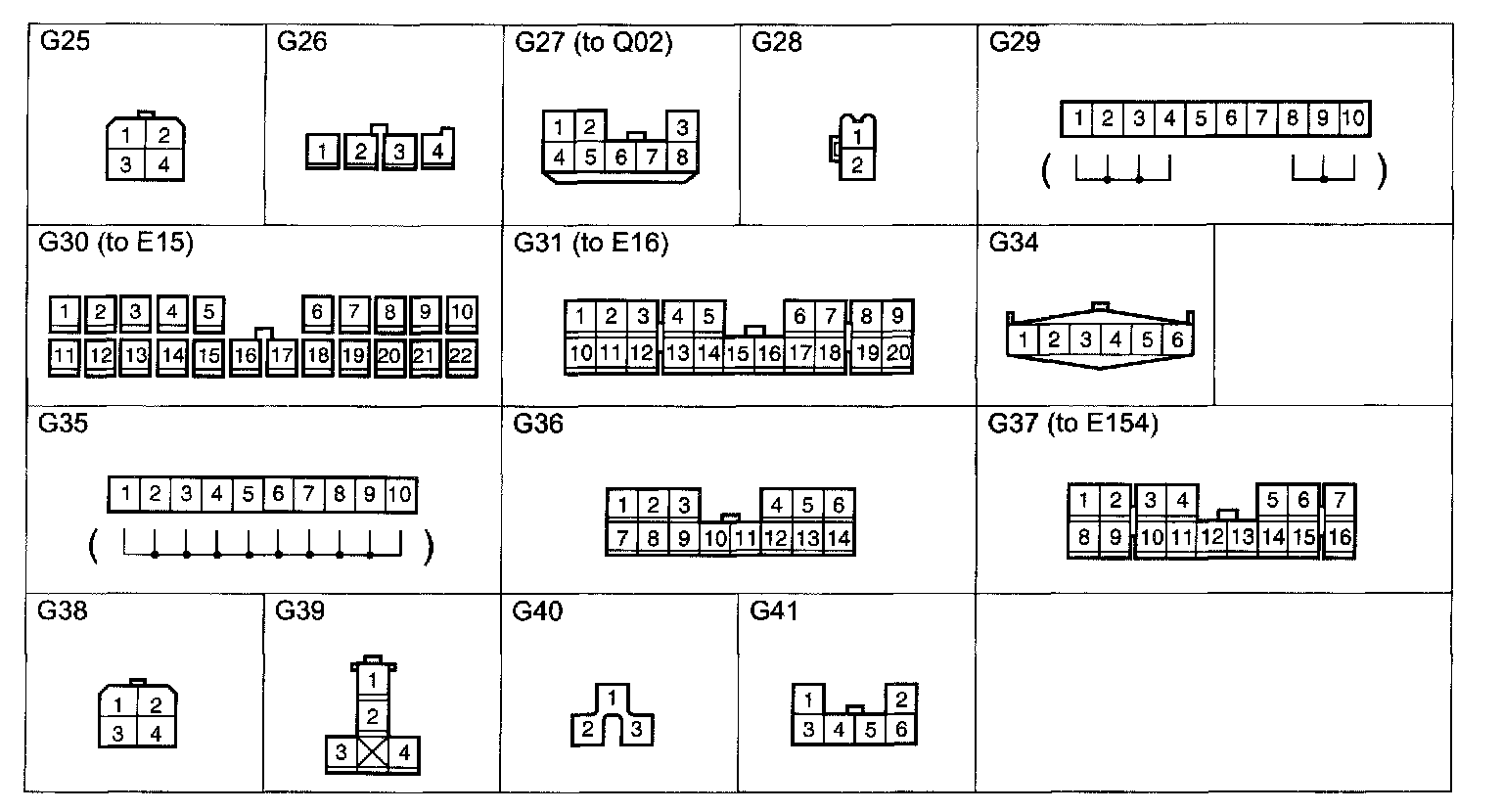

G25 - G41:
