Without Cruise Control Module

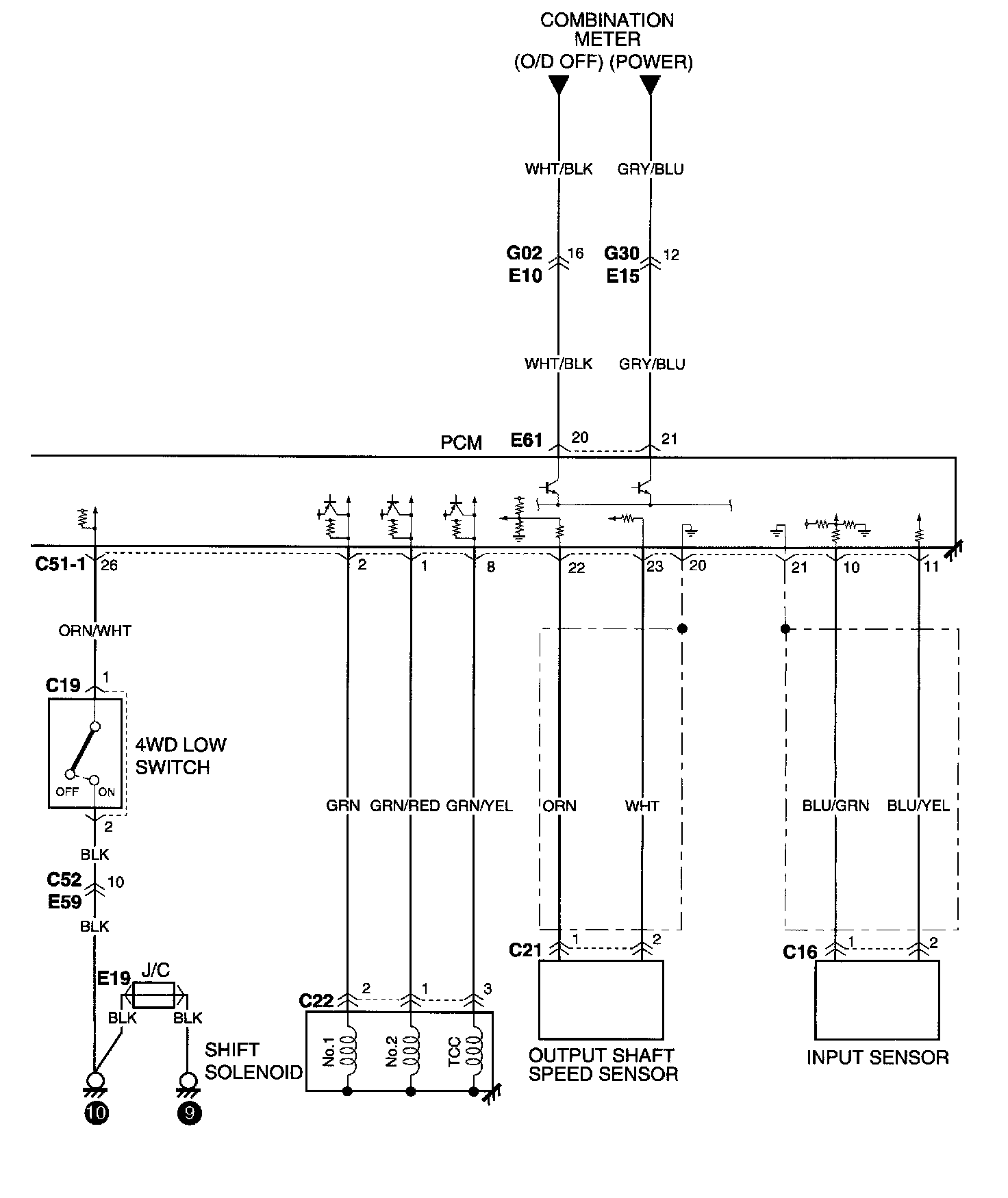

Vehicle Without Cruise Control Module Part 1:



Vehicle Without Cruise Control Module Part 2:
