Receiver Dryer: Service and Repair

Desiccant Removal and Installation

Removal

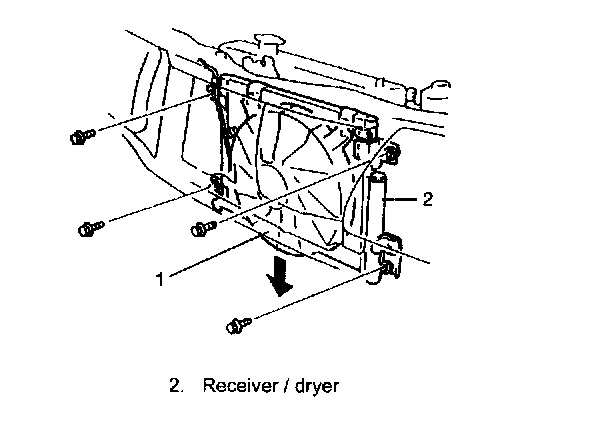

1. Remove condenser assembly (1) from vehicle referring to "A/C Condenser Assembly Removal and Installation:".
2. Remove circlip and receiver / dryer cap.




3. Remove the filter (1) from the receiver / dryer (2).

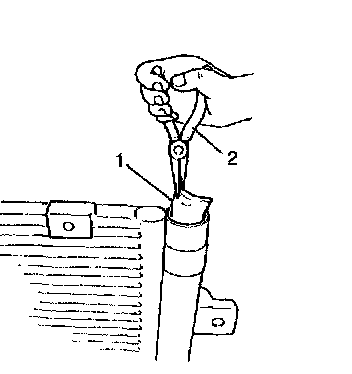

4. Remove the desiccant (1) using pliers (2).




Installation
Reverse removal sequence to install desiccant, according to instruction manual with supply parts.

NOTE:
- When replacing desiccant, add 40 cc of refrigerating oil the same as compressor oil.
- Do not remove the dryer from the plastic bag until just before inserting it into the receiver / dryer.

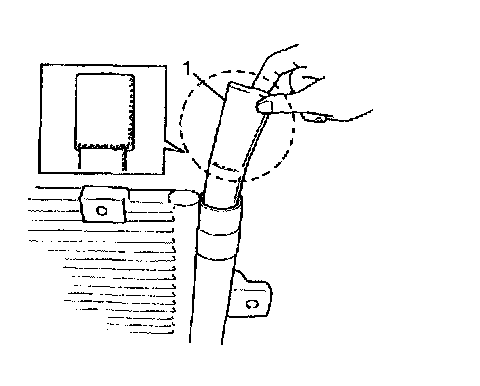

- Install the desiccant (1) with its double-layer portion facing the bottom of the receiver / dryer.
