Home >> Suzuki >> 2002 >> XL-7 Plus 4WD V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Schematic

Schematic

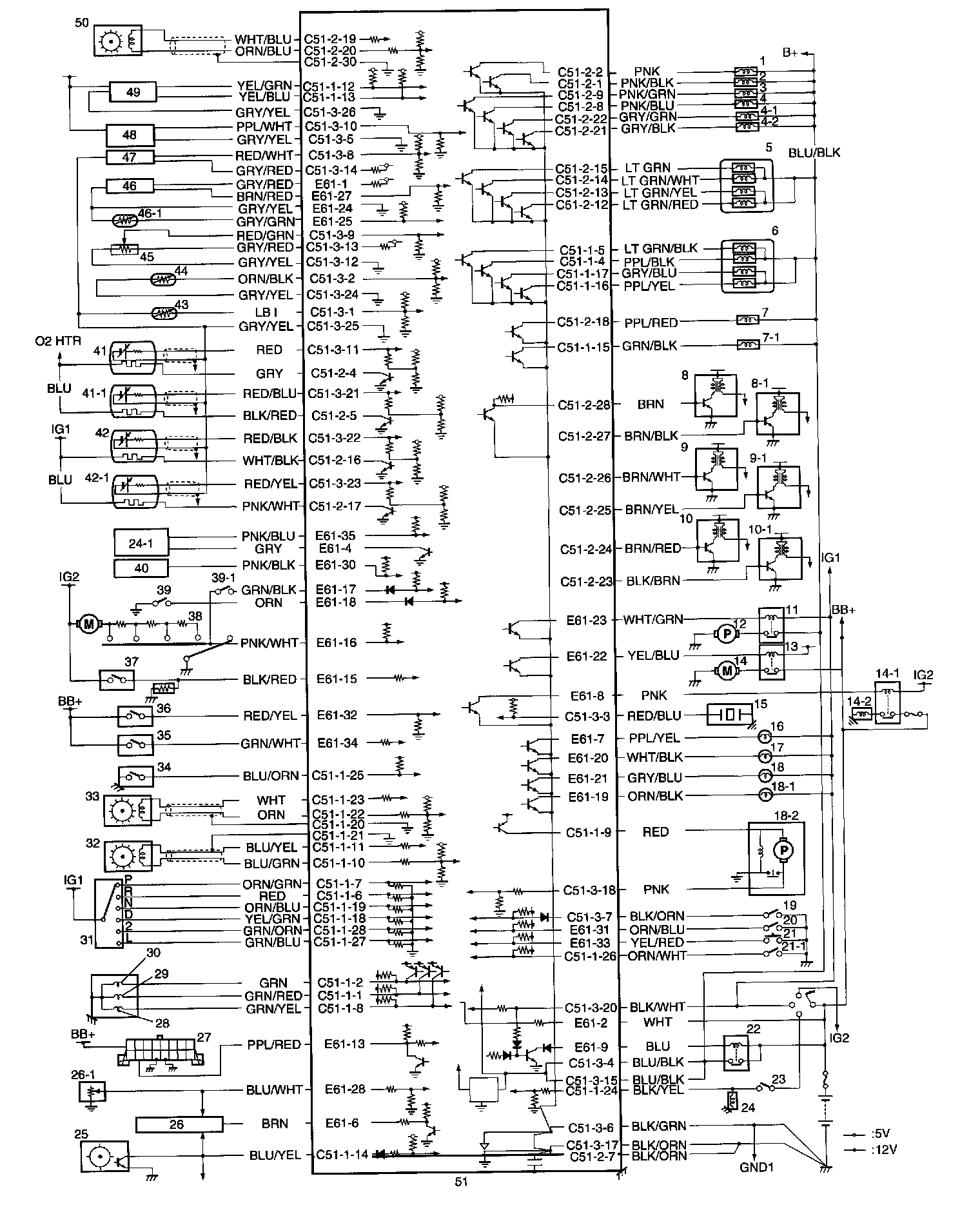

Electronic Control System Wiring Diagram:

Engine And Emission Control System Diagram:
