Alternator Brush: Testing and Inspection

Brush and Brush Holder
Check each brush for wear by measuring its length as shown. If brush is found worn down to service limit, replace brush.

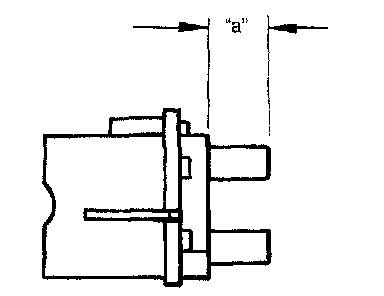

Exposed brush length "a"
Standard: 10.5 mm (0.413 in.)
Limit: 1.5 mm (0.059 in.)
