Seat Cover: Service and Repair

Seat Covers Removal and Installation

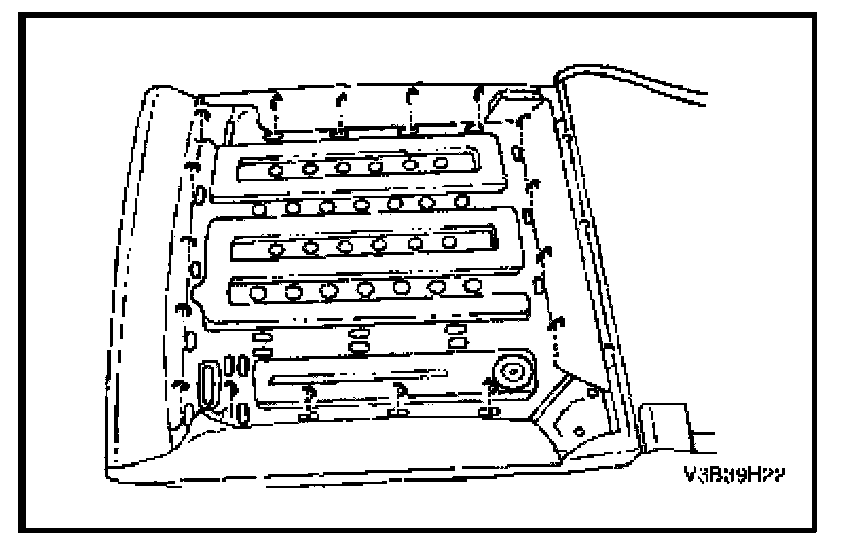

Seat Covers Removal

1. Remove the seatback and/or cushion. Refer to Front Seatback Removal and Front Seat Cushion Removal.
2. Remove the hog rings from the seatback and/or the cushion.




3. Remove the seat cover from the seatback and/or the cushion.

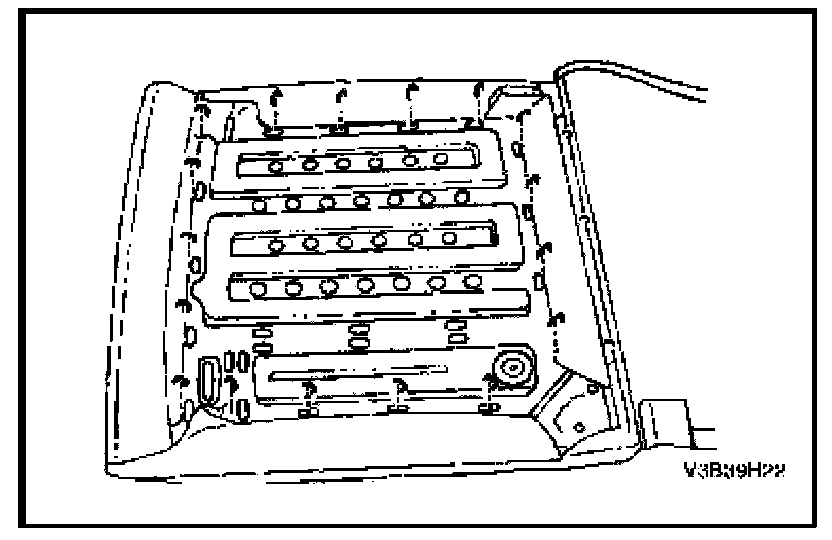

Seat Covers Installation

1. Install the seat cover onto the seatback and/or the cushion with new hog rings.




2. Install the seatback and/or the seat cushion. Refer to Front Seatback Installation and/or Front Seat Cushion Installation.
