Rear

Rear Wheel Speed Sensor Removal and Installation
Removal
1. Disconnect the negative battery cable.
2. Raise and suitably support the vehicle.
3. Disconnect the rear wheel speed sensor electrical connector.

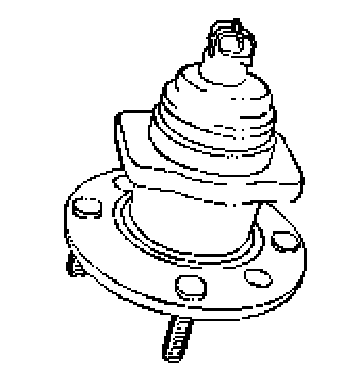

4. Remove the rear hub unit from the knuckle assembly, because the wheel speed sensor is not serviceable separately.

Installation Notice





The wheel speed sensor is served as an assembly (Hub-Wheel Speed Sensor), therefore, the additional working procedure for air gap is not needed.
