Splash Shield Removal and Installation

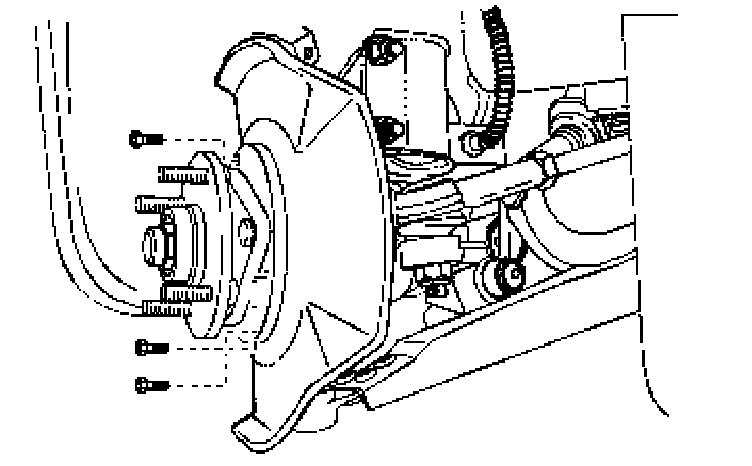

Splash Shield Removal
1. Remove the rotor.
2. Remove the bolts and the lockwashers for the splash shield from the steering knuckle.

3. Remove the splash shield.

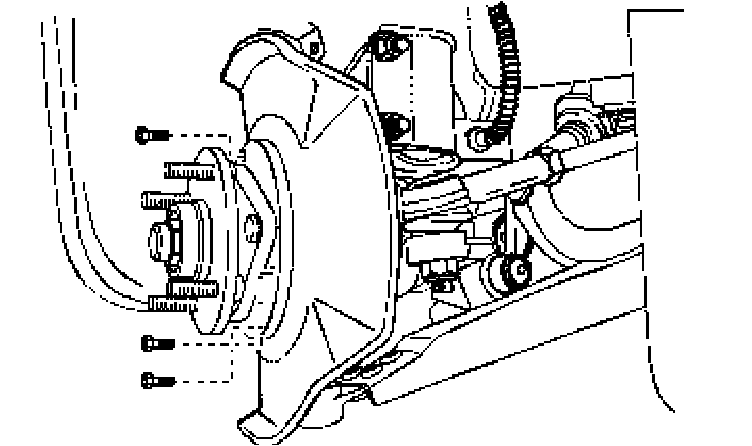

Splash Shield Installation
1. Install the splash shield.
2. Secure the splash shield to the steering knuckle with the bolts and the lockwashers.
Tighten: Tighten the splash shield-to-steering knuckle bolts to 25 Nm (18 ft. lbs.).

3. Install the rotor.
