Daytime Running Lamp: Service and Repair

Daytime Running Lamp Module Removal and Installation

Daytime Running Lamp Module Removal

1. Disconnect the negative battery cable.
2. Remove the stereo cassette radio. Refer to Stereo Cassette AM/FM Radio Removal.

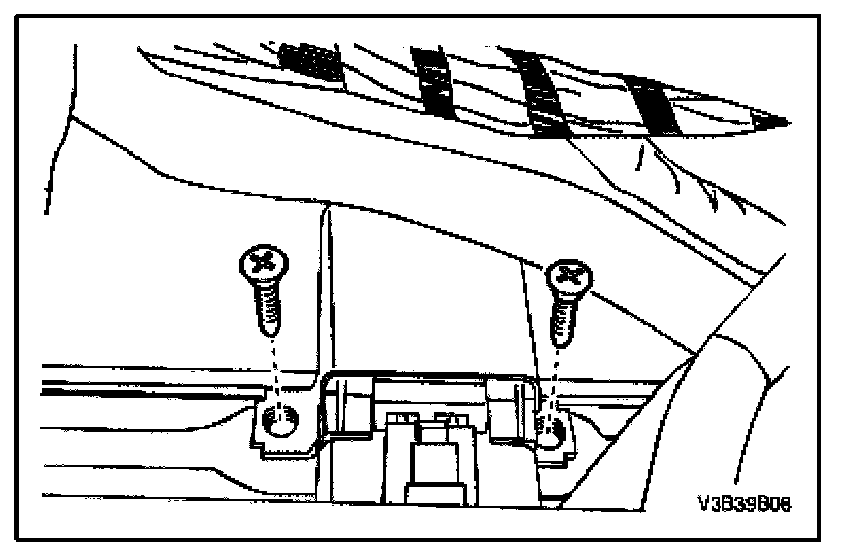

3. Remove the screws and the daytime running lamp module.




4. Disconnect the electrical connector.

Daytime Running Lamp Module Installation

1. Connect the electrical connector.

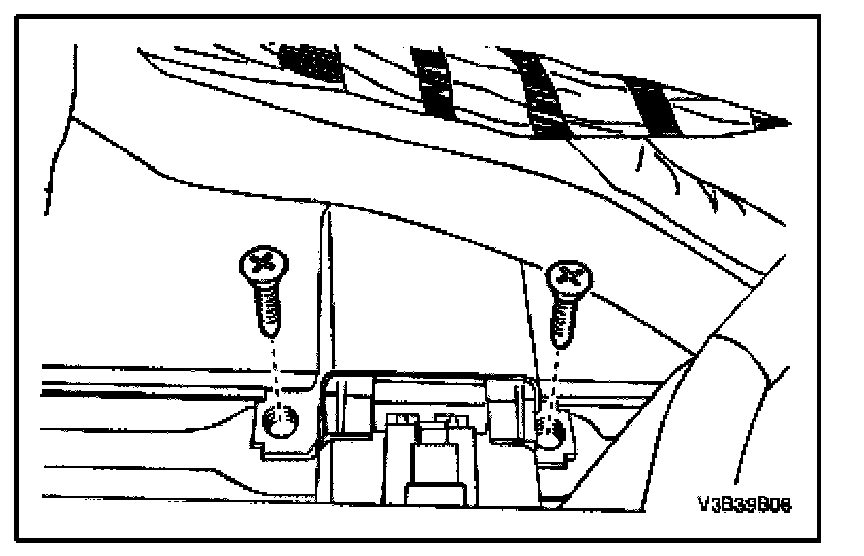

2. Install the daytime running lamp module with the screws.
3. Install the stereo cassette radio. Refer to Stereo Cassette AM/FM Radio Installation.




4. Connect the negative battery cable.
