Headlamp Alignment Switch: Service and Repair

Instrument Cluster Dimmer/Headlamp Leveling Switch Removal and Installation

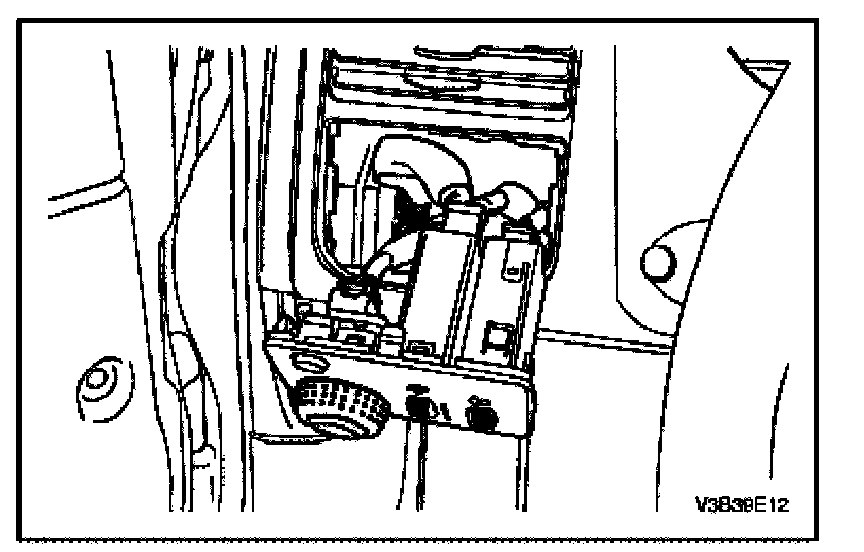

Instrument Cluster Dimmer/Headlamp Leveling Switch Removal

1. Remove the instrument cluster dimmer switch assembly.




2. Disconnect the electrical connectors.

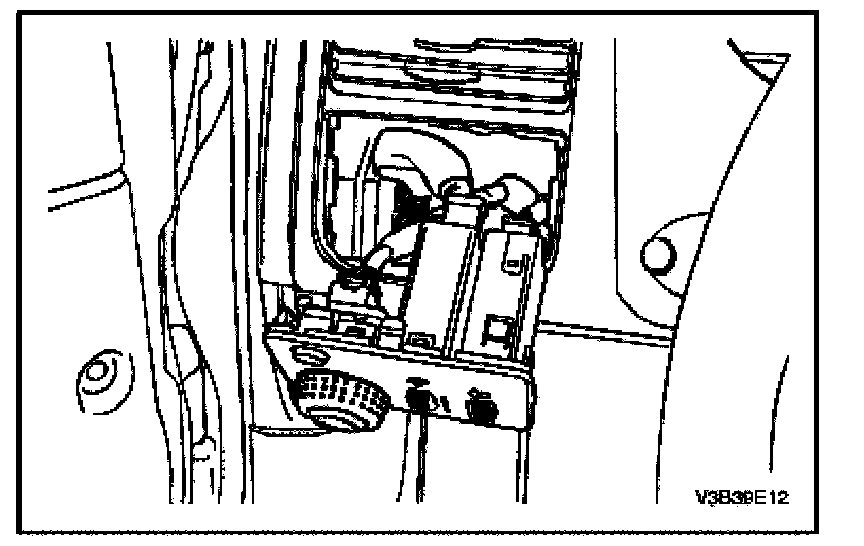

Instrument Cluster Dimmer/Headlamp Leveling Switch Installation

1. Replace the appropriate switch.
2. Connect the electrical connectors.




3. Install the instrument cluster dimmer/headlamp leveling switch assembly.
