Headlamp: Service and Repair

Headlamps Removal and Installation

Headlamps Removal

1. Disconnect the negative battery cable.

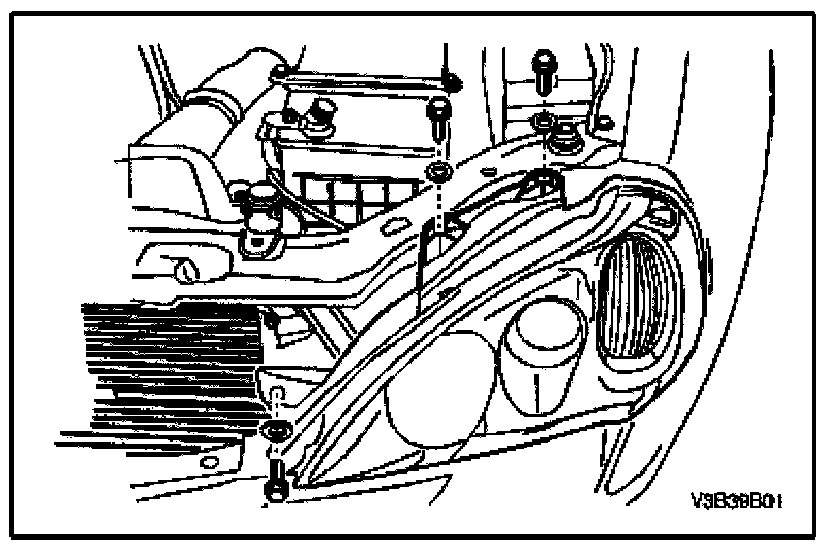

2. Remove the bolts and the headlamp assembly.

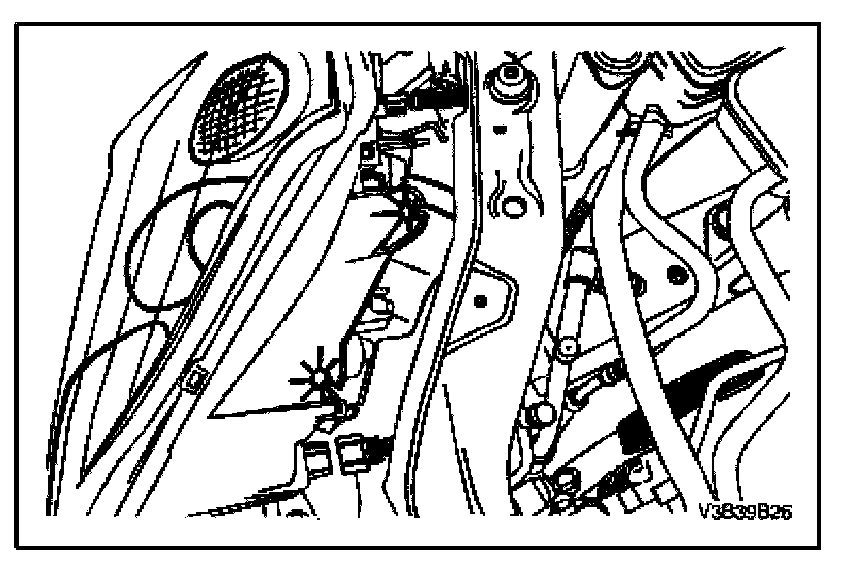

3. Disconnect the headlamp assembly electrical connectors.

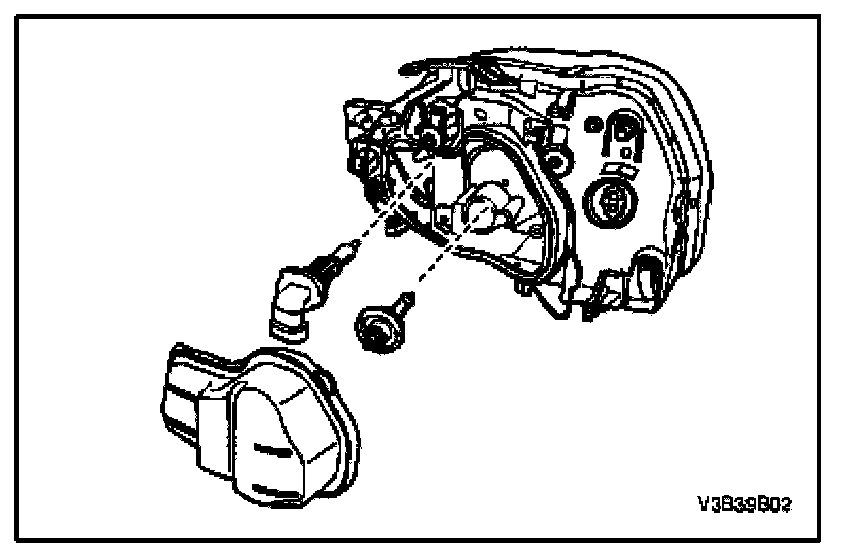

4. Remove the cap that conceals the headlamp bulb.
5. Disconnect the headlamp bulb electrical connectors.




6. Remove the headlamp bulbs.

Headlamps Installation

1. Install the headlamp bulbs.

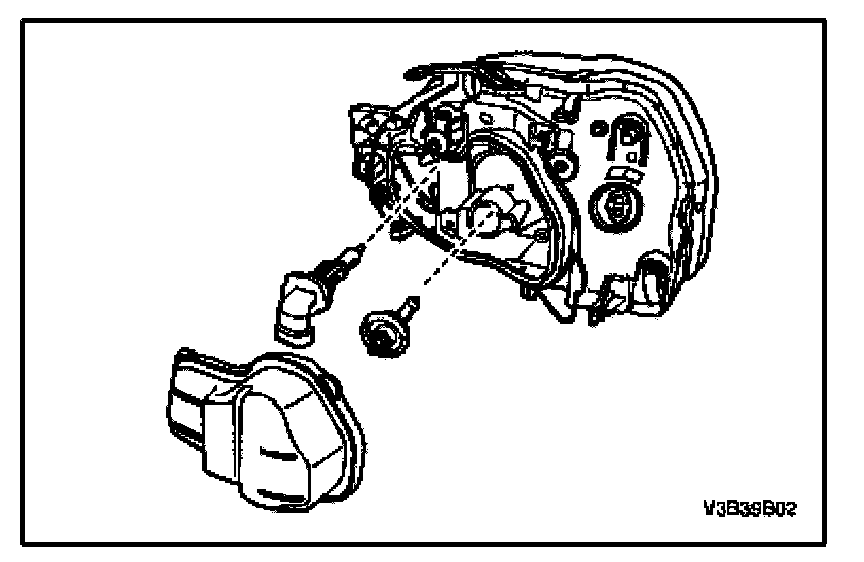

2. Connect the headlamp bulb electrical connectors.




3. Install the cap that conceals the headlamp bulbs.

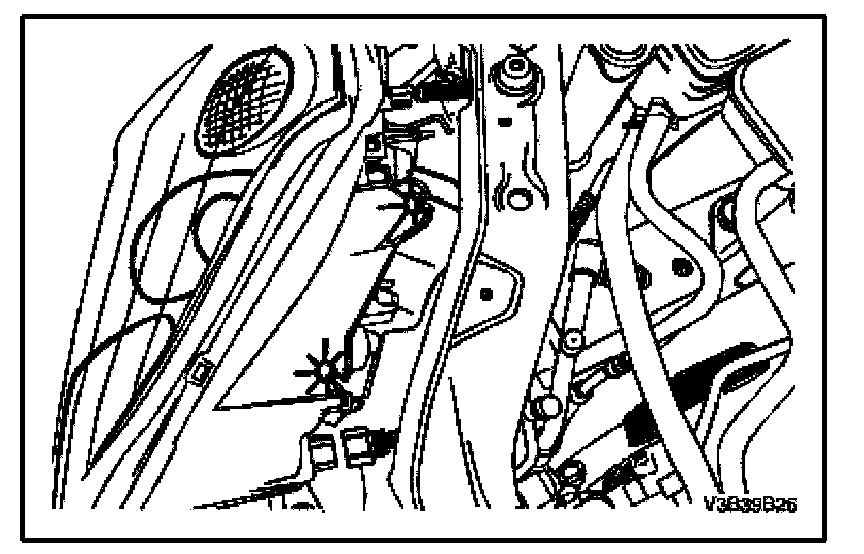

4. Connect the headlamp assembly electrical connectors.

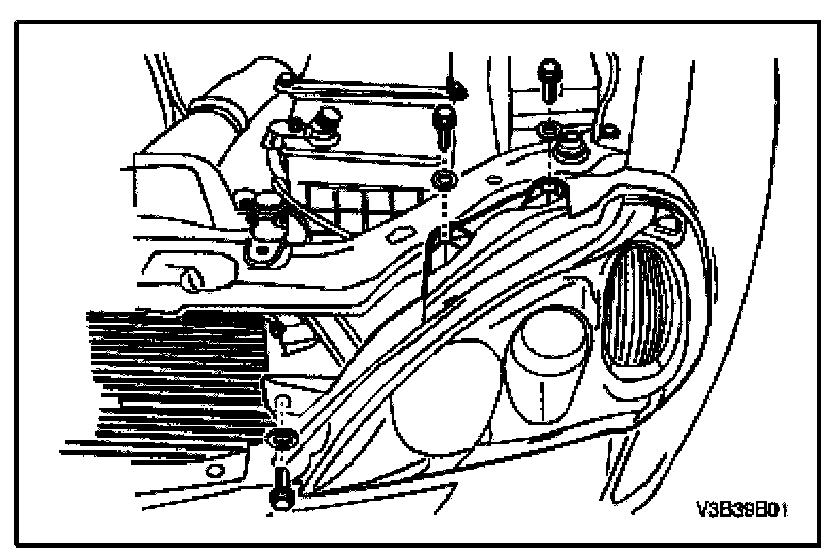

5. Install the headlamp assembly with the bolts.




6. Connect the negative battery cable.
