Horn: Service and Repair

Dual Horns Removal and Installation

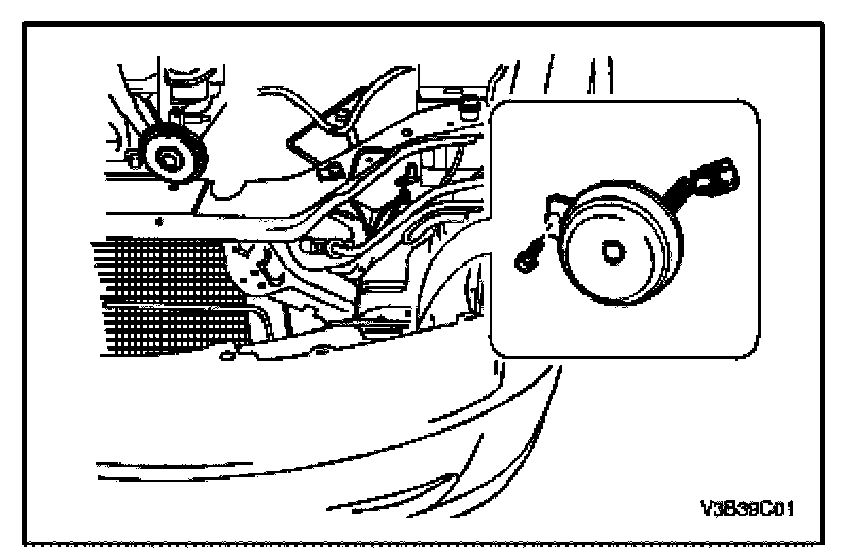

Dual Horns Removal

1. Disconnect the negative battery cable.
2. Disconnect the electrical connector.




3. Remove the bolt and the horn.

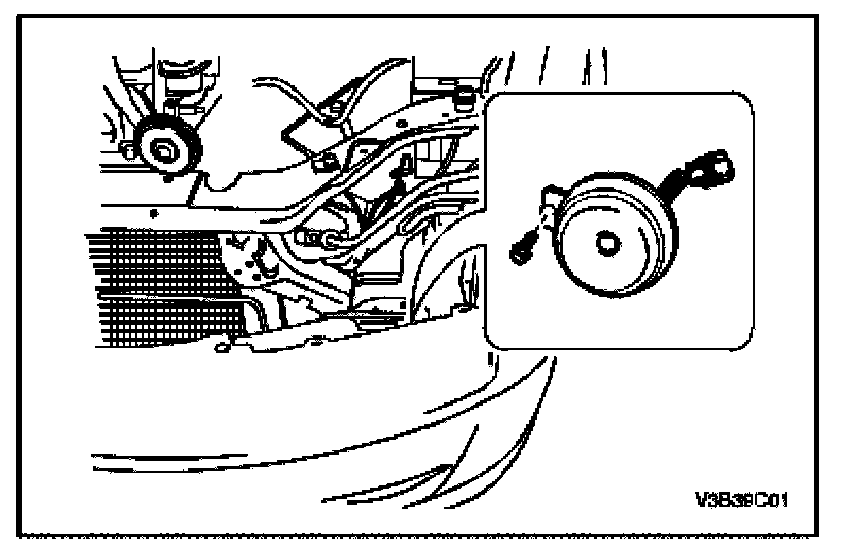

Dual Horns Installation

CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

1. Install the horn with the bolt.

Tighten:
Tighten the horn bolt to 20 N.m (15 lb.in).

2. Connect the electrical connector.




3. Connect the negative battery cable.
